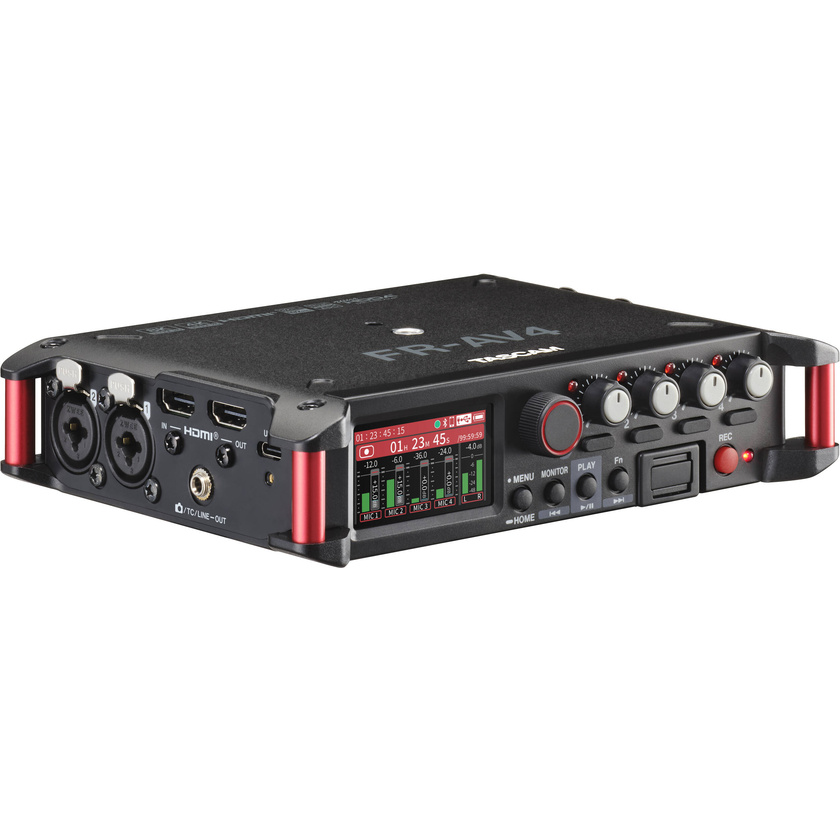

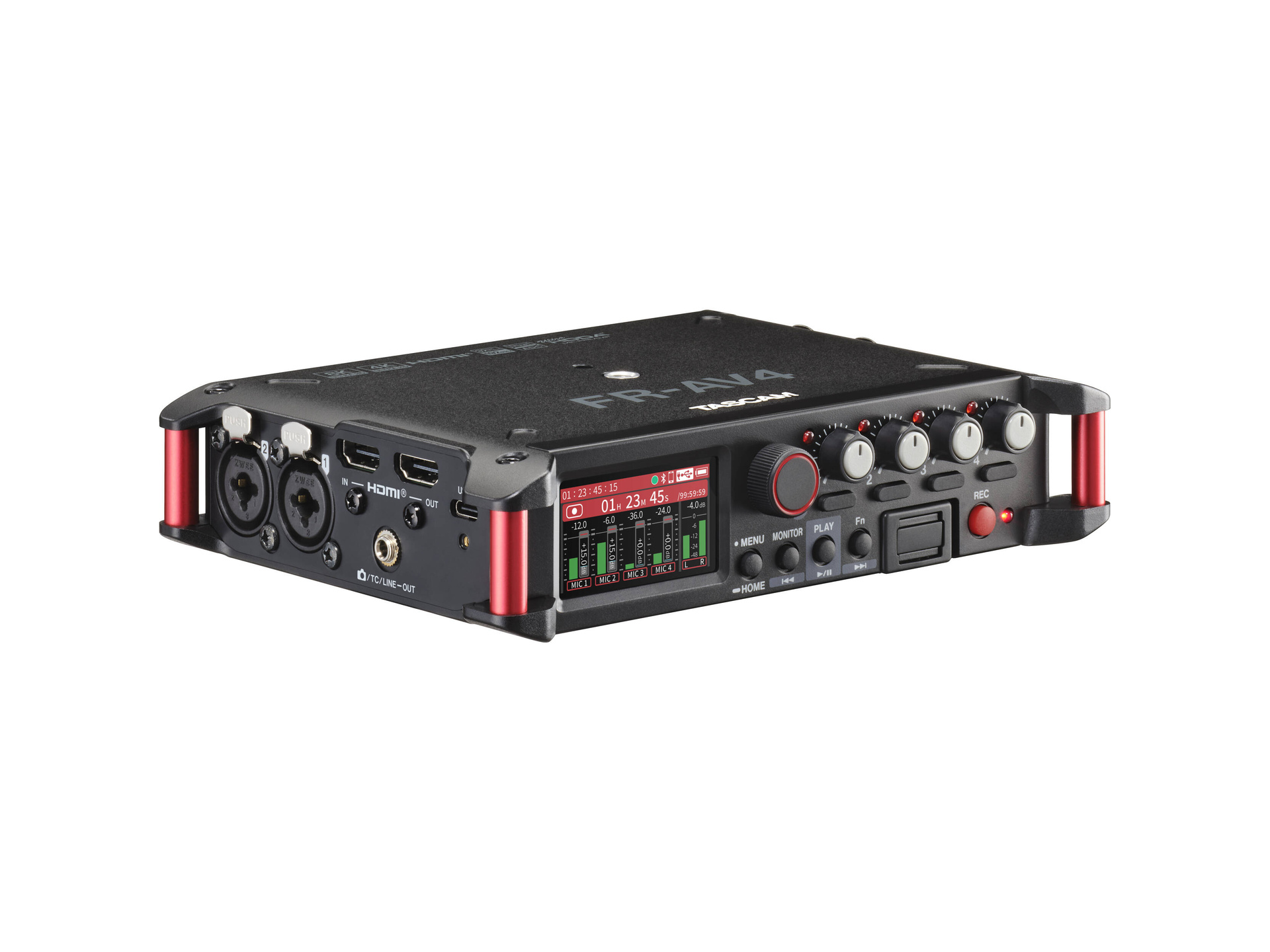

The TASCAM FR-AV4 4-Channel 32-Bit Float Field Recorder with Mixer, Timecode, and HDMI Sync brings production-grade audio to modern camera rigs with a slim, aluminium chassis that’s easy to mount and tough enough for demanding location work. A dedicated camera screw mount speeds up setup, while quick-swap BH-4AA battery trays, USB bus power, or an optional AC adapter keep shoots running—from run-and-gun coverage to all-day studio sessions. A 1.9" colour touchscreen and jog wheel provide fast access to routing, metadata, and file management, even when you’re on the move. Locked HDMI and USB ports help prevent accidental disconnection, giving you confidence in the field.
TASCAM FR-AV4 4-Channel 32-Bit Float Field Recorder with Mixer, Timecode, and HDMI Sync
In stock Ships Monday
Our Price
$1,789
In stock Ships Monday
this item may be nonreturnable
Shipping & Availability
Ships Monday.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- Location Recording and Production Sound
- 32-Bit Float, Built-In Auto Mixer
- 4 XLR/TRS Inputs, Ultralow-Noise Preamps
- Record 4 Input Channels Plus Stereo Mix
- 133 dB Dynamic Range, Dual Convertors
- Wireless Control/Monitoring with AK-BT2
Description
Specifications
| Form Factor | Field Recorder |
| Primary Use Applications | Audio-for-Video |
| Number of Input Channels | 4 |
| Number of Microphone Inputs | 5 |
| Number of Tracks | 6 (4 Inputs + Stereo Mix) |
| Maximum Sampling Rate | 192 kHz / 32-Bit Float |
| Display | Backlit LCD Touchscreen |
| Built-In Speaker | No |
| Special Features | Audio Mixing, Remote Control Capable, Slate Function |
| Microphone | |
| Microphone | No |
| Recording | |
| Audio File Formats | Ambisonics A, Ambisonics B (FuMa/AmbiX), BWF, WAV |
| Sample Rates | 48 to 192 kHz |
| Bit Depth | 24-Bit, 32-Bit Float |
| Audio Interface Capability | Multi-Track |
| Signal Processing & FX | Delay, AEQ, Limiter, Low-Cut Filter |
| Timecode | In & Out |
| Frame Rates Supported | 23.98 / 29.97 / 29.97 DF / 30 |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [512 GB Maximum] |
| Internal Storage | No |
| Connectivity | |
| Analogue Audio I/O | 4x Combo XLR-1/4" TRS Mic/Line Input 1x 1/8" / 3.5 mm TRS Line/Camera Input 1x 1/8" / 3.5 mm TRS Line/Camera Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Bias/Plug-In & Phantom Power | 2.5 to 5 V Bias/Plug-In Power 24 / 48 V Phantom Power |
| Digital Audio I/O | No |
| Network I/O | No |
| Sync I/O | 1x 1/8" / 3.5 mm TRS Timecode Input 1x 1/8" / 3.5 mm TRS Timecode Output 1x 1/8" / 3.5 mm TRS Timecode Output (Shared with Line Out) |
| USB | 1x USB-C |
| Wireless | Bluetooth *Via Optional Adapter |
| Mobile App Compatible | Yes: Android & iOS |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz (at 48 kHz) 20 Hz to 40 kHz (at 96 kHz) 20 Hz to 60 kHz (at 192 kHz) |
| Maximum Input Level | +4 dBu (Mic Input) +24 dBu (Line Input) |
| Headphone Output Power | 50 mW per Channel |
| SNR/Noise | ≤ 127 dB EIN |
| THD/Distortion | ≤ 0.1% THD+N (Headphone Output) |
| Dynamic Range | 133 dB |
| Power | |
| Power Options | Battery, USB Bus Power, AC/DC Power Adapter |
| Battery Type | 4x AA |
| AC/DC Power Adapter | 5 VDC at 2 A (Not Included) |
| Physical | |
| Mounting Options | 1/4"-20 Female |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Dimensions | 7.2 x 1.7 x 5.1" / 184 x 42 x 130 mm |
| Weight | 1.5 lb / 660 g (without Batteries) 1.7 lb / 756 g (with Batteries) |
In The Box
- TASCAM FR-AV4 4-Channel 32-Bit Float Field Recorder with Mixer, Timecode, and HDMI Sync
- TASCAM BH-4AA Battery Holder for FR-AV4
