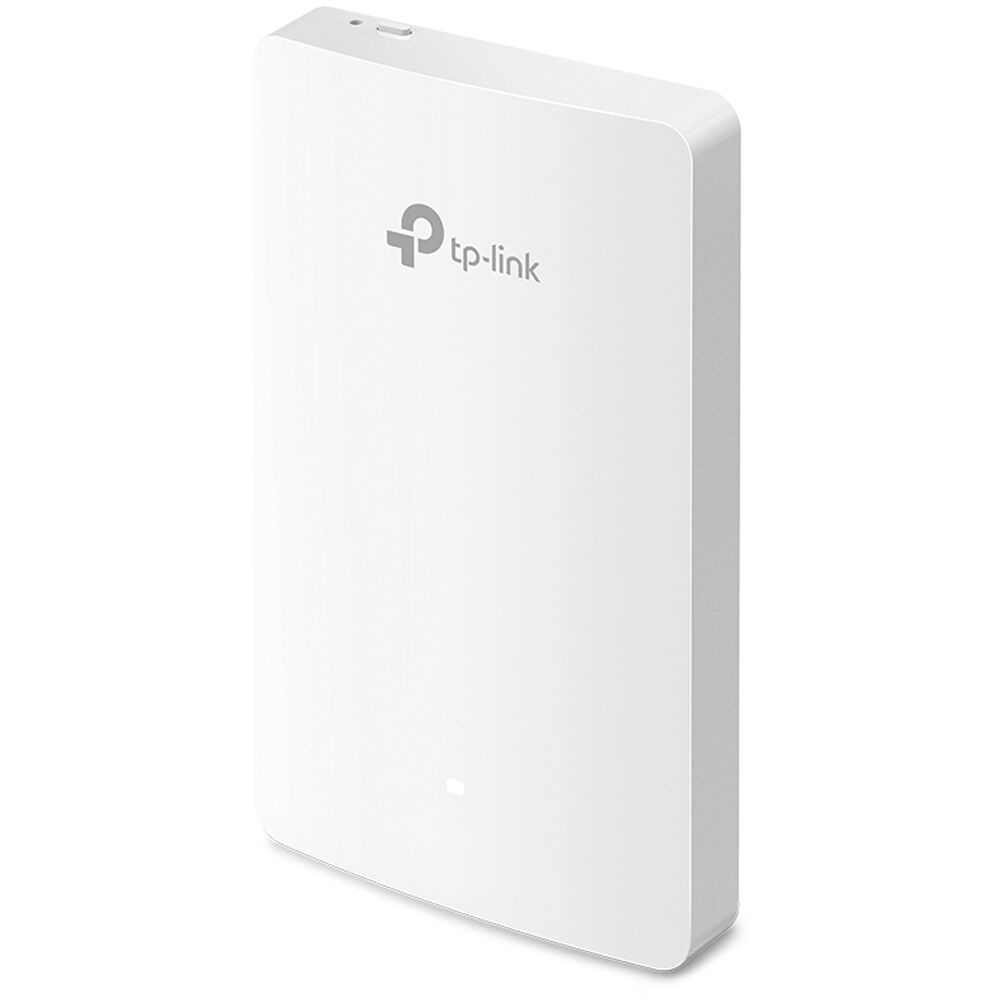

TP-Link EAP235-Wall Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point

Product #107354 | SKU TL-EAP235-WALL | TP-Link
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $129
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $4.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • IEEE 802.11ac/n/g/b/a Network Standards
  • Up to 1167 Mb/s Throughput
  • 2.4 GHz / 5 GHz Dual-Band Frequencies
  • 2 x Dual-Band Antennas
  • 3 x 1000M Access Ethernet Ports
  • 1 x 1000M Uplink Ethernet Port

Description

A TP-Link EAP235-Wall Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room. With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary. Equipped with four Gigabit data ports (1uplink + 3downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Specifications

Wireless
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
Number of Antennas 2
Antenna Gain 8 dBi
Transmit Power 21 dBm
Supported Protocols SNMPv1
SNMPv2c
SSID
Antenna Placement Internal
Bluetooth None
Throughput 1167 Mb/s Total
5 GHz: 867 Mb/s
2.4 GHz: 300 Mb/s
Interface
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Pass-Through) PoE
USB Sharing Support No
Security
Wireless Security WEP 128, WEP 152, WEP 64, WPA, WPA-PSK, WPA2, WPA2-PSK
Lock Slot Yes
Management
Operation Modes Access Point
Max SSIDs Supported 16
Hardware
Storage Capacity None
Electrical
Power Consumption ≤24.4 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90%
Storage Humidity 5 to 90%
General
Environmental Protection None
Mount Options Wall
Dimensions 5.6 x 3.4 x 0.8" / 143 x 86 x 20 mm

In The Box

  • TP-Link EAP235-Wall Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point
  • Mounting Screw
