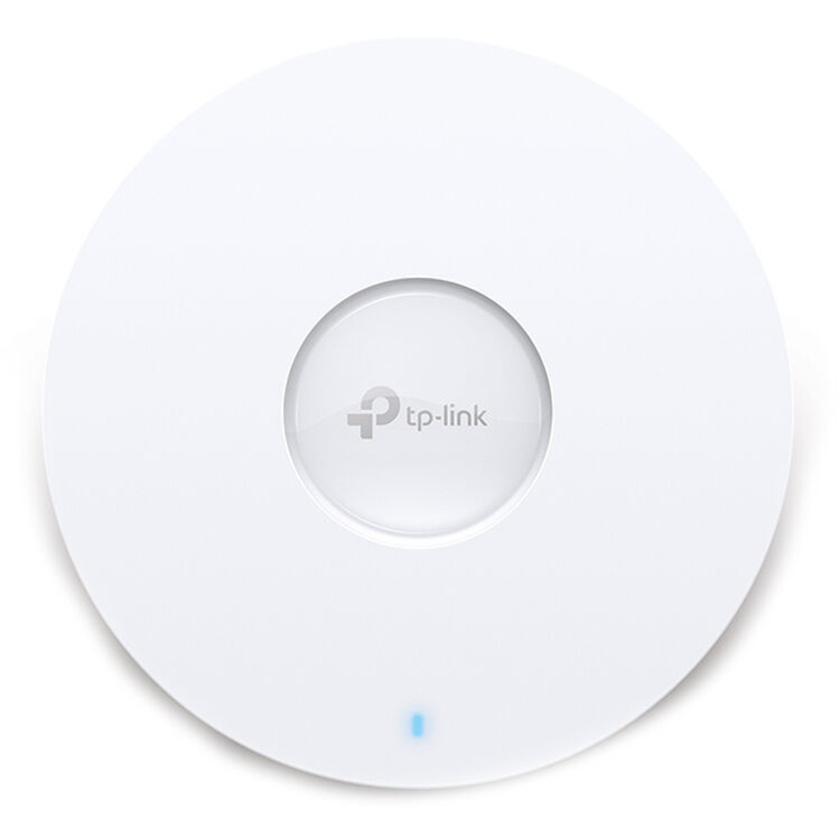

TP-Link EAP620 HD V3 AX1800 Wireless Dual-Band Gigabit Access Point

Product #107633 | SKU TL-EAP620HD | TP-Link
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $299
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • Wi-Fi 6 (802.11ax)
  • Up to 1775 Mb/s Throughput
  • 2.4 GHz / 5 GHz (Dual-Band)
  • 2 x Internal Antennas
  • 1 x Gigabit Ethernet Port
  • 802.3at & Passive PoE Support

Description

The TP-Link EAP620 HD V3 AX1800 Wireless Dual-Band Gigabit Access Point OFDMA and MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 4 spatial streams, multi-user throughput is incredibly increased to drive more applications.

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighbouring APs in the same network.

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving△. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP620 HD perfectly blend into any modern office, hotel, classroom, or café.

Specifications

Wireless
Wi-Fi Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
Number of Antennas 2
Antenna Gain 4 to 5 dBi
Transmit Power 20 to 25 dBm
Supported Protocols SNMPv1
SNMPv2c
SNMPv3
SSID
Antenna Placement Internal
Bluetooth None
Throughput 1800 Mb/s Total
5 GHz: 1201 Mb/s
2.4 GHz: 574 Mb/s
Interface
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
USB Sharing Support No
Security
Guest Network Support Yes
Wireless Security WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
Lock Slot No
Management
Operation Modes Access Point
Max SSIDs Supported 16
Hardware
Supported IEEE Standards 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11k, 802.11n, 802.11v, 802.1x, 802.3at
Electrical
Power Consumption ≤14.9 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90%
Storage Humidity 5 to 90%
General
Environmental Protection None
Mount Options Wall, Ceiling
Dimensions 6.3 x 6.3 x 1.3" / 160 x 160 x 33.6 mm

In The Box

  • TP-Link EAP620 HD V3 AX1800 Wireless Dual-Band Gigabit Access Point
  • Power Adapter
  • Ceiling & Wall Mounts
