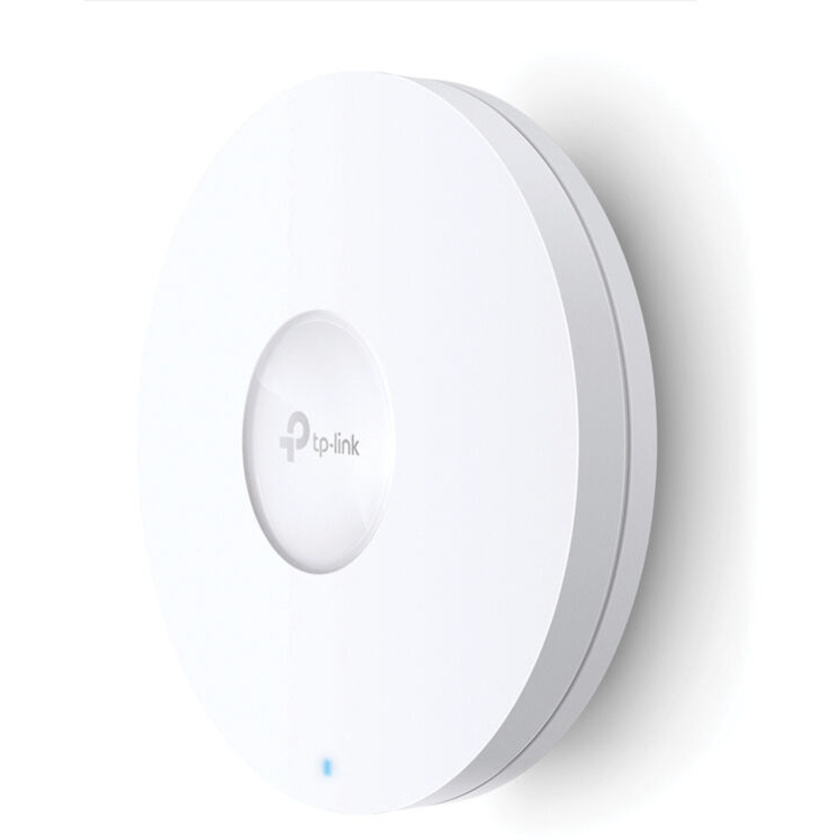

TP-Link EAP660 HD AX3600 Wireless Dual-Band 2.5 Gigabit Access Point

Product #107306 | SKU TL-EAP660HD | TP-Link
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $479
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • Wi-Fi 6 (802.11ax)
  • Up to 3550 Mb/s Throughput
  • 2.4 GHz / 5 GHz (Dual-Band)
  • 4 x Internal Antennas
  • 1 x PoE-Compliant 2.5G Ethernet Port
  • Wall & Ceiling Mountable

Description

The TP-Link EAP660 HD AX3600 Wireless Dual-Band 2.5 Gigabit Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorised guests to use the network. The addition of SMS authentication simplifies the captive portal even further to simplify connectivity and power up your business.

Specifications

Wireless
Wi-Fi Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4)
Number of Antennas 4
Antenna Gain 4 to 5 dBi
Transmit Power 26 dBm
Supported Protocols SNMPv1
SNMPv2c
SNMPv3
SSID
Antenna Placement Internal
Bluetooth None
Throughput 3550 Mb/s Total
5 GHz: 2402 Mb/s
2.4 GHz: 1148 Mb/s
Interface
Inputs/Outputs 1 x 2.5 Gb/s Ethernet (RJ45) PoE
USB Sharing Support No
Security
Guest Network Support Yes
Wireless Security WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
Lock Slot No
Management
Operation Modes Access Point
Max SSIDs Supported 16
Hardware
Supported IEEE Standards 802.11ac, 802.11ax, 802.11a, 802.11b, 802.11g, 802.11k, 802.11n, 802.11v, 802.1x, 802.3at
Electrical
Power Consumption 21.5 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90%
Storage Humidity 5 to 90%
General
Environmental Protection None
Mount Options Wall, Ceiling
Dimensions 9.6 x 9.6 x 2.5" / 243 x 243 x 64 mm

In The Box

  • TP-Link EAP660 HD AX3600 Wireless Dual-Band 2.5 Gigabit Access Point
  • Power Adapter
  • Ceiling & Wall Mounts

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: TP-Link EAP660 HD AX3600 Wireless Dual-Band 2.5 Gigabit Access Point
  • Manufacturer: TP-Link
  • Model: TL-EAP660HD
  • SKU: TL-EAP660HD
  • RM Product #: 107306
