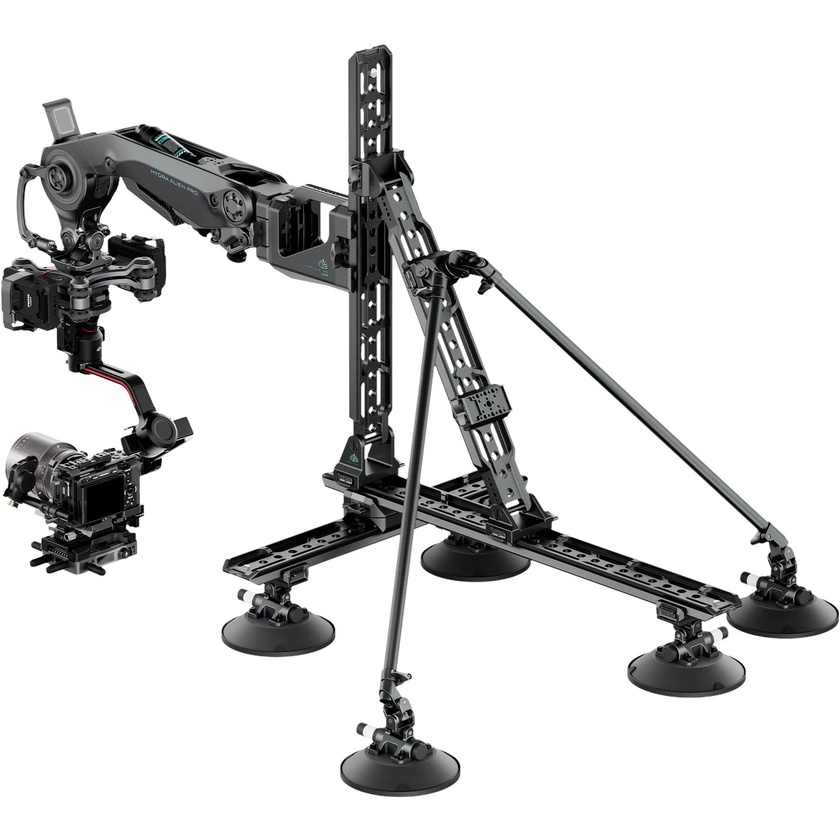

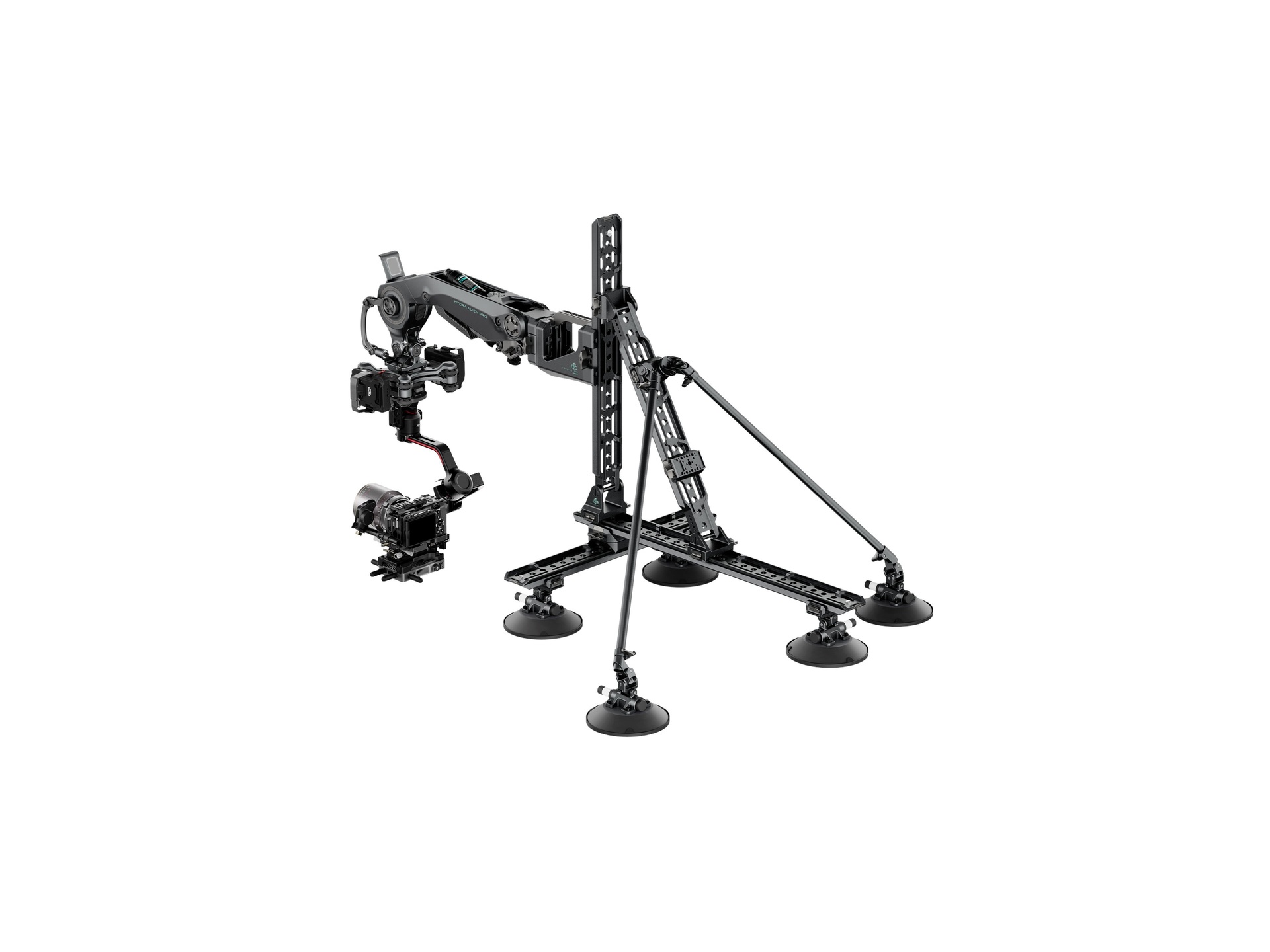

Tilta Hydra Alien Pro Car Mounting System

Product #118744 | SKU HDA-T18-V | Tilta
Usually ships in 2 - 4 weeks what does this mean?
Our Price $4,995
Usually ships in 2 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 4 weeks. Deliver to Auckland for $78 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 4 weeks
Click & Collect

Features

  • 13kg payload
  • Electronic damping
  • Swappable shock absorbers
  • Universal design
  • Gimbal ready

Description

The Tilta Hydra Alien Pro Car Mounting System is a next generation gimbal support solution for car-mounted cinematography and is one of the most accessible and innovative Car Mounting Solutions for RS4 Pro to Ronin 2, starting from $1799 for Pre Order.

The system utilizes a highly customisable combination of dovetail-like plates and suction cups that allows users to fine-tune the exact placement of their shot to achieve almost any angle possible when mounting to a vehicle.

The newly designed dovetail plates feature retractable safety pins at every position which the arm can be mounted. This drastically improves the safety of the system, especially when adjusting the position of the arm via a new sliding design which makes small adjustments quick and easy.

The newly designed shock absorbing arm supports higher payloads up to 28.7lbs and features a motorised shock absorbing head which provides greater stability and uses motors to help stabilize the system similar to a gimbal.

When paired with the optional Nucleus Nano 2 Control Handle, the damping of the shock absorbing head can be adjusted remotely which makes this ideal for fast paced environments and provides the opportunity to fine tune damping settings as road conditions change in real time.

When paired with a lightweight gimbal, this creates an incredibly smooth image while being more user friendly when compared to traditional systems. This innovative system greatly expands possibilities for both entry level and experienced users who may not have the full budget needed for more traditional vehicle mounted rigs.

Optional accessories like the electronic suction cups and our dovetail mounting kit are great options for expanding the functionality of this system.

In The Box

  1. Shock Absorbing Arm for Hydra Alien Pro(12010.00017.00.00)
  2. Shock Absorbing Head for Hydra Alien Pro(HDA-T18-SAH)
  3. DJl Ronin 2 Mount Adapter for Hydra Alien Pro(HDA-T18-MA-R2)
  4. Power Supply Base Plate for DJI Ronin(TGA-PBP)*
  5. 2x Power Module for Hydra Alien Pro – V Mount(HDA-T18-PM-V
  6. Lightweight Swappable Shock Absorber Kit for Hydra Alien Pro(HDA-T18-LSK)*1 Set(1 Set with 8 Pcs)
  7. x8 220g Counterweight(TGA-CW-220
  8. Tool Kit
  9. Security Rope(37104.00035.00.00)
  10. 1/4 Ring Screw(32110.00514.00.00)
  11. RED DSMC2 Power to PTAP Cable(TCB-RD2-PTAP)
  12. 2-Pin Lemo to 2-Pin Lemo Cable,Length 60cm(TCB-2LE-2LE-17)
  13. Dovetail Plates for Hydra Alien Pro(HDA-T18-DP)
  14. Dovetail Accessory Mounting Plate for Hydra Alien Pro(HDA-T18-DAM)
  15. 3X Suction Cup with Dovetail Mount (6″)(21110.00144.00.00
  16. 2X Suction Cup with 19mm Rod Mount (6″)(21110.00145.00.00
  17. 2X Tilta 19mm Aluminum Alloy Rod (60cm)(60cm)(TA-19R-AA-60)
  18. Dovetail to 19mm Rod Mount Adapter for Hydra Alien Pro(HDA-T18-DMA )
  19. Dovetail Extension Bracket for Hydra Alien Pro(HDA-T18-DEB)
  20. Safety Belt-Black(37104.00036.00.00)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Tilta Hydra Alien Pro Car Mounting System
  • Manufacturer: Tilta
  • Model: HDA-T18-V
  • SKU: HDA-T18-V
  • RM Product #: 118744
  • Warranty: 1 year manufacturer warranty for all electronic parts, 30 day warranty for cables.
