The ceiling-mounted Ubiquiti Networks UniFi U7 Pro Tri-Band Wi-Fi 7 Access Point with 6 spatial streams provides interference-free connectivity in demanding, large-scale environments. This advanced access point supports WiFi 7 technology, offering superior performance with 6 spatial streams. With a coverage area of 140 m² (1,500 ft²) and the ability to support over 300 connected devices, this AP is ideal for high-density areas. Additionally, it is powered using PoE+ for easy installation and maintenance, and features a 2.5 GbE uplink for faster data transfer speeds.

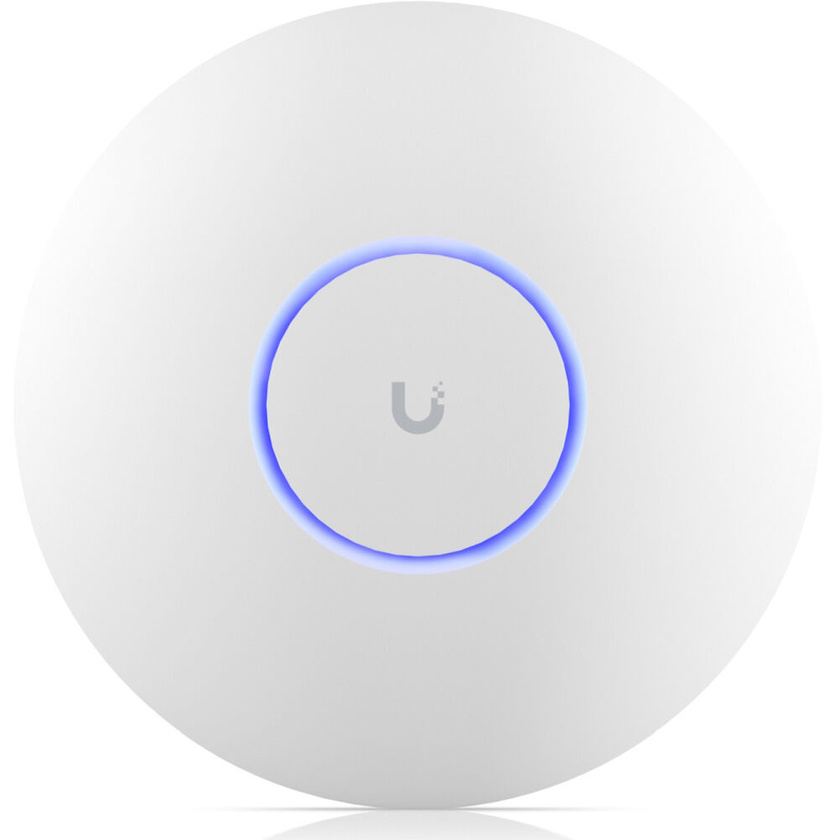

Ubiquiti Networks UniFi U7 Pro Tri-Band Wi-Fi 7 Access Point
In Stock with Supplier Usually ships in 2 - 3 working days
Our Price
$417.98
In Stock with Supplier Usually ships in 2 - 3 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
Auckland
for $12
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- Wi-Fi 7 (802.11be)
- Up to 9335 Mb/s Total Throughput
- 2.4 GHz / 5 GHz / 6 GHz (Tri-Band)
- 1 x 2.5G Ethernet PoE+ Port
- Supports over 300 Concurrent Clients
- Guest Traffic Isolation
Description
Specifications
| Mechanical | |
| Dimensions | Ø206 x 46 mm (Ø8.1 x 1.8") |
| Weight | 680 g (1.5 lb) |
| Enclosure material | Polycarbonate, metal |
| Mount material | Stainless steel (SUS304), galvanized steel (SGCC) |
| Hardware | |
| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE+ |
| Power supply | UniFi PoE switch |
| Supported voltage range | 44-57V DC |
| Max. power consumption | 21W |
| Max. TX power | 2.4 GHz 22 dBm 5 GHz 26 dBm 6 GHz 23 dBm |
| MIMO | 2.4 GHz 2 x 2 5 GHz 2 x 2 6 GHz 2 x 2 |
| Throughput rate | 2.4 GHz 688 Mbps 5 GHz 2882 Mbps 6 GHz 5765 Mbps |
| Antenna gain | 2.4 GHz 4 dBi 5 GHz 6 dBi 6 GHz 5.8 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Application Requirements | |
| UniFi Network | Version 8.0.26 and later |
| UniFi OS | Version 3.2 and later |
In The Box
- Ubiquiti Networks UniFi U7 Pro Tri-Band Wi-Fi 7 Access Point
- Wall / Ceiling Mounting Kit
