Achieve broadcast quality, easily

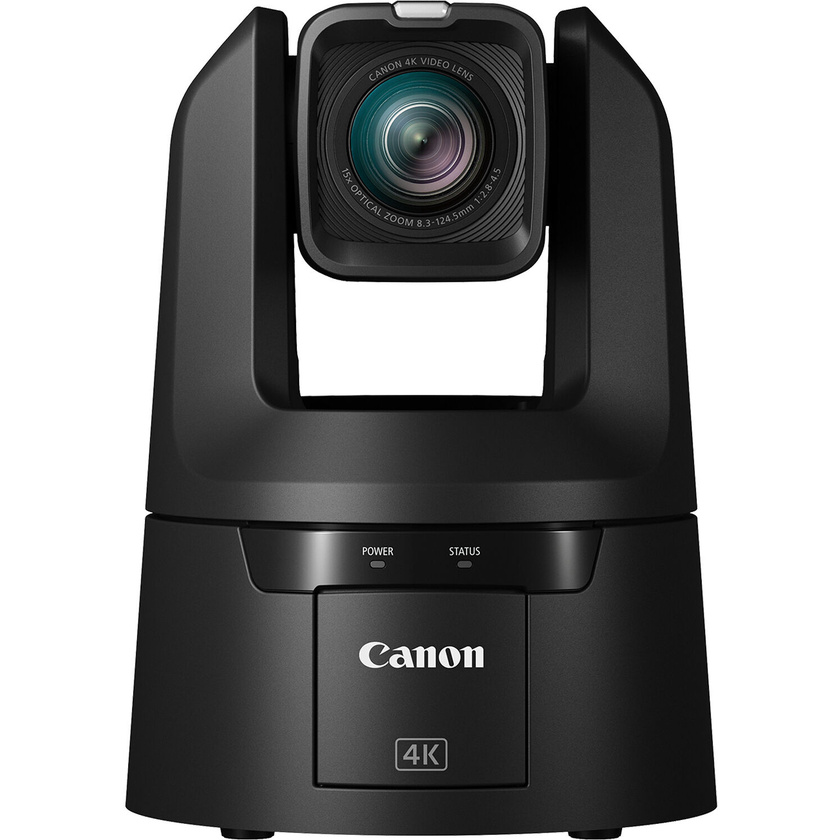

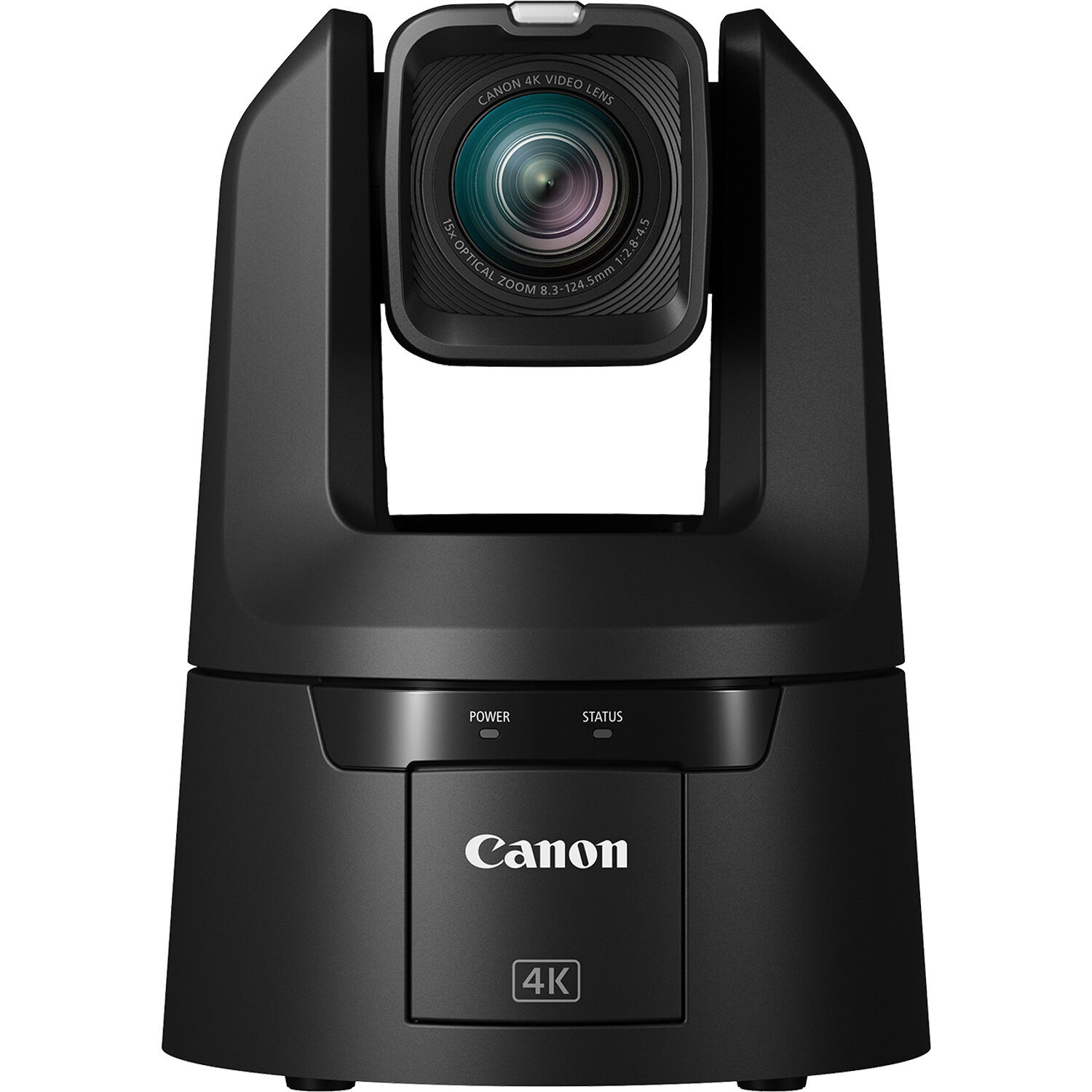

To meet the demands of broadcasters, the new Canon CR-N700 4K PTZ Camera with 15x Zoom features a 1.0 Type CMOS sensor and DIGIC DV7 processor to deliver exceptional 4K UHD 60P 4:2:2 10-bit imagery, for truly immersive content. Capable of high-quality transmission, Canon’s newest PTZ camera allows content creators to stream 4K 60P over IP – perfect for remote and live broadcast productions. This superior image quality is also the result of the high-performance lens, which has a 15x optical zoom and a 30x advanced zoom when shooting in Full HD. When coupled with Canon’s renowned Image Stabiliser, broadcasters can capture smooth, steady footage even from a distance. This is ideal for shooting reality TV shows or even sports, when camera operators want to discreetly zoom in on the action. The CR-N700 also features a Night Mode, allowing operators to capture footage in near darkness thanks to an in-built IR cut filter. Along with the HDR formats in PQ or HLG, broadcasters can capture exceptional footage in any lighting environments.

The CR-N700 is also equipped with fast, intelligent and extremely accurate focusing thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X. This autofocus locks onto a subject’s head, to track them as they move and even when they turn their face away. Eye Detection AF locks onto the subject’s pupil for even greater precision, while the Face Priority AF allows operators to prioritise a specific individual. This is ideal for scenarios where it’s imperative to stay locked onto the anchor throughout.

Superior connectivity, simple workflows

As with Canon’s entire range of PTZ cameras, the CR-N700 supports multiple protocols to integrate with existing workflows. Designed to fit into the diverse production ecosystems of broadcasters, the CR-N700 features SRT and NDI|HX1 protocols for high quality 4K video streams, while FreeD enables integration with virtual productions. Broadcasters can easily create multi-camera set ups that meet their needs with these protocols and with Canon’s XC protocol it is possible to integrate the CR-N700 alongside other Canon Cinema EOS cameras such as the EOS C500 Mark II, EOS C300 Mark III or professional camcorders including the XF6052 for a truly versatile set-up. It’s even possible to match select cameras’ look with Canon Log 3 and Wide Dynamic Range picture settings.

The flexible connectivity options include 12G-SDI and 3G-SDI, HDMI or IP (PoE++) which allow the easy transmission of 4K60P for high-quality consistent broadcasts. The CR-N700 also includes professional dual XLR audio inputs and GEN-LOCK, for different production needs.

Enhanced control

Canon’s latest PTZ camera offers the same intuitive control as other models in Canon’s PTZ range. The advanced drive mechanism enables movements as slow and precise as 0.1° /second meaning operators can capture cinematic shots. Compatible with both Canon’s RC-IP100 controller and Remote Camera Control Application controllers, as well as selected third-party controllers which can be purchased separately, this further simplifies integration with existing production set-ups. With the CR-N700’s crop function, broadcasters can take two separate feeds from a single PTZ camera. They can select a region of interest within the frame and output that as a separate feed in Full HD. This feature is perfect for productions with limited PTZ cameras on site.

Key Features:

• 4K/60P high image quality that supports high-level video production
• Outstanding 4K 60P image in 4:2:2 10bit
• High-precision Auto Focus (AF) and head detection AF
• Infrared (IR) mode
• Expanded protocol support
