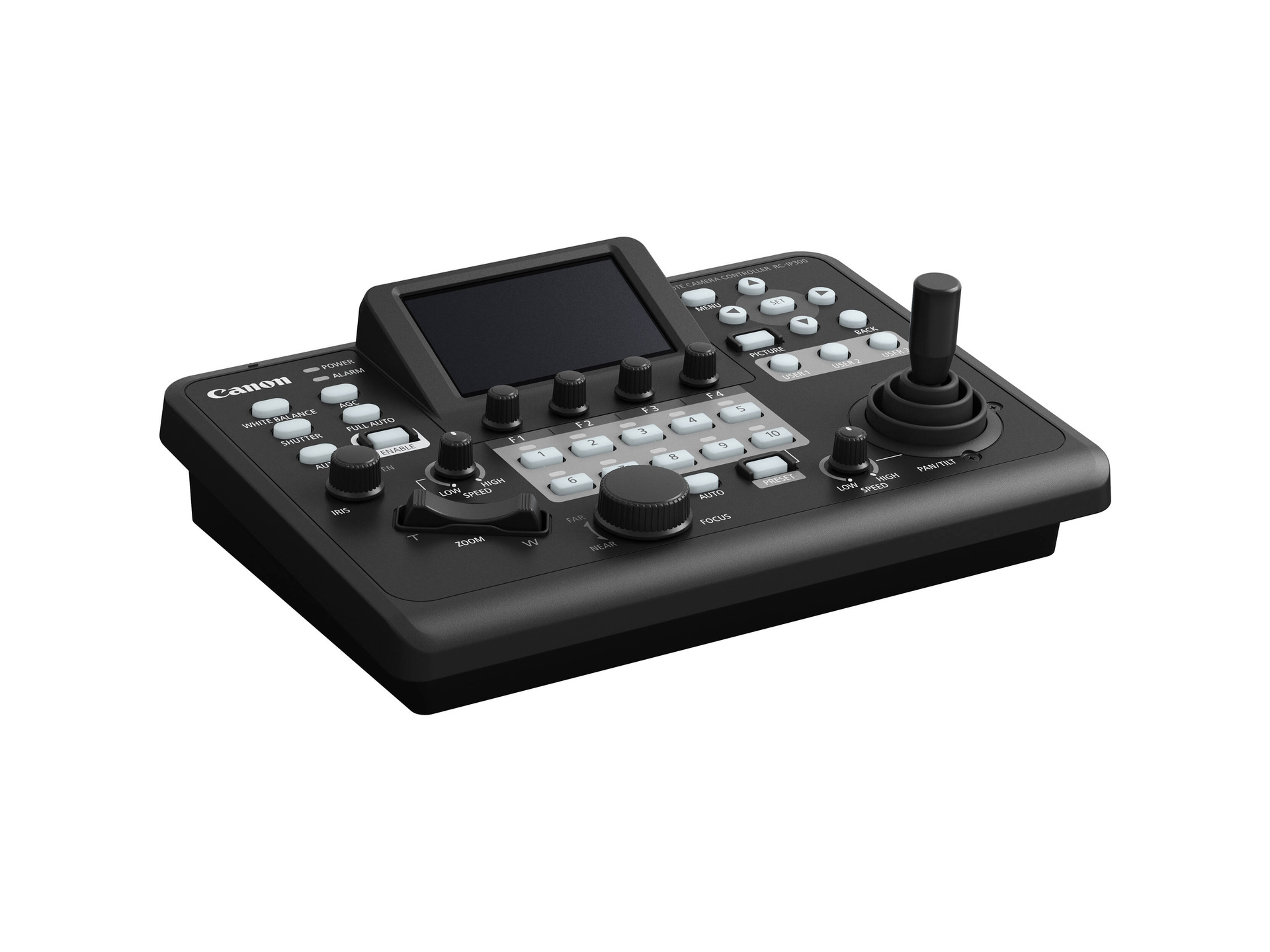

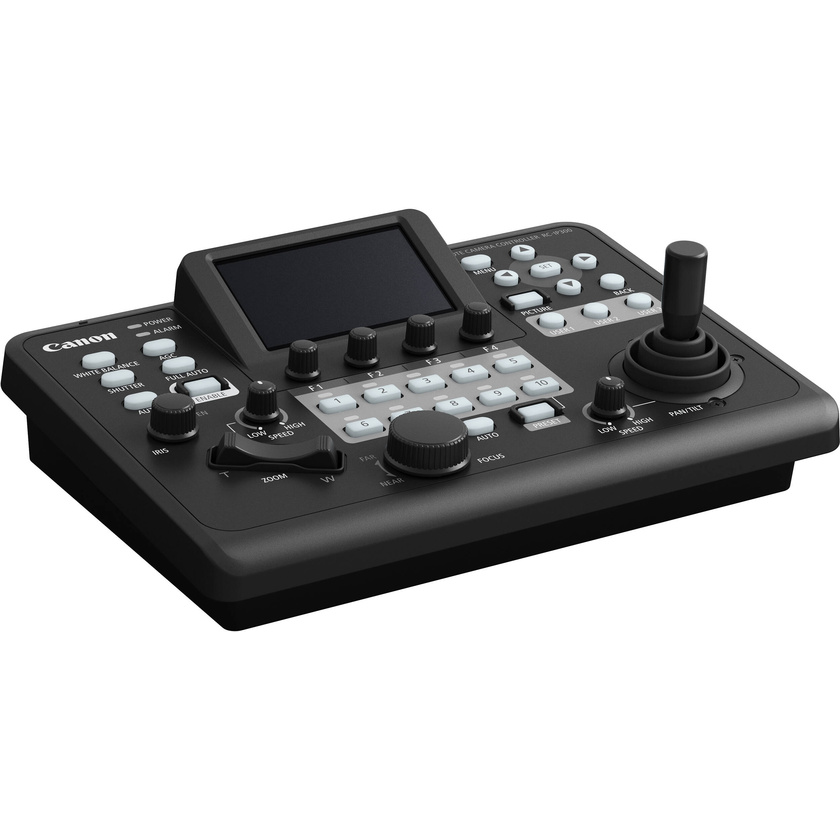

Canon RC-IP300 PTZ Camera Controller

Name: Canon RC-IP300 PTZ Camera Controller
Brand: Canon
SKU: 125395

Product #125395 | SKU 7657C002 | Canon

| Write a review

Pre-Order ETA to be confirmed what does this mean?

Coming Soon...

A deposit of $100.00 is required for this pre-order.

Pre-Order ETA to be confirmed what does this mean?

Email me when stock arrives

Talk to our experts

Shipping & Availability

ETA to be confirmed. Deliver to Auckland for $12 Change location

Click & Collect

Check availability

Features

Control up to 200 PTZ Cameras via IP
3.5" Touchscreen Control-Panel Display
RS-422 Serial and Canon XC, NU Protocols
Supports Autofocus, Tracking, and Loop
7 Knobs, 12 Buttons, 100 Presets
Precision Pan/Tilt Joystick, Zoom Rocker

Description Specifications In The Box

Description

Canon

RC-IP300

PTZ Camera Controller

The Canon RC-IP300 PTZ Camera Controller offers rapid, tactile IP control for as many as 200 supported Canon PTZ cameras, making it an ideal solution for managing extensive multi-camera setups. This compact controller is equipped with a 3.5" touchscreen display, which delivers on-screen display (OSD) menus for compatible cameras, allows users to adjust camera configurations, view live video, and utilize convenient touch autofocus. The RC-IP300 can be powered via PoE (Power over Ethernet) for streamlined setup or with the included power supply, ensuring flexible installation options for a variety of environments.

Features

Provides quick, tactile IP control for up to 200 Canon PTZ cameras.
Compact design with an intuitive 3.5" touchscreen display.
OSD menus for camera configuration, live view, and touch autofocus.
Flexible power options: PoE or included power supply.
Supports seamless integration into diverse production environments.

Specifications


General
Number of Supported Cameras	200 Channels via IP (10 Per Group) 1 Channels via Serial
Supported Control Protocols	Canon XC NU RS-422
Control I/O	1x RJ45 (IP Control, LAN) Output 1x RJ45 (RS-422) Output
Other I/O	1x DE-9/DB-9 (GPI) Input/Output 1x USB-A Input/Output
Video I/O	1x RJ45 Input
Controls	1x Pan/Tilt Joystick 1x Zoom Rocker 7x Programmable Knobs 10x Camera Selection Buttons 12x Multifunction Buttons
Presets	100 via IP
Display
Panel Type	LCD
Size	3.5"
Native Resolution	1280 x 720
Touchscreen	Yes
Power
PoE Support	Yes: PoE+ 802.3at
Power Consumption	12.4 W
Input Power	12 VDC
Physical
Operating Conditions	32 to 72°F / 0 to 40°C
Security Lock Support	No
Dimensions	10 x 7.1 x 2.9" / 255 x 180 x 74 mm
Weight	2.9 lb / 1.3 kg
