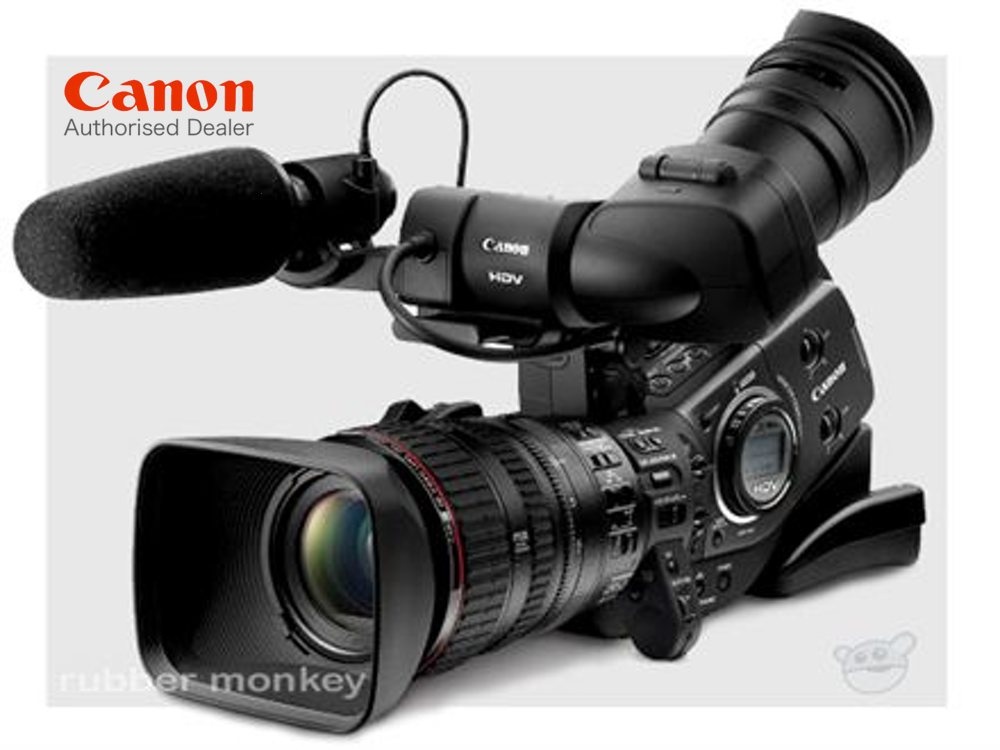

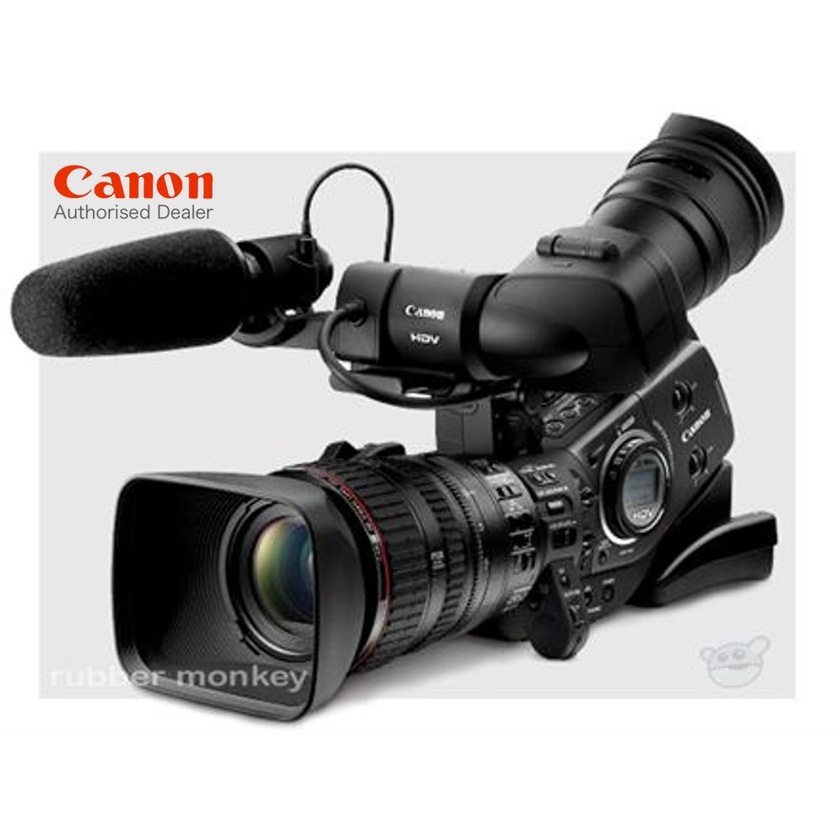

The Canon XL-H1s is an HDV camera that features interchangeable lenses. Using an improved 20x HD video zoom with superior optics further ensures a professional level of recording which is ideal for ENG, documentary and reality TV production. Filmmakers will appreciate the extensive cine' controls and 24 frame option.

The camera offers uncompressed HD-SDI and SD-SDI output for seamless integration into broadcast studios or high quality image transfer to non-linear editing systems. The Genlock feature allows studios to easily synchronize camera settings across multiple camcorders. Real SMPTE time code input and output allow for streamlined tape and edit management. This camera is fully capable of recording in standard definition DV format as well.

HDTV Resolution
The XL-H1s camcorder has three 1/3 inch 16:9 interlaced CCDs that capture images at 1080i resolution. The camcorder features selectable frame rates of 60i, 30 Frame and 24 Frame to allow the user to adjust to the assignment at hand and can switch back to SD resolution if needed. At the 30 Frame rate, broadcasters can capture fast motion like sports with confidence that each frame is captured individually and completely.

Filmmakers can utilize the 24 Frame rate when creating the look and feel of movie film. The 60i frame rate, meanwhile, delivers exceptional resolution for shooting environments like ENG or Reality TV. The XL-H1s HD camcorder is the first model to include Canon's proprietary DIGIC DV II image processor. DIGIC DV II is an image processor that can process both HD and SD video signals as well as still photos, while maintaining the correct color space for each mode.

Canon 20x HD Video Lens
The Canon XL-H1s features Canon's XL-interchangeable lens mount. For the XL-H1s camcorder Canon made a 20x high definition video zoom lens. It incorporates multiple Fluorite glass elements for superior color, contrast, resolution and reduction of chromatic aberrations. It is a fast lens with maximum aperture f/1.6 to f/3.5 depending on focal length. At its widest angle the lens is capable of close focusing down to 20mm or about 0.8".

Viewfinder and LCD Monitor
The XL-H1s comes with a multi-functional color viewfinder and a 2.4" diagonal LCD monitor with safe-zone frame-lines built in. There is a black and white mode, selectable zebra exposure mode, horizontal and vertical flip feature and a distance readout (with the 20x HD lens). As menu options the user can select safe-zone frame-lines for the following aspect ratios: 4:3, 13:9, 14:9, 1.66:1, 1.75:1, 1.85:1 and 2.35:1

Focus Assist Help Feature
The camcorder has a feature called Focus Help that uses prompts in the viewfinder to aid fast focusing. The PEAKING setting puts an exaggerated line on the viewfinder image that disappears when focus is achieved. The "Magnifying" setting enlarges the viewfinder image which should help the operator to better judge fine focusing.

Optical Stabilization Feature
Canon calls its image stabilizer Super-Range Optical Image Stabilization and it helps defeat camera shake from hand-held shooting and even shake produced from a moving vehicle. Because it is an optical function, it can compensate for a greater degree of camera shake and avoids any loss in image quality, unlike electronic or digital stabilizing methods.

Uncompressed HD-SDI and SD-SDI
The XL-H1s camcorder has all the connectors that professionals have been missing in other low-cost HDTV camcorders. For the ultimate in video transfers this camera has uncompressed HD-SDI and SD-SDI connectors. The serial digital BNC connectors can transfer both HD and standard definition signals.

Time Code
The XL-H1s camera is equipped with true SMPTE time code input and output. Time code from the camcorder can be sent to other recording devices (cameras, VTRs) so that they are all recording with the same clock.

Genlock Synchronization
Multi-camera shoots with the XL-H1s is no problem since the camcorder has Genlock sync. This feature allows many devices including cameras, VTRs and switchers to synchronize.

Specifications
Signal System
NTSC and HDV
Image Device
1/3" 3-CCD
16:9 and 4:3 Switchable
Lens
20x Video Zoom; 5.4-108mm
Signal-to-Noise Ratio
Not Specified By Manufacturer
Horizontal Resolution
1080 Lines
Sensitivity
Not Specified By Manufacturer
Minimum Illumination
60i: 7 lux, (1/60 shutter)
30F: 4 lux, (1/30 shutter)
24F: 3 lux, (1/24 shutter)
Vertical Smear
Not Specified By Manufacturer
Built-in ND Filter
1/6 = 2 Stops
1/32 = 5 Stops
LCD Monitor
2.4" LCD with VF Magnifier Removed
Viewfinder
Color LCD with Magnifier and Adjustable Ocular
Scan Matching
Yes
Memory Card Slot
Yes
Shutter Speed Range
Not Specified By Manufacturer
Gain Selection

• 3, A, 0, 3, 6, 12, 18

VTR
Tape Format
Mini DV
Tape Speed
SP Speed = 18.81mm/s
LP Speed = 12.56mm/s
Signal-to-Noise Ratio
Not Specified By Manufacturer
Maximum Recording Time
60 min

Audio
Audio Dynamic Range
Not Specified By Manufacturer
Audio Signal Format
16-bit/48kHz (2 & 4 channel mode)
Audio Frequency Response
20Hz to 20kHz
Signal to Noise Ratio
Not Specified By Manufacturer

General
Input and Output Connectors
Firewire: 6-Pin (x1 Input, x1 Output)
Component Video: 3-RCA (x1 Input, x1 Output)
S-Video: 4-Pin (x1 Input, x1 Output)
Composite Video: BNC (x1 Input, x1 Output)
Mic Audio: XLR (x2 Input)
Mic Audio: Mini Stereo (x1 Input)
Line Audio: RCA (x2 Input, x2 Output)
Headphone: Mini Stereo (x1)
LANC Control: Mini Stereo (x1)
HD-SDI/SD-SDI: BNC (x1 Output)
Timecode: BNC (x1 Output)
Genlock: BNC (x1 Output)
Power Requirements
7.4VDC
Power Consumption
Not Specified By Manufacturer
Operating Temperature
32-104°F (0-40°C)
Dimensions
(WxHxD): 8.9 x 8.7 x 19.5" (22.6 x 22 x 49.6cm)
Weight
Body Only: 5.4 lb (2.4kg)
With Lens and Battery: 8.8 lb (4kg)
