Zoom PodTrak P4 Portable Multitrack Podcast Recorder

Product #77596 | SKU PODTRAK P4 | Zoom
On Backorder what does this mean?
Our Price $354.00
On Backorder what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • 4 x High-Gain XLR Mic Inputs with +48V
  • 4 x Independent Headphone Outputs
  • 4 x Sound Pads for Music and Samples
  • Simultaneous TRRS & USB Call-Ins
  • Mix-Minus for Echo-Free Remote Call-Ins

Related Products

Rode PodMic Dynamic Podcasting Microphone Rode PodMic Dynamic Podcasting Microphone
SAVE $69
Shure SM7B Studio Vocal Dynamic Microphone Shure SM7B Studio Vocal Dynamic Microphone
BOYA BY-35C-XLR Mini Jack to XLR converter BOYA BY-35C-XLR Mini Jack to XLR converter

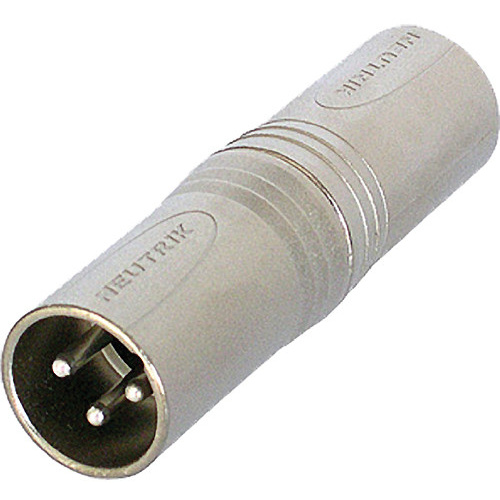

Neutrik NA3M5M 3-Pole XLR Male to 5-Pole XLR Male Gender Conversion Adapter Neutrik NA3M5M 3-Pole XLR Male to 5-Pole XLR Male Gender Conversion Adapter
Whirlwind QBOX - Audio Line Tester/Test Tone Generator Whirlwind QBOX - Audio Line Tester/Test Tone Generator
Sescom LN2MIC-ZOOMH6 3.5mm Line to Mic -25 dB Audio Cable for Zoom H6 Sescom LN2MIC-ZOOMH6 3.5mm Line to Mic -25 dB Audio Cable for Zoom H6
Sescom LN2MIC-ZOOMH4N - H4N Line to Mic In Attenuation Cable for HDSLR Cameras Sescom LN2MIC-ZOOMH4N - H4N Line to Mic In Attenuation Cable for HDSLR Cameras
Sescom LN2MIC-TASDR100 Cable for Tascam DR100 Sescom LN2MIC-TASDR100 Cable for Tascam DR100
Sescom LN2MIC-ZMH4N-6 cable Sescom LN2MIC-ZMH4N-6 cable
Sescom LN2MIC-ZMH4-MON Cable for Zoom H4N Sescom LN2MIC-ZMH4-MON Cable for Zoom H4N

Description

Purpose-built for producing polished multi-person podcasts anywhere you go, the Zoom PodTrak P4 Portable Multitrack Podcast Recorder is a cost-effective portable multitrack podcast recorder that lets you quickly record up to four mics, handle 2 echo-free remote call-ins simultaneously, trigger sound samples, and provide separate headphone feeds for all your guests, all at the same time and with refreshing simplicity.

From the intuitive, tactile controls to the plentiful battery life and powerful audio processing functions, the PodTrak P4 is well equipped to help you record or stream pristine audio for panel podcasts. Dynamic and condenser mics, customisable sound pads, call-ins via your smartphone or computer, and independent headphone outs; the PodTrak P4 can manage everything you need a podcast production station to do.

Extra touches including built-in limiters and low-cut filters for enhancing your tracks, an integrated mix-minus function to prevent echo and feedback for remote guests, and multiple powering methods make the PodTrak a truly powerful all-in-one solution for podcasting.

Key Features:

Four High-Gain Mic Inputs

Whether you rely on announcer-style dynamic microphones such as the Zoom ZDM-1 (available separately) or prefer the sheen of crisp condenser mics, the PodTrak P4's four mic preamps are up to the task. Each features a balanced XLR input jack, selectable +48V phantom power, and up to 70 dB of gain, plenty of boost to ensure optimal recording levels with all kinds of mics, such as the venerable Shure SM7B.

Headphone Mixes for You and Your Guests

Outfitted with four 3.5mm stereo headphone outputs, the PodTrak P4 can provide you and your guests with independent headphone mixes, each with its own level control above the corresponding headphone jack. No matter the scenario—an exclusive interview or a raucous panel podcast, everyone will be able to clearly hear what's going on.

Echo-Free Remote Call-Ins

Knowing how frequently podcasters collaborate with remote guests, Zoom integrated two ways to accommodate call-ins—plug your smartphone directly into the 3.5mm TRRS phone port, connect a computer via USB to pipe in the audio from your conferencing software of choice, or do both at the same time to feature two remote guests.

Whether you use TRRS, USB, or both, the PodTrak P4 automatically prevents echo and feedback with its built-in mix-minus feature; your remote guests will never be distracted by hearing their own voice echo back to them.

Supports BTA-2 for Wireless Remote Guests

If you prefer to go wire-free for call-ins, connect the Zoom BTA-2 Bluetooth receiver (available separately) to the PodTrak P4 and use your smartphone to wirelessly pipe in your call audio via Bluetooth.

Assignable Sound Pads with Preset Sounds

The PodTrack P4 is equipped with four sound pads next to the LCD screen, perfect for elevating your podcast production quality with music, jingles, ads, sound effects, or pre-recorded interviews triggered at the push of a button. Use the 11 preset sounds or load your own samples for even more versatility. Plus, a dedicated knob allows easy adjustment of the sound pad output volume.

Instant Access to Gain and Mute for Each Input

Each mic input on the PodTrak P4 has its own dedicated gain control knob. There's no track selection or button pressing required to optimise your recording levels; just turn the dials (clearly labelled from 0 to 10) anytime you need to adjust the gain. Additionally, a mute button is provided for every input, so you can quickly mute/unmute guests without having to navigate through menus.

Record up to 10 Tracks Simultaneously

With the PodTrak P4, you can simultaneously record up to 10 tracks to an SD card—four tracks from the input channels, four tracks from the sound pads, and two tracks from the overall stereo mix.

SD Card Recording and Audio Interface Functionality

Designed for truly convenient portability, the PodTrack P4 can record directly to an SDHC card (up to 32GB capacity) or an SDXC card (up to 512GB capacity). A 4GB card will yield over three hours of 16-bit / 44.1 kHz 4-channel recording time using the BWF-compliant WAV format for uncompressed audio quality and industry-standard file compatibility. Note that media cards are available separately, and larger capacity cards may increase startup times.

Alternatively, use the PodTrak P4 as a 2-in/2-out USB 2.0 audio interface (at 16-bit / 44.1 kHz) with your Mac/Windows computer or iOS/Android mobile device (separately available Apple Camera Connection Kit is required for use with iOS devices).

Powered via AA Batteries, AC Adapter, or USB

Power the PodTrak P4 via two AA batteries, plug it into a wall outlet with an AD-17 AC adapter (available separately), or use an external USB battery. Alkaline batteries can keep the P4 running for up to four hours of continuous recording. When using the P4 in the stereo USB audio interface mode, USB bus powering is also possible.

Signal Processing Adds Sonic Polish

The PodTrak P4's onboard effects allow you to add polish to your recordings without resorting to postproduction processing on a computer. Built-in limiters compensate for fluctuations in input level, while low-cut filters help eliminate wind noise, blowing, and other kinds of low-frequency rumble.

Specifications

Portable Recorder
Number of Tracks WAV:
10 (4 Inputs + Stereo Mix)
Max Sample Rate/Resolution 44.1 kHz / 16-Bit
Microphone None
Built-In Speaker None
Display Monochrome LCD
Memory Card Support SDHC (4 GB to 32 GB)
SDXC (64 GB to 512 GB)
Internal Storage None
Recording
Audio File Formats WAV
Sample Rates 44.1 kHz (Record/Playback)
Bit Depth 16-Bit (Recording)
Signal Processing Limiter, Low-Cut Filter
Timecode None
Connectivity
Analogue I/O 4 x XLR 3-Pin Female Balanced Mic Input
4 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
1 x 1/8" / 3.5 mm TRRS Female Unbalanced Aux Input
1 x 2.5 mm TRRS Female Unbalanced Remote Input
Digital I/O None
Phantom Power +48 V, Selectable On/Off (Selectable on Individual Inputs)
Host Connection 1 x USB Type-C (I/O)
1 x USB Type-C (Bus-Power Only)
Performance
Gain Range Mic Inputs:
Up to 70 dB
Power
Power Options Batteries, USB Bus Power, or AC/DC Power Adapter
Approximate Battery Life WAV 44.1 kHz/16-Bit:
4 Hours (AA Alkaline, Phantom Off)
4.5 Hours (AA NiMH, Phantom Off)
9 Hours (AA Lithium, Phantom Off)
AC/DC Power Adapter 5 VDC at 1 A (Not Included)
Physical
Mounting Options None
Dimensions 4.4 x 1.9 x 6.1" / 112 x 47 x 155 mm
Weight 10.2 oz / 290 g (Without Batteries)

In The Box

  • Zoom PodTrak P4 Portable Multitrack Podcast Recorder

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Zoom PodTrak P4 Portable Multitrack Podcast Recorder
  • Manufacturer: Zoom
  • Model: P4
  • SKU: PODTRAK P4
  • RM Product #: 77596
