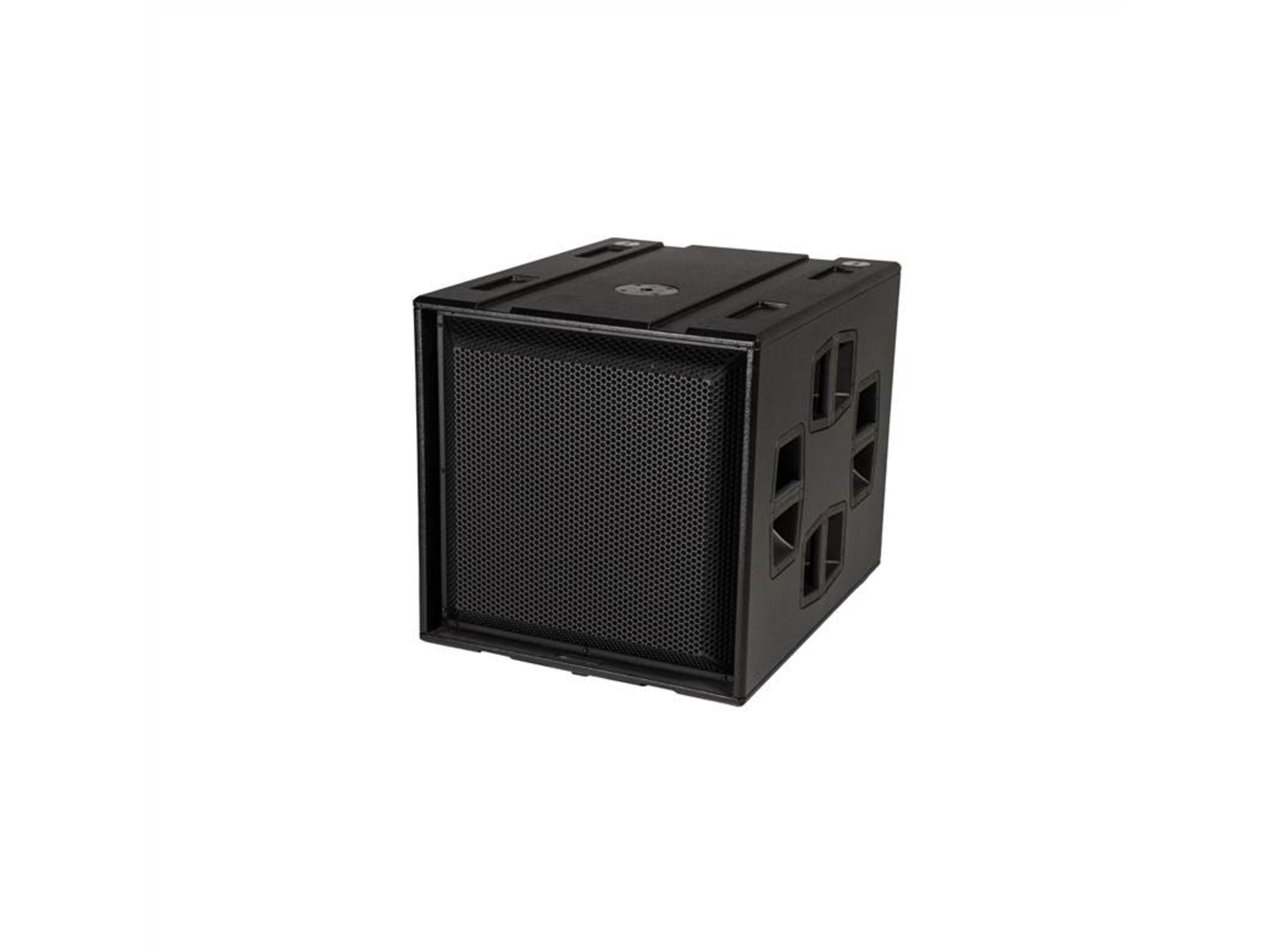

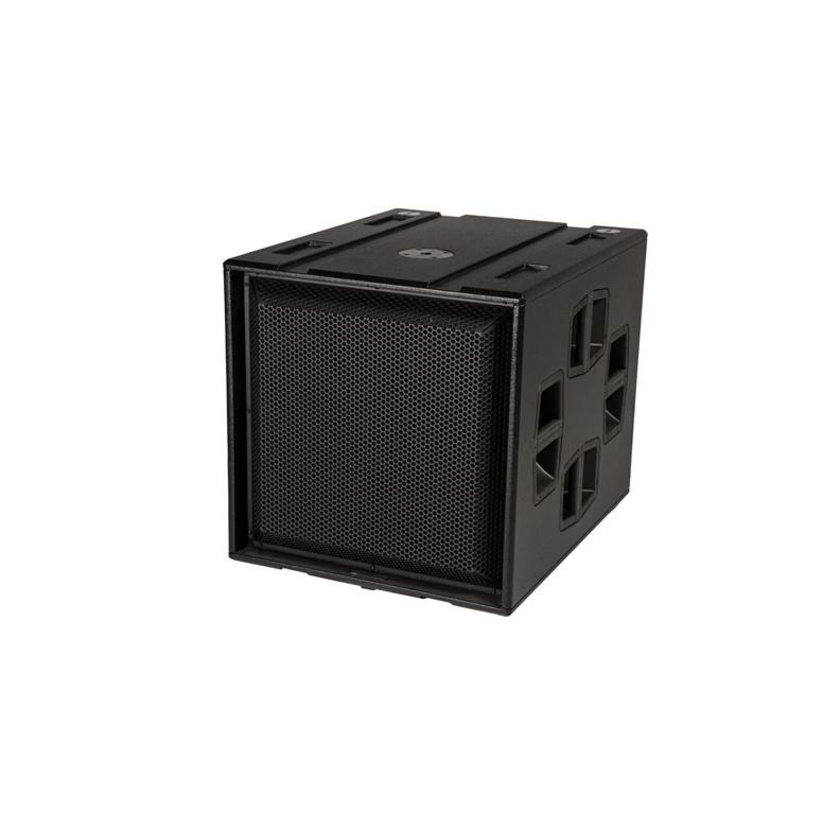

dB Technologies INGENIA IGS1 Active 18" Bass-Reflex Subwoofer

Product #126149 | SKU 1030104080 | dB Technologies
Contact us for an ETA what does this mean?
Our Price $6,099
Contact us for an ETA what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • 45.7 cm bass-reflex subwoofer
  • 1600 W RMS Class D
  • RDNet monitoring via Aurora Net
  • Windows and macOS control support
  • M20 pole mount, two rigging points
  • Four handles, durable polyurea finish

Description

The dB Technologies INGENIA IGS1 Active 18" Bass-Reflex Subwoofer features a single 18" woofer housed in a solid bass-reflex cabinet. A 1600 W RMS Class D amplifier delivers maximum reliability and impressive sound pressure. The system is RDNet-enabled for complete real-time monitoring and control through Aurora Net software, available for Windows and Mac, and supports advanced configurations between IGS1 and IGS2 systems as well as seamless matching with dBTechnologies full-range systems.

System integration and control

RDNet connectivity enables full real-time monitoring and control through Aurora Net software. Available for both Windows and Mac, the software supports advanced configuration options between IGS1 and IGS2 systems and ensures precise matching with dBTechnologies full-range systems.

Mechanical design and scalability

The mechanical design allows excellent scalability across the subwoofer models in this line. An M20 threaded mount for a standard pole makes pairing with the top unit easy and immediate, while two pick points make it possible to use fly-bars dedicated to other dBTechnologies systems.

Transport and durability

This sturdy cabinet includes four built-in handles and a rear panel designed to simplify transport on wheels. A polyurea finish completes the standard feature set, providing long-lasting durability and endurance.

Specifications

Acoustical data
Frequency Response [-10dB] 36Hz to Xover
Max SPL (1 m) 136 dB
LF 18"
LF Voice Coil 4"
Amplifier
Amp Class Class D with PFC
RMS Power 1600 W
Processor
Controller 32bit processing
AD/DA Converter 24bit 96kHz
Limiter Peak, Thermal, RMS
Crossover Frequency 60-65-70-75-80-90-100-110-120-400 [Hz]
Controls FunctionControl (rotary)
Input
Signal Input/Output 1x XLR In/Out
1x PowerCon True In/Out
2x Ethercon In/Out
Mechanics
Housing Plywood cabinet with Polyurea finish
Handles 4x side
Pole Mount 1x M20 on top
Rigging Points 2xPick Points on top to fix DRK 10/20 rigging frames
Width 578 mm (22.76 in)
Height 580 mm (22.83 in)
Depth 720 mm (28.35 in)
Weight 45.6 Kg (100 lbs)

In The Box

  • dB Technologies INGENIA IGS1 Active 18" Bass-Reflex Subwoofer

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: dB Technologies INGENIA IGS1 Active 18" Bass-Reflex Subwoofer
  • Manufacturer: dB Technologies
  • Model: 1030104080
  • SKU: 1030104080
  • RM Product #: 126149
