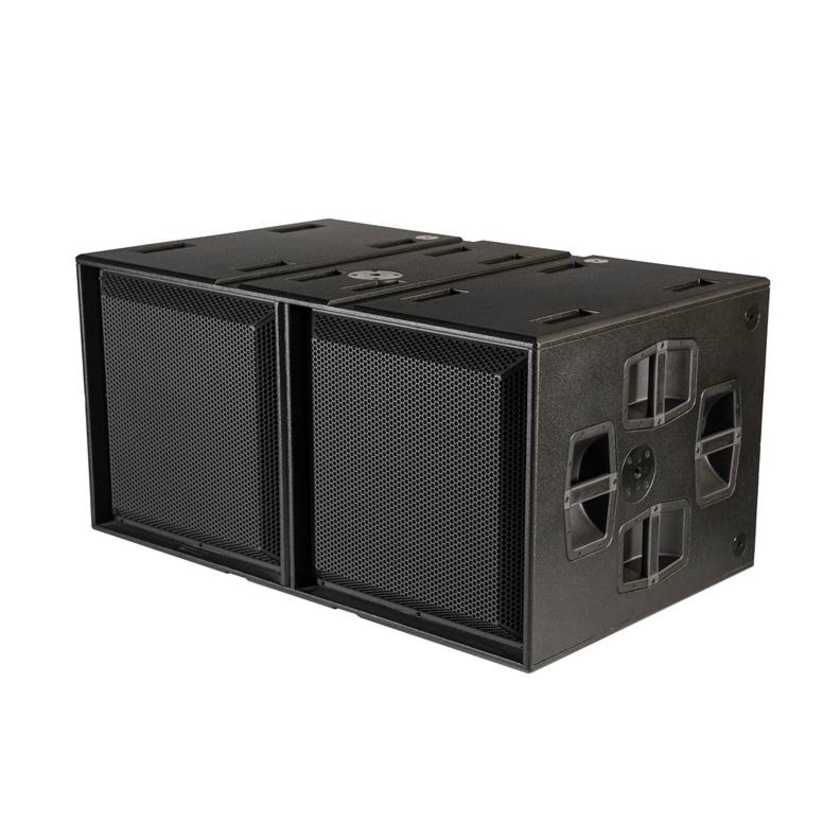

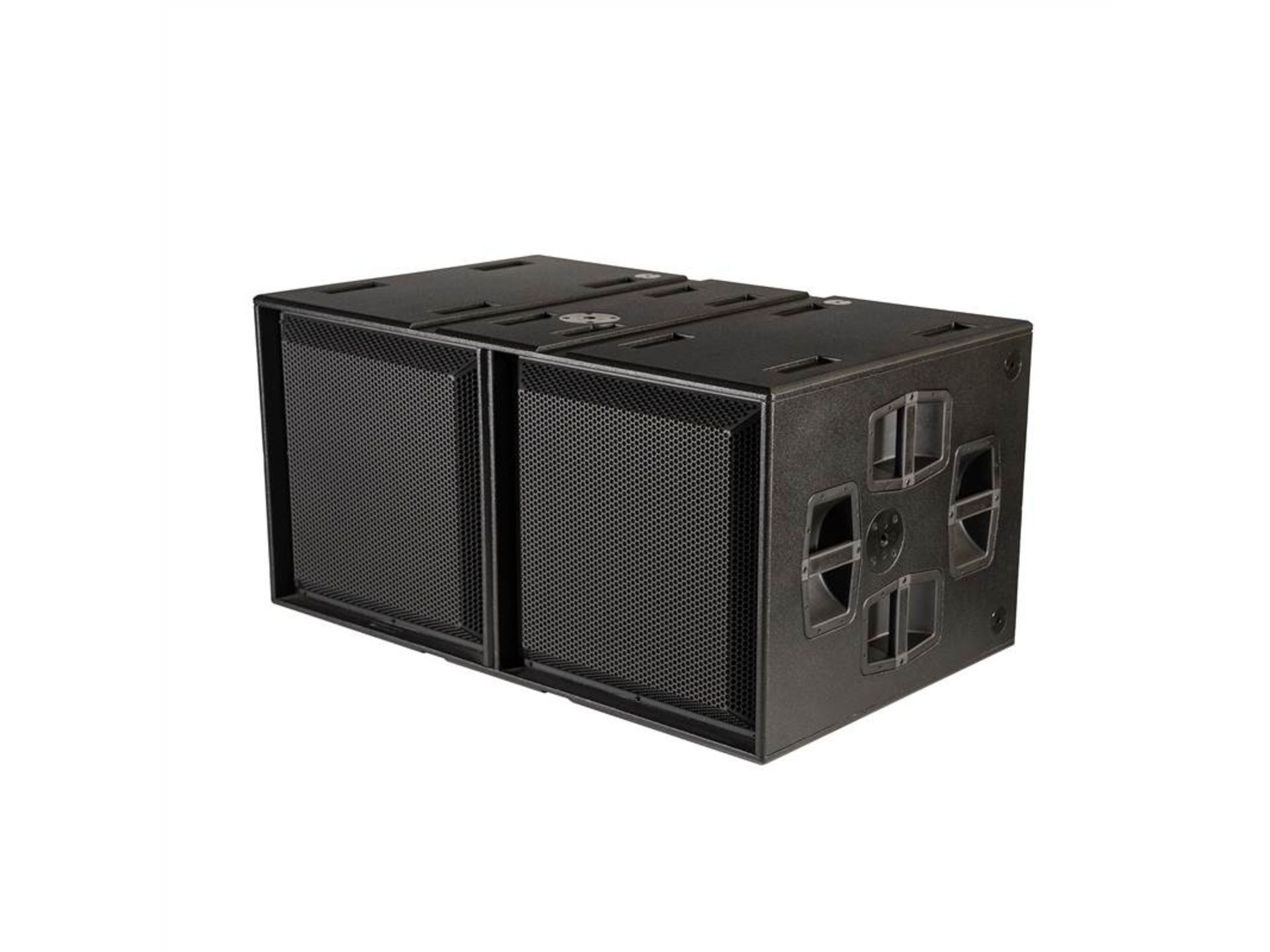

dB Technologies INGENIA IGS2 Active Dual 18" Bass-Reflex Subwoofer

Product #126150 | SKU 1030104090 | dB Technologies
Contact us for an ETA what does this mean?
Our Price $9,899
Contact us for an ETA what does this mean?
This product can't be purchased at this time, please contact us for more information.
- +

Email me when stock arrives


Features

  • Dual 45.7 cm neodymium woofers
  • Bass-reflex cabinet, powerful low-end output
  • 3200 W RMS Class D amplification
  • RDNet monitoring via Aurora Net
  • M20 mounts and flying points
  • Handles, wheels, durable polyurea finish

Description

The dB Technologies INGENIA IGS2 Active Dual 18" Bass-Reflex Subwoofer features two 18" neodymium woofers in a solid bass-reflex cabinet. The powerful Class D DSP-controlled double amplifier section can handle up to 3200 W (RMS power), ensuring maximum reliability and full-bodied sound pressure. The system is enabled via RDNet to complete real-time monitoring and control using Aurora Net software (available for Windows and Mac), which supports advanced configurations between IGS1 and perfect matching with dBTechnologies full-range systems. The mechanical design allows perfect scalability between this line's subwoofer models, while two M20 threaded for standard poles make matching with the top easy and immediate; four pick points allow using fly-bars dedicated to other dBTechnologies top systems for live installations. This sturdy cabinet also features four built-in handles and a back panel for easy wheeled transport. A polyurea finish complements the standard features, ensuring durability and endurance.

Specifications

Acoustical data
Frequency Response [-10dB] 36Hz to Xover
Max SPL (1 m) 142 dB
LF 2x 18"
LF Voice Coil 4"
Amplifier
Amp Class Class D with PFC
RMS Power 3200 W
Processor
Controller 32bit processing
AD/DA Converter 24bit 96kHz
Limiter Peak, Thermal, RMS
Crossover Frequency 60-65-70-75-80-90-100-110-120-400 Hz
Controls FunctionControl (rotary)
Input
Signal Input/Output 1x XLR In/Out
1x PowerCon True In/Out
2x Ethercon In/Out
Mechanics
Housing Plywood cabinet with Polyurea finish
Handles 4x side
Pole Mount 2x M20 (1 on top and 1 on side)
Rigging Points 4x Pick Points on top to fix DRK 10/20 rigging frames
Width 1160 mm (45.67 in)
Height 580 mm (22.83 in)
Depth 720 mm (28.35 in)
Weight 80.8 Kg (178 lbs)

In The Box

  • dB Technologies INGENIA IGS2 Active Dual 18" Bass-Reflex Subwoofer

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: dB Technologies INGENIA IGS2 Active Dual 18" Bass-Reflex Subwoofer
  • Manufacturer: dB Technologies
  • Model: 1030104090
  • SKU: 1030104090
  • RM Product #: 126150
