ANDYCINE C7 Lite 7" Touchscreen HDMI Field Monitor has been discontinued, here are some related products you might like:

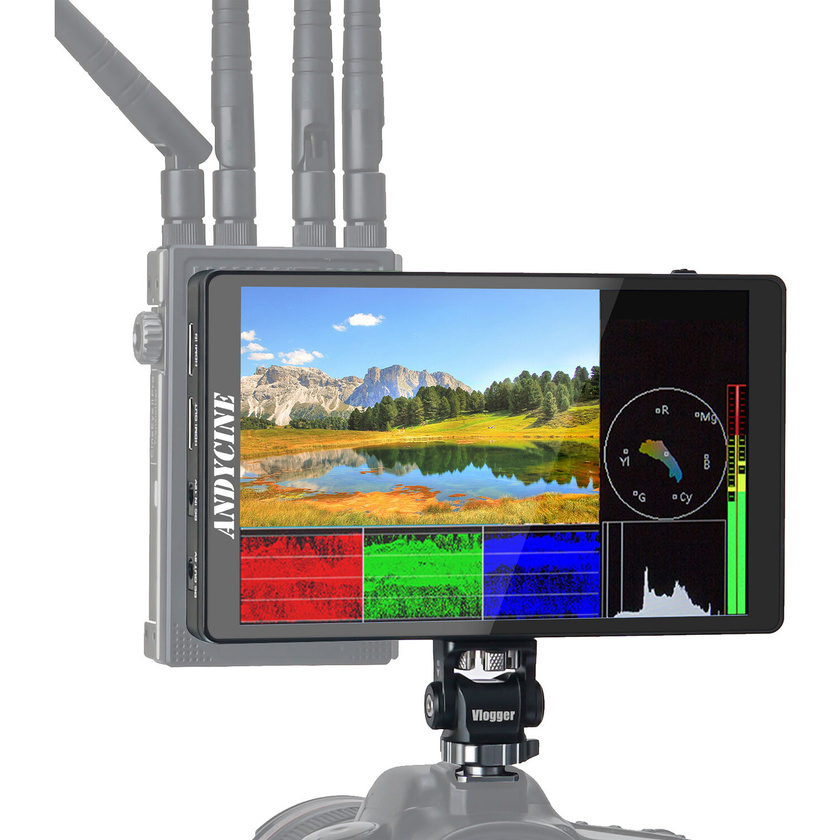

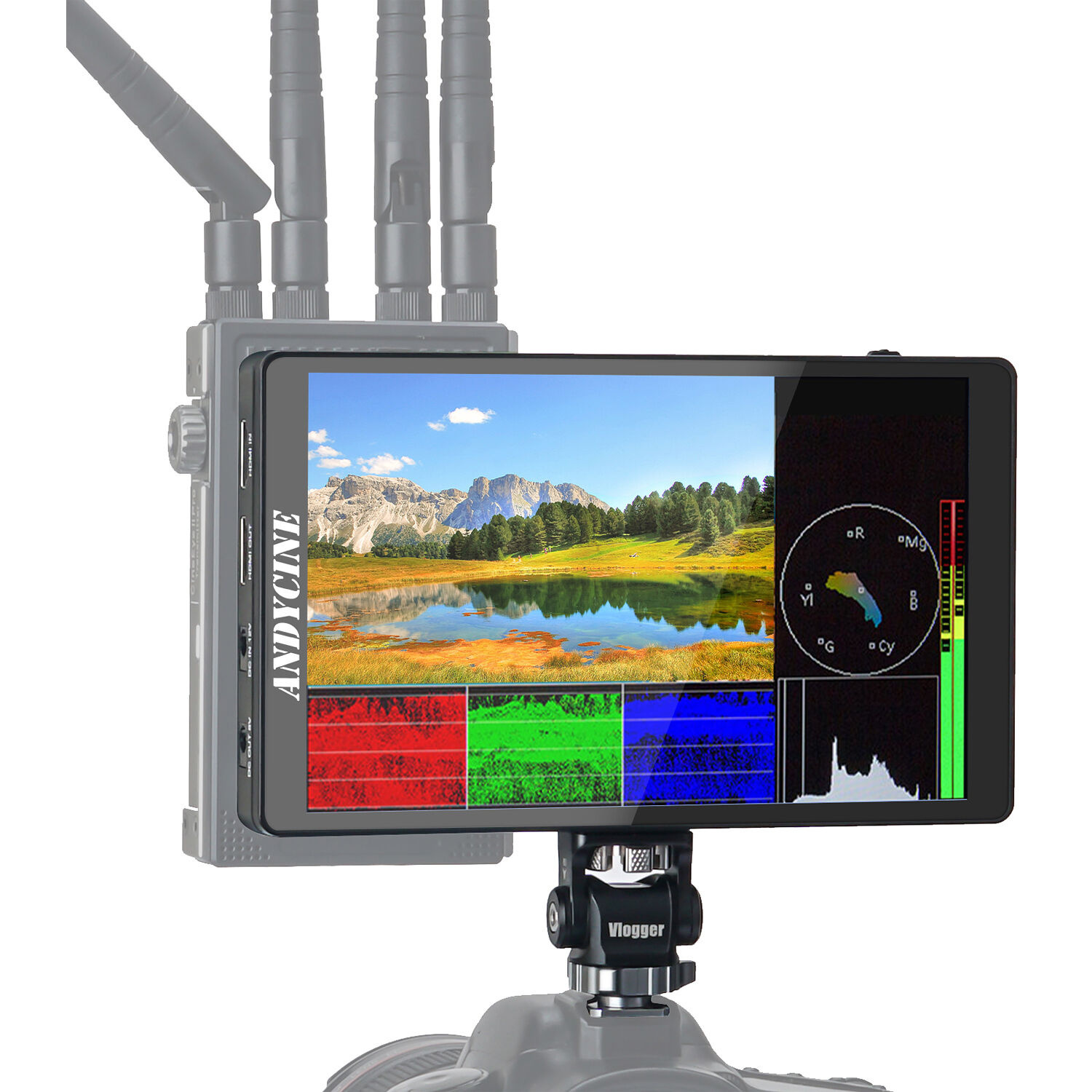

ANDYCINE C7 Lite 7" Touchscreen HDMI Field Monitor

Product #103967 | SKU C7 LITE | Andycine
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 7" HDMI 1920 x 1200 Touchscreen
  • 1200:1 Contrast, 500 cd/m² Brightness
  • Built-In L-Series Battery Plate
  • Supports up to 4K60 Video Input/Output
  • 8 VDC Output Powers Camera/Accessories
  • Calibrated for Rec. 709 HD Colour

Description

High Performance Touch Screen

The ANDYCINE C7 Lite 7" Touchscreen HDMI Field Monitor provides a 7-inch touch screen and sharp image, with native 1920x1200 high resolution and 16:10 display, 500cd/m2 brightness, 1200:1 contrast ratio, which contribute the excellent details. The 160°wide viewing angle is convenient for monitoring from multiple angles views.The innovative touch screen can use simple tap and swipe gestures for the important monitoring functions and two fingers pinch to zoom up without pressing buttons.

Accessory Mounting and Power

The L-series mounting plate allows you to directly attach and power accessories, such as a wireless transmitter or receiver, to the back of the monitor using the accessory L-series battery slot.

Professional Auxiliary Functions

This 7 inch DSLR video monitor supports 4K 60Hz HDMI signal input and output up to 4K 60Hz, which is transmitted without loss and the screen is clearer.The flexible OS is packed with focus, framing & exposure (waveform,RGB parade, vector-scope, histogram etc.) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload.cube files) and options for anamorphic de-squeeze monitoring.

Key Features
  • 7" HDMI 1920 x 1200 Touchscreen
  • 1200:1 Contrast, 500 cd/m² Brightness
  • Built-In L-Series Battery Plate
  • Supports up to 4K60 Video Input/Output
  • 8 VDC Output Powers Camera/Accessories
  • Calibrated for Rec. 709 HD Colour

Specifications

Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle 160° (80/80)
Touchscreen Yes
Maximum Brightness 500 cd/m2
Contrast Ratio 1200:1
HDR Compatibility None
Pixels Per Inch (ppi) 323 ppi
Colour Gamut 100% Rec. 709
Image Controls Anamorphic De-Squeeze, Blue Only, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Marker Colour, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
Video I/O 1 x HDMI Input
1 x HDMI Loop Output
Embedded Audio HDMI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel (12 VDC) Input
1 x USB-C (5 VDC) Input
1 x Barrel (8 VDC) Output
Media/Memory Card Slot Single Slot: SD/SDHC
Wi-Fi None
Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 60/50/30/29.97/25/24/23.98
1080p
Power
DC Input Power 12 VDC
Battery Type 1 x L-Series
General
Material of Construction Plastic

In The Box

  • ANDYCINE C7 Lite 7" Touchscreen HDMI Field Monitor
  • HDMI Type A to Micro-HDMI Cable
  • Sun Hood
  • Friction Tilt Mount
  • Allen Wrench

Reviews

0.0 (no ratings yet)

Details

  • Product: ANDYCINE C7 Lite 7" Touchscreen HDMI Field Monitor
  • Manufacturer: Andycine
  • Model: C7 LITE
  • SKU: C7 LITE
  • RM Product #: 103967
  • Screen Size: 7"
  • Screen Resolution: 1920 x 1200
  • Warranty: Click here for warranty terms view terms
