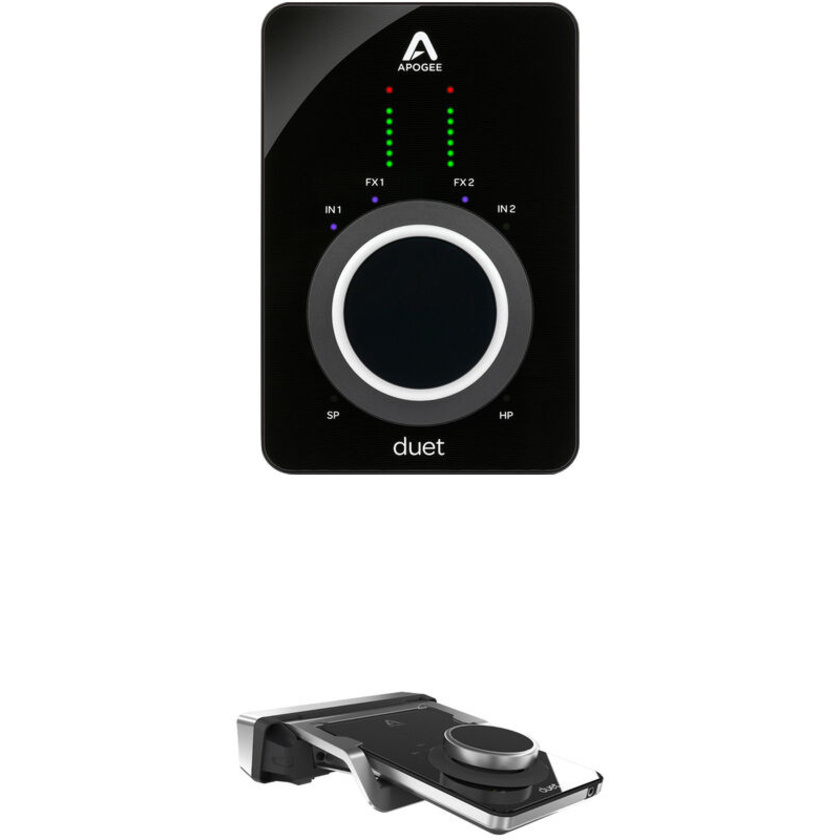

Apogee Electronics Duet 3 Ultracompact 2x4 USB Type-C Audio Interface Kit with Desktop Dock

Product #117936 | SKU DUET3 LIMITED EDITION | Apogee
In stock Ships Monday
Our Price $1,419
In stock Ships Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • For Musicians, Producers, Songwriters
  • Duet 3 Ultracompact 2x4 Audio Interface
  • Ergonomically Angled Desktop Dock
  • USB Type-C Connectivity
  • 2 Mic/Line/Hi-Z Preamps
  • 1 Headphone Out, 2 Line/Monitor Outs

Description

Designed to elevate the recording experience for audiophiles on the go, the Apogee Electronics Duet 3 presents a compact and durable 2x4 USB-C audio interface. This device encapsulates Apogee's renowned sound quality and user-friendly design, providing musicians, producers, and songwriters with the tools to achieve exceptional audio, regardless of their location. Its sleek exterior, featuring an aluminium base and a Gorilla Glass top, balances durability with aesthetic appeal. The Duet 3 also incorporates built-in hardware DSP, offering the option to utilize the Symphony ECS Channel Strip plug-in for precise signal manipulation and enhancement, without overburdening your computer or iOS device.

Equipped with two exceptional microphone preamps, complete with phantom power and ample gain, this interface ensures robust amplification, even for low-output ribbons and classic dynamic microphones like the Shure SM7B. Additionally, the Duet 3 accommodates line-level signals and direct instrument connections, making it compatible with electric guitars and basses. Its versatile connectivity options include two balanced analogue 1/4" TRS line/monitor outputs and a stereo 3.5mm headphone output, enabling simultaneous monitoring through both studio monitors and headphones. Furthermore, the main and headphone outputs can be addressed independently, offering the flexibility to route distinct mixes to artists in the studio, performers on stage, or a house PA system.

Specifications

Key Specs
Channels of I/O Analogue:
2 Inputs / 4 Outputs
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Inputs 2
Analogue Audio I/O 2x XLR 3-Pin Balanced Mic/Line Input (on Included Breakout Cable)
2x 1/4" TS Unbalanced Hi-Z Input (on Included Breakout Cable)
2x 1/4" TRS Balanced Line Output (on Included Breakout Cable)
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O No
Host Connection 1x USB-C
OS Compatibility macOS 10.15
Windows 10
Power Requirements AC/DC Power Adapter (Not Included) or USB Bus Power
Channels of I/O Analogue:
2 Inputs / 4 Outputs
Built-In DSP Yes
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Inputs 2
Built-In Microphone No
Input Level Adjustment 1x Knob
Signal Processing
Pad No
Gain/Trim Range Up to 65 dB
High-Pass Filter No
Solo/Mute No
Connectivity
Analogue Audio I/O 2x XLR 3-Pin Balanced Mic/Line Input (on Included Breakout Cable)
2x 1/4" TS Unbalanced Hi-Z Input (on Included Breakout Cable)
2x 1/4" TRS Balanced Line Output (on Included Breakout Cable)
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Phantom Power 48 V
Digital Audio I/O No
Host Connection 1x USB-C
Host Connection Protocol USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host) 1x USB-C (Power Input)
Sync I/O No
Network I/O No
MIDI I/O No
Expansion Slots No
Other I/O 1x Proprietary/Apogee Breakout Cable In/Out
Performance
Impedance Headphone Outputs:
0 Ohms
Digital Audio
Sample Rates Up to 192 kHz
Sample Rate Conversion No
Bit Depths 24-Bit
Latency Zero-Latency Direct Monitoring
Sync Sources Internal
Audio Storage & Playback
Media/Memory Card Slot No
Compatibility
OS Compatibility macOS 10.15 or Later / Windows 10 or Later
OS Compatibility macOS 10.15
Windows 10
Required Hardware Available USB-A Port or USB-C Port
Power
Power Requirements AC/DC Power Adapter (Not Included) or USB Bus Power
General
Compatible Interfaces Apogee Duet 3
Connectivity
Analogue Audio I/O 2x XLR 3-Pin Mic/Line Input
2x 1/4" TRS Mic Input
2x 1/4" TRS Balanced Line Output
1x 1/4" TRS Headphone Output
Phantom Power 48 V
Digital Audio I/O No
Host Connection Protocol USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host) No
Sync I/O No
Network I/O No
MIDI I/O No
Digital Audio
Sample Rates Up to 192 kHz
Bit Depths 24-Bit
Sync Sources No

In The Box

  • Apogee Electronics Duet 3 Ultracompact 2x4 USB-C Audio Interface
  • Apogee Electronics Duet Dock for Duet 3 USB Type-C Audio Interface

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Apogee Electronics Duet 3 Ultracompact 2x4 USB Type-C Audio Interface Kit with Desktop Dock
  • Manufacturer: Apogee
  • Model: DUET3 LIMITED EDITION
  • SKU: DUET3 LIMITED EDITION
  • RM Product #: 117936
