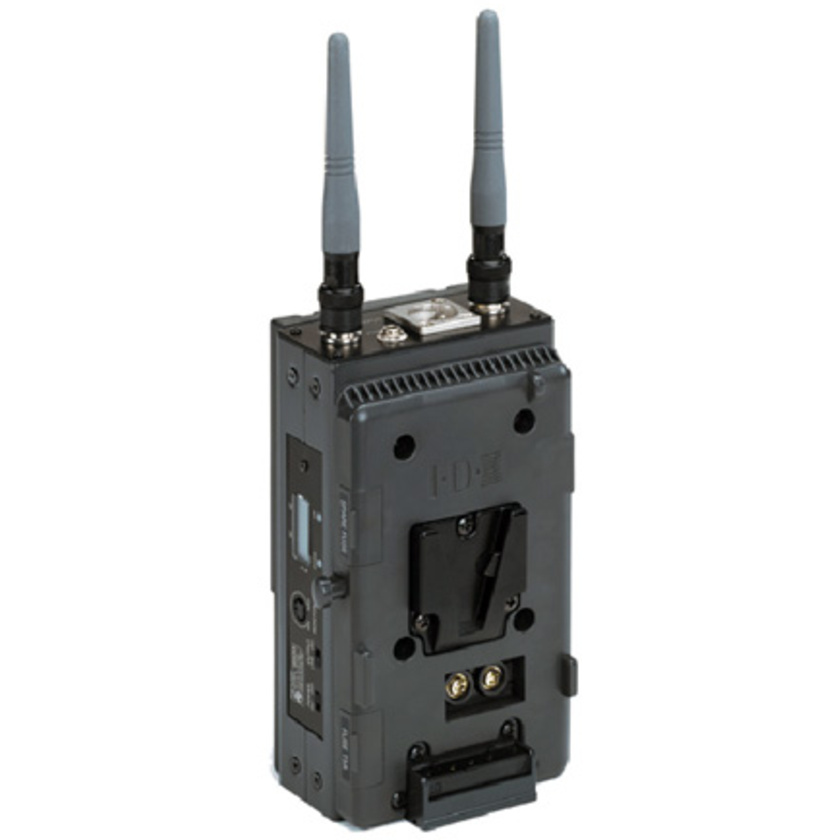

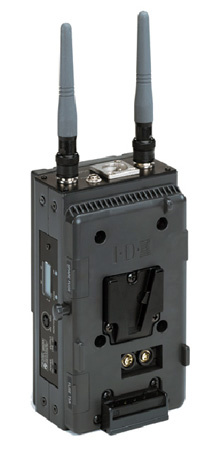

1201URX/VM is the receiver for attaching on IDX V mount type battery connector on the spot.
Whether you use a Panasonic® or Ikegami® camera with "slot-in" receiver capabilities, or use the Anton-Bauer® Gold Mount®, or a V-Mount battery, there's an Azden 1201 designed specifically for your use.
The 1201URX/VM Includes:
- New compander circuit for more natural sound
- New DTV-compatible (188) frequencies covering 4 UHF TV bands
- True diversity system with 2 complete front-ends and high-gain antennas
- Dielectric filters throughout, for improved image rejection and superior diversity isolation
- High 5th-order filters for improved S/N ratio
- Multi-function LCD shows channel, frequency, battery info, AF level, and diversity operation
Transmitters also feature: New circuitry, powered by only 2-"AA" batteries, new plug-in transmitter with 48V phantom power capability
Technical Specifications
- RF Carrier Frequency Range: 188 steps ~ 638.125 - 661.875 MHz
Micro Computer Controlled PLL Synth.
- Noise Reduction: Expander (THAT)
- Effective Operating Range: 60 - 100m
- Frequency Response: 50 - 15kHz (± 1.5dB)
- RF Sensitivity: (12dB SINAD) 1.2µV
- Adjacent Channel Selectivity: > 70dB (± 250kHz)
- Image Rejection: > 93dB
- IF Rejection: > 93dB
- Audio THD: < 0.8%
- Audio Output: 40dBm ± 40kHz Deviation
- Output Impedance: 600O
- Signal/Noise Ratio: > 62dB (± 5kHz Deviation) “A” Weighted
- Power Requirements: 11 - 15V DC @ 220mA (10 - 17V DC @ 200mA for 1201URX\Si)
- Dimensions: 82W x 150H x 60D mm - 1201URX/VM
- Operating Temperature Range: -50 - +122 F ~ -10 - +50 C
- Weight: 750g for 1201URX/VM
