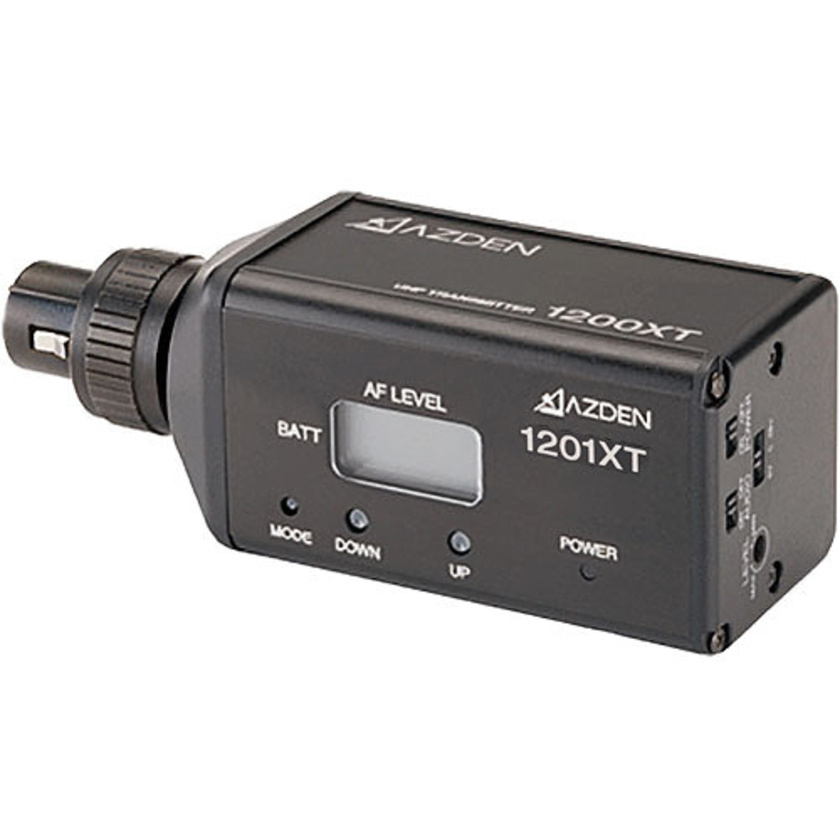

The Azden 1201XT Plug-in Transmitter is designed for use with the 1201 Series receivers. The 1201-series also offers 1240 user selectable, DTV compliant frequencies. A 3-pin XLR connector accommodates your favorite microphone and provides +48V phantom power to condenser mics. There is a multi-function digital display, and its rugged construction ensures reliable use outdoors, on the road, etc. The transmitter is powered via 2-AA alkaline batteries for up to 8-hours.
Features
- 188 User Selectable Frequencies
- In addition to the receiver's slot-in design, the 1201-series also offers 188 user selectable, DTV compliant frequencies.
- True Diversity Reception
- True-diversity technology with two complete front-ends and high-gain antennas maximize reception and range while greatly reducing interference and drop-out.
Technical Specifications
- 1201XT
- Carrier frequency: 566.25 MHz to 589.75 MHz 188 CH
- Radio type: F3E FM
- Crystal-controlled PLL Synthesizer
- Ouput power: 25mW
- Tone Frequency: 32.768kHz
- Noise Reduction: Compander(THAT)
- Mic connector / Level Impedance: XLR/Mic power (On) ECM:-35dBm/2.2kO
(Off) Dynamic:-55dBm/6.8kO
(48V) Phantom power
- Frequency response: 50-15kHz±1.5dBm
- LCD display: Frequency, Channel, AF level w/indicators, attery status w/indicators, Operating times
- Power requirement: DC 3V (2 AA-size batteries)
- Power consumption: 120mA or less
- Battery life: Approx 8 hours with 2 AA-size Alkarine batteries
- Dimensions / Weight (Including batteries): 40(W)x114(H)x40(D)mm/Approx. 180g
