The Azden 330LH UHF On-Camera Handheld & Bodypack System is a powerful dual-channel UHF wireless combo-microphone system for camera-mount applications.

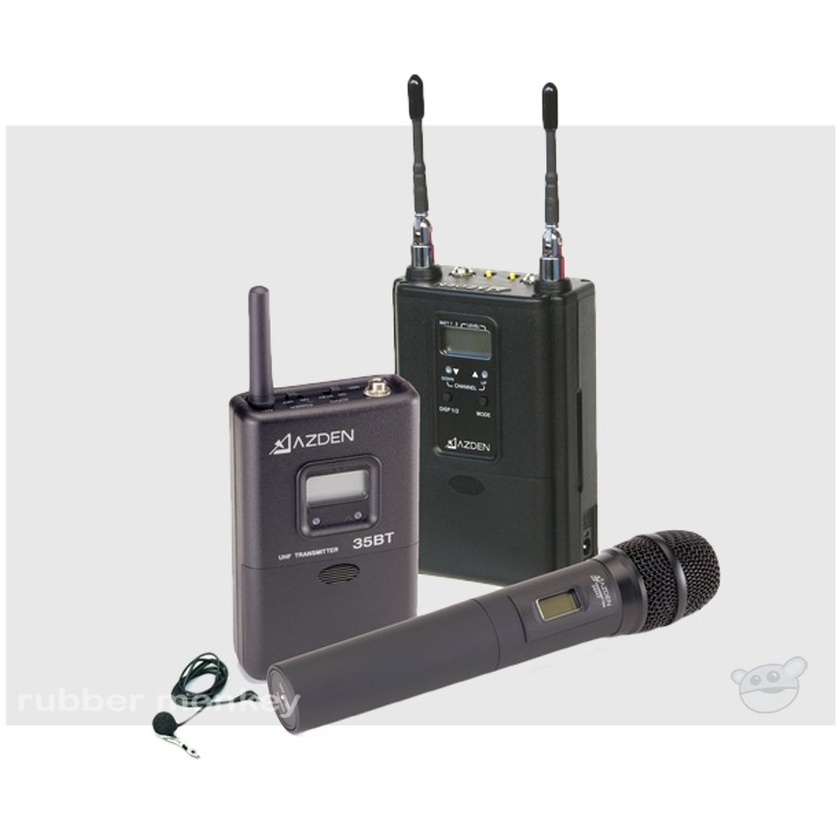

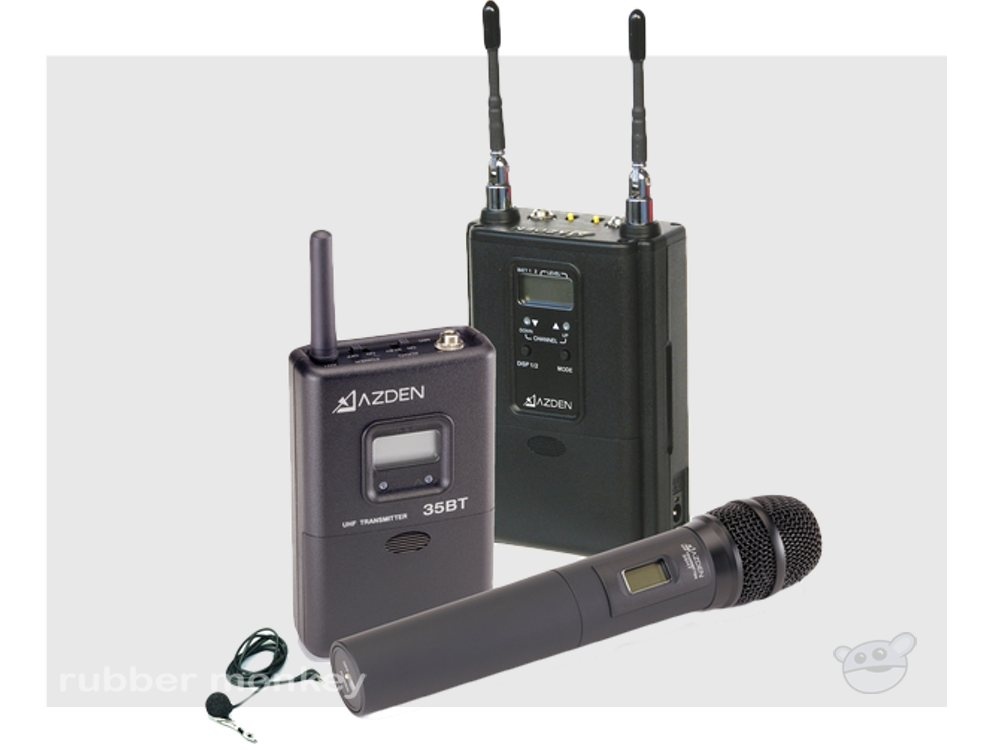

The system consists of Azden's 35BT bodypack transmitter, EX-503 lavalier microphone, 35HT handheld microphone transmitter, and 330UPR portable dual-channel diversity receiver. The inclusion of both bodypack and handheld transmitters, allows users to operate both microphones simultaneously.
With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 330LH is guaranteed to meet the demands of consumer and professional video applications alike. The 330UPR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included).
Product Features:
- Discrete 2-channel Camera-mount UHF Receiver
- 188 Selectable UHF Freq. (566.125-589.875 MHz)
- New, Pivoting diversity High-Gain Antenna
- Digital LCD Display w/Multifunction Readout
- Mini-Jack Out w/Supplied 24" Mini-to-XLR Cable
- Headphone Output on Receiver
- Attached/Removable Shoe-Mount
- Powered by 2 "AA" Batteries (not included)
Technical Specifications:
System:
- Type of System: Portable UHF Dual-Channel Combo System
- RF Carrier Frequency Range: UHF 188 Freq. (566.125-589.875 MHz)
- Approx. Working Range: 200 - 300'
- Overall Frequency Response: 50 to 15kHz
- Signal-to-Noise Ratio: >84dB (100% Deviation)
- # Of Channels: 188
- # Of Simultaneous Systems: Not Specified By Manufacturer
Receiver:
- Type of Receiver: 330UPR On-Camera Dual-Channel Receiver
- Type of Outputs: MIC Level - Balanced
- 1/8" (3.5mm) Mini-Jack -28 dBm (100% Deviation - Mic Level)
- Headphone Monitoring: Yes 1/8" (3.5mm) Mini-Jack
- Battery Type/Approx. Life: 2x "AA" Alkaline (2 x 1.5V) - 5-6 hours runtime
- 2x "AA" rechargeable Ni-MH (2 x 1.2V)
- Display: LCD Digital
- Mounting Options: Attached/Removable Shoe-Mount
- Antenna Type: 2x Pivoting Diversity High-Gain Antenna
- Dimensions (WxHxD): 2.87 x 4.45 x 1.59" (73 x 113 x 40.5mm)
- Weight: 10.2oz (290g) w/batteries
Transmitter:
- Type of Transmitter: 35BT Bodypack Transmitter
- Microphone: EX-503 Lavalier
- Battery Type/Approx. Life: 2x "AA" Alkaline (2 x 1.5V) - 6-8 hours runtime
- 2x "AA" rechargeable Ni-MH (2 x 1.2V)
- Deviation: +/- 40kHz @ 1kHz Modulation
- MIC Input: - 11dBm
- Mute Switch: On/Off
- RF Power: 25mW
- Display: LCD Digital
- Dimensions (WxHxD): 2.52 x 3.93 x 1.16" (64 x 100 x 27mm)
- Weight: 6oz (170g)
Transmitter:
- Type of Transmitter: 35HT Handheld Transmitter
- Battery: 2x "AA" Alkaline (2 x 1.5V) - 6-8 hours runtime
- 2x "AA" rechargeable Ni-MH (2 x 1.2V)
- Deviation: ±40kHz @ 1kHz Modulation
- MIC Input: - 11dBm
- Mute Switch: On/Off
- RF Power: 25mW
- Display" LCD Digital
- Dimensions (LxDiameter)" 9.2 x 1.89" (234.5 x 48mm)
- Weight: 9.5oz (270g)
