The BOYA BY-WXLR8 PRO XLR Transmitter for BY-WM8 Pro System gives you 48 channels, a wide-switching RF bandwidth, and a lockable XLR input. An Auto-lock feature prevents accidental adjustments during recording. In addition to the XLR input, the unit provides a lockable 3.5mm TRS input. Power the device with two AA batteries, and use it to capture audio for videography, field recording, ENG, and more.

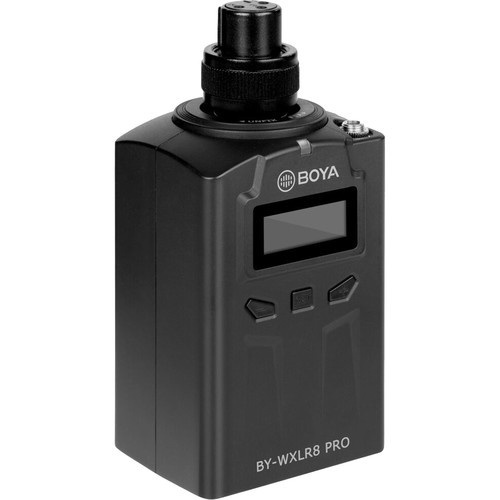

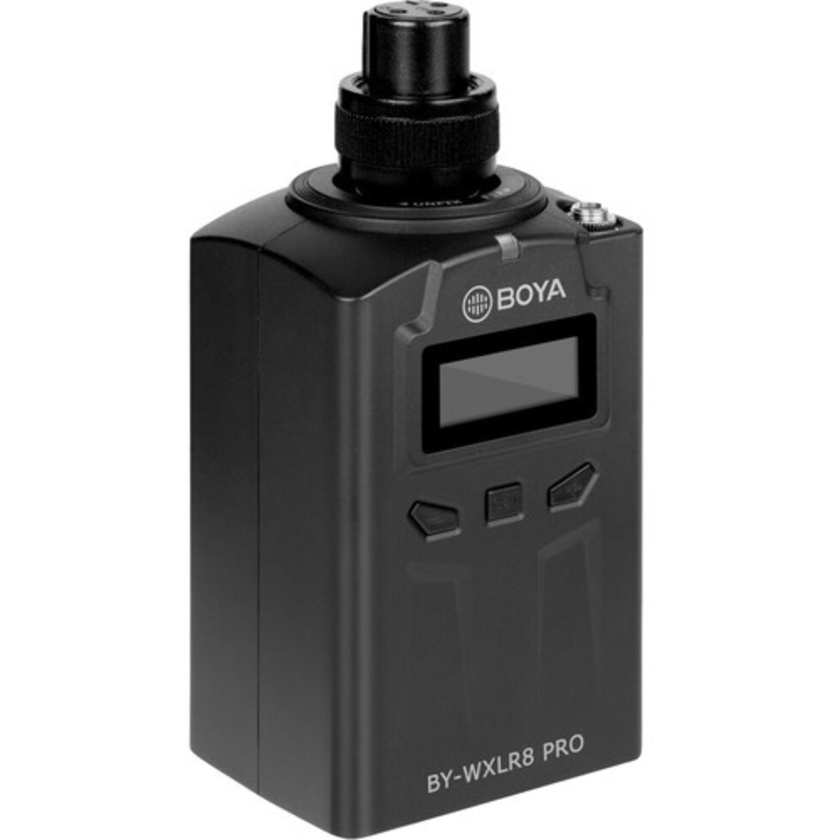

BOYA BY-WXLR8 PRO XLR Transmitter for BY-WM8 Pro System
This product is no longer available
Features
- UHF Plug-On Transmitter for Microphones
- 24 MHz Bandwidth
- Pilot Tone
- Auto-Lock Prevents Accidental Adjustment
- Lockable XLR & 3.5mm TRS Inputs
- Powered by AA Batteries
Description
Specifications
| Wireless Technology | Digital UHF |
| RF Frequency Band | A: 556.71 to 575.98 MHz B: 576.39 to 595.66 MHz |
| RF Bandwidth | 24 MHz |
| Encryption | Yes |
| Transmitter | |
| Transmitter Type | Plug-On |
| RF Output Power | < 10 mW |
| Audio I/O | 1 x XLR 3-Pin Female Input (Lockable) 1 x 1/8" / 3.5 mm TRS Female Input (Lockable) |
| Frequency Response | 20 Hz to 20 kHz |
| Power Requirements | Battery |
| Battery Type | 2 x AA, 2 x Rechargeable |
| Display & Indicators | 1 x OLED |
| Dimensions | 5.7 x 55 x 11.7 cm |
| Weight | 162 g |
In The Box
- BOYA BY-WXLR8 PRO XLR Transmitter for BY-WM8 Pro System
Reviews
(no ratings yet)Details
- Product: BOYA BY-WXLR8 PRO XLR Transmitter for BY-WM8 Pro System
- Manufacturer: BOYA
- Model: BY-WXLR8 Pro
- SKU: BY-WXLR8 Pro
- RM Product #: 98274
- Warranty: 1 year manufacturer warranty
