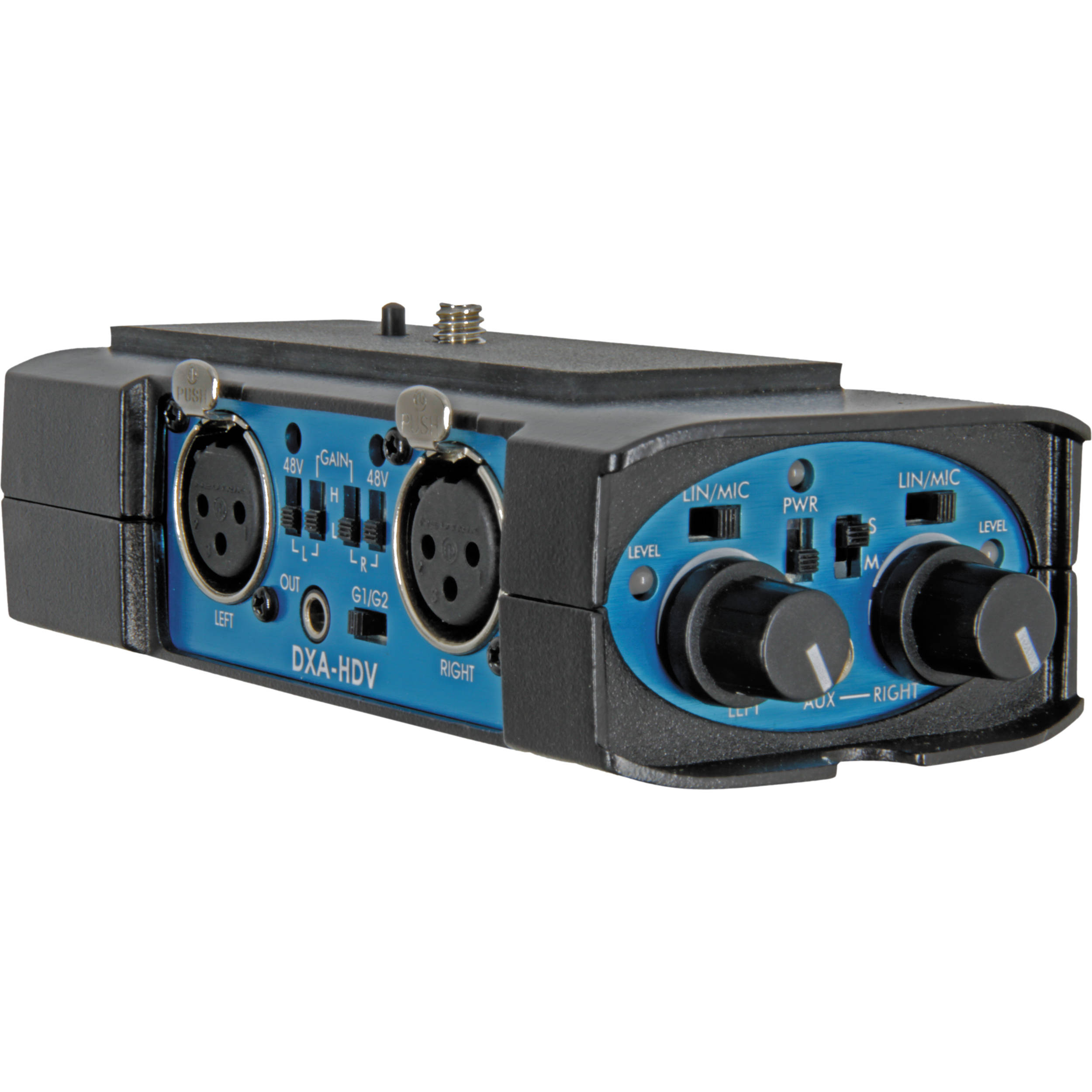

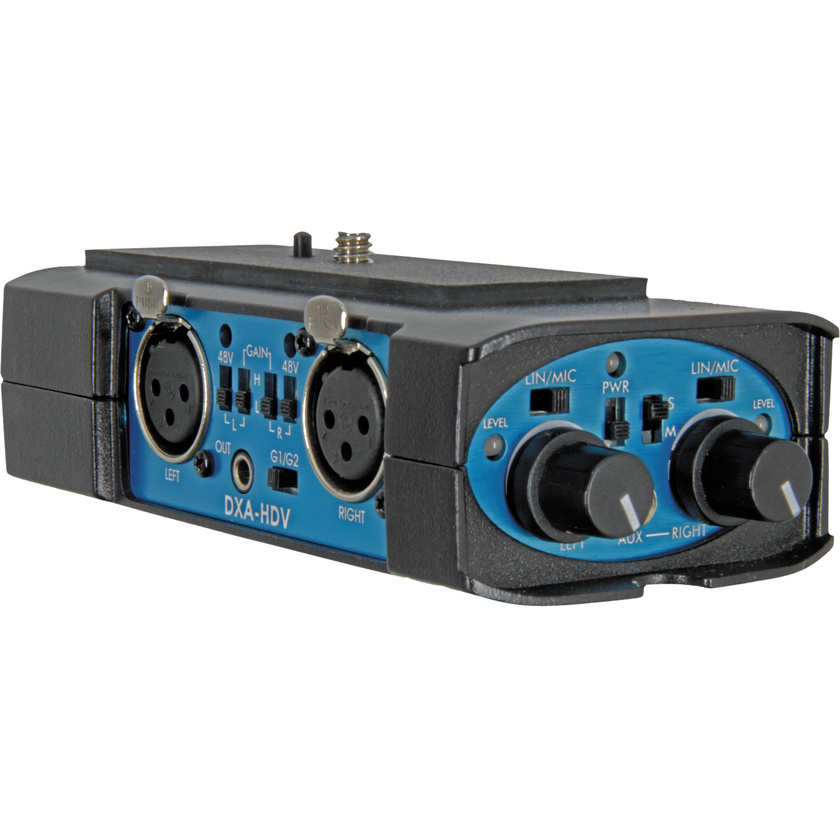

The DXA-HDV High-Performance Camcorder Adapter from Beachtek is a dual-channel XLR adapter with mic preamps and phantom power, which allows you to connect pro-quality mics and line-level sources to your HDV camcorder's mic input or to any other recording device with an 1/8" (3.5mm) mini audio input. The adapter is powered by a single 9V battery. Housed in a durable, die-cast aluminum enclosure, the DXA-HDV has a mounting bolt, and can be attached to the camera itself, or to a standard tripod. You'll find controls and jacks on two of the unit's four sides. The Control Panel, which is on the front of the unit, features the main power switch, power indicator light/low-battery indicator, channel output-level knobs, line/mic selector switches, a switch that toggles the output from mono to stereo, an 1/8" aux input, and level-indicator lights for both channels. The Side Panel houses the two XLR jacks, two 48V phantom power switches, a pair of low/high gain switches (the high setting provides a 15 dB boost), the 1/8" camcorder output jack, and a ground switch. If you're looking to improve the audio on your video productions, the DXA-HDV provides an excellent and cost-effective solution.
Key Features
Inputs
- Two balanced XLR connectors for professional mics One unbalanced 1/8" (3.5mm) TRS stereo mini-jack input for consumer mics
Output
- Unbalanced stereo mini-plug jack for connection to the camcorder
Phantom Power
- Switchable 48V phantom power for both channels
Level Indicators
- LED's show proper signal level for each channel at a glance
Gain Switch
- High/Low gain setting for each channel
Level Controls
- Adjusts signal level output on each channel
Mic/Line Switches
- Allows connections of microphones or mixers for versatility
Low-Noise Preamplifiers
- Ultra-low-noise circuitry for superb audio Wide bandwidth for full rich sound
Power
- Easily replaceable 9V battery Low-battery indicator
Case
- Sturdy die-cast aluminum enclosure
Specifications
| Maximum Input Level |
Mic Level: +7 dBu Line level: +26 dBu |
| Output Level |
Nominal mic levels |
| Frequency Response |
20 Hz to 20 kHz |
| THD |
Less than 0.02% @ 1 kHz, -30 dBu input |
| S/N Ratio |
88 dB @ 1 kHz, -30 dBu input |
| Gain |
LO gain: 0 dB HI gain: 15 dB |
| Phantom Power |
Dual regulated 48V power supplies Current to 14 mA (direct short) |
| Level Meters |
Green: -48 dBu to -36 dBu Red: -35 dBu and over |
| Battery Type |
One 9V alkaline or lithium battery |
| Battery Life |
3 hours typical with alkaline battery (no phantom) 8 hours typical with lithium battery (no phantom) |
| Dimensions |
5.5 x 2.5 x 1.5" (140 x 64 x 38mm) |
| Weight |
10 oz (0.28 kg) |
