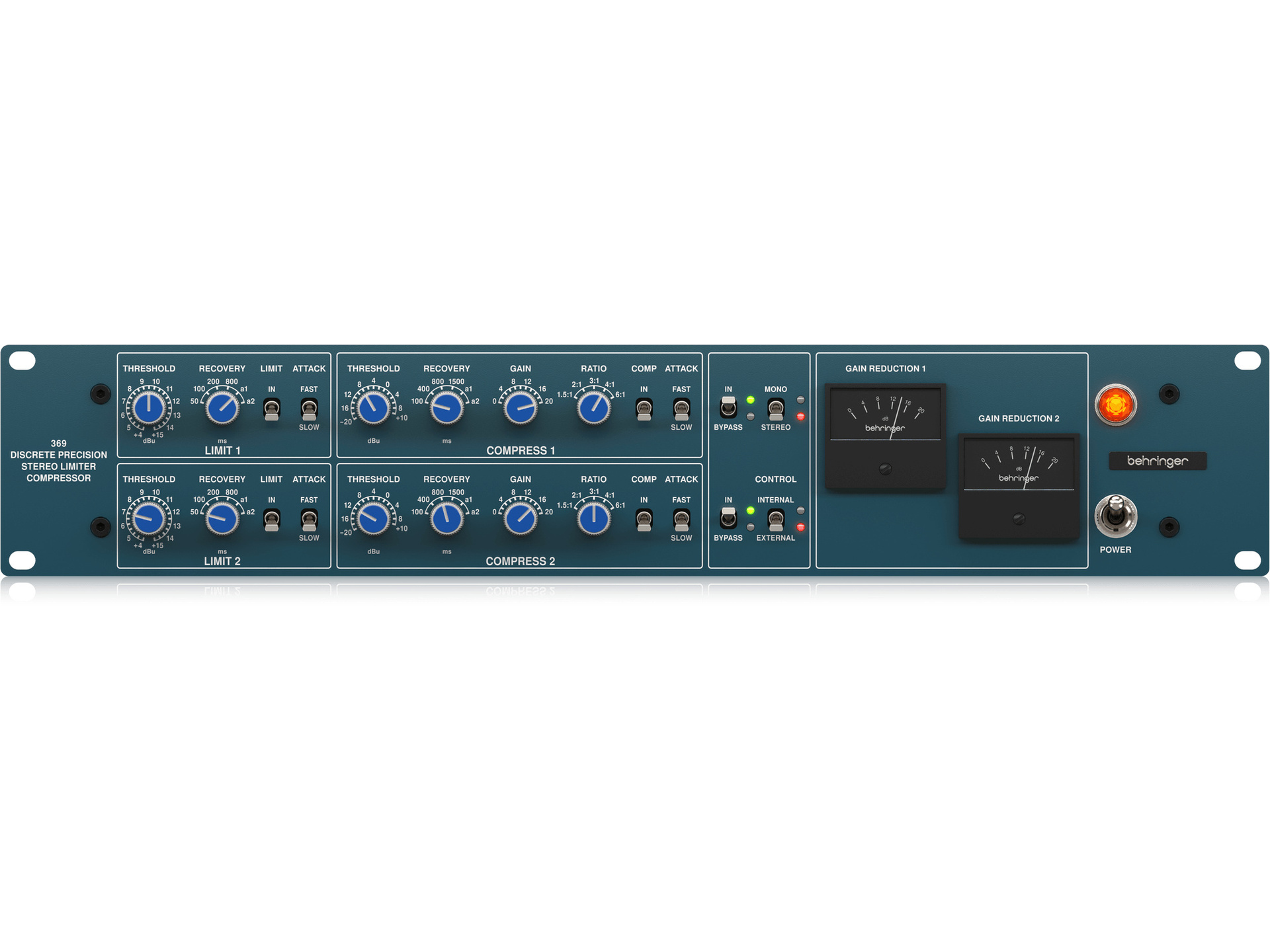

Behringer 369 2-Channel Compressor and Limiter

Product #119528 | SKU 369 | Behringer
On Backorder ETA to be confirmed what does this mean?
Our Price $1,099
On Backorder ETA to be confirmed what does this mean?
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in ETA to be confirmed
Click & Collect

Features

  • 2-channel stereo compressor and limiter
  • Midas input and output transformers
  • Completely discrete signal path
  • Dedicated threshold selector
  • 2 vintage-style gain reduction meters
  • Rugged 2U rackmount chassis

Description

Compression has always been crucial for controlling the dynamics of audio signals. In the early days of broadcast, compression was necessary to prevent the live-transmitted signal from overwhelming listeners' speakers at home. Even today, controlling dynamics remains a top priority. Music producers have long appreciated the "glue-like" effect that quality compressors add to stereo mixes, gently uniting individual tracks to create a uniform and powerful sound. The Behringer 369 2-Channel Compressor and Limiter is a modern interpretation of the iconic Neve 33609 stereo compressor, capturing the essence and legacy of the original while incorporating modern features. The engineering team behind the 369 includes members who worked closely with audio legend Rupert Neve, ensuring the new compressor stays true to its predecessor's spirit.

The 369 features both compressor and limiter functions, each with distinct modes for controlling audio dynamics. Rotary switches allow for precise and repeatable settings, ensuring consistent compression across recordings and mastering sessions. The compressor section offers a musical approach to sculpting dynamic range, with adjustable threshold, recovery, gain, and ratio controls. Compression ratios range from subtle to aggressive, meeting the needs of any track. With presets on the recovery, the 369 automatically adapts to incoming signals for smooth operation and musical dynamics.

In addition to compression, the limiter function of the 369 provides a more aggressive approach to controlling peaks and dynamics. Threshold and recovery controls allow for fine-tuning of peak levels and bounce-back times, offering flexibility in achieving the desired sound. The compressor can operate in stereo or mono mode, with the option to bypass individual settings for increased flexibility. A control switch enables internal or external control, allowing for seamless integration with other audio equipment.

The 369 is housed in a sturdy 2U rackmount chassis, making it suitable for both studio and live sound applications. Whether used in a fixed studio setup or on the go, the 369 offers pristine dynamics control in a compact and reliable package. With its faithful nod to the Neve 33609 and modern features, the Behringer 369 is a versatile tool for shaping audio dynamics in any production environment.

Specifications

Audio Inputs
Type 2x XLR, transformer balanced
Impedance 10 kΩ default / 600 Ω internal option
Max. input level > +26 dBu
Audio Outputs
Type 2x XLR, transformer balanced
Impedance < 75 Ω balanced
Max. output level > +26 dBu with 600Ω Load
System Specifications
Frequency response 20 Hz to 20 kHz, ±0.5 dB
Distortion (THD+N) < 0.03%, 50 Hz - 20 kHz, +4 dBu, compressor & gate in, attack = slow
Noise -79 dBu, 22 Hz - 22 kHz unweighted, compressor & gate in, attack = slow
Circuit Discrete Class-A
Limiter
Threshold 2x Rotary switches, +4 dBu to +15 dBu in 0.5 dBu steps
Recovery 2x Rotary switches, 50 ms, 100 ms, 200 ms, 800 ms, a1 100 ms – 2 s, a2 50 ms – 5 s
Limit in/out 2x Toggle switches
Attack fast/slow 2x Toggle switches, Fast = 2 ms. Slow = 4 ms
Compressor
Theshold 2x Rotary switches, +4 dBu to +15 dBu in 0.5 dB steps
Recovery 2x Rotary switches, 100 ms, 400 ms, 800 ms, 1500 ms, a1 100 ms – 2 s, a2 50 ms – 5 s
Gain 2x Rotary switches, 0 dB to +20 dB in 2 dB steps
Ratio 2x Rotary switches, 1.5:1, 2:1, 3:1, 4:1, 5:1
Comp in/out 2x Toggle switches
Attack fast/slow 2x Toggle switches, Fast = 3 ms. Slow = 6 ms
Gain reduction meters 2x Analogue meters, 0 dB to 20 dB
Controls
Bypass/In 2x Toggle switches, true relay bypass
Mono/stereo Toggle switch, stereo mode links the sidechains together.
Internal/external Toggle switch, internal = local switch control, external = remote control
External control connector 15 pin female D connector for remote control of bypass, mono/stereo. Sidechain link
