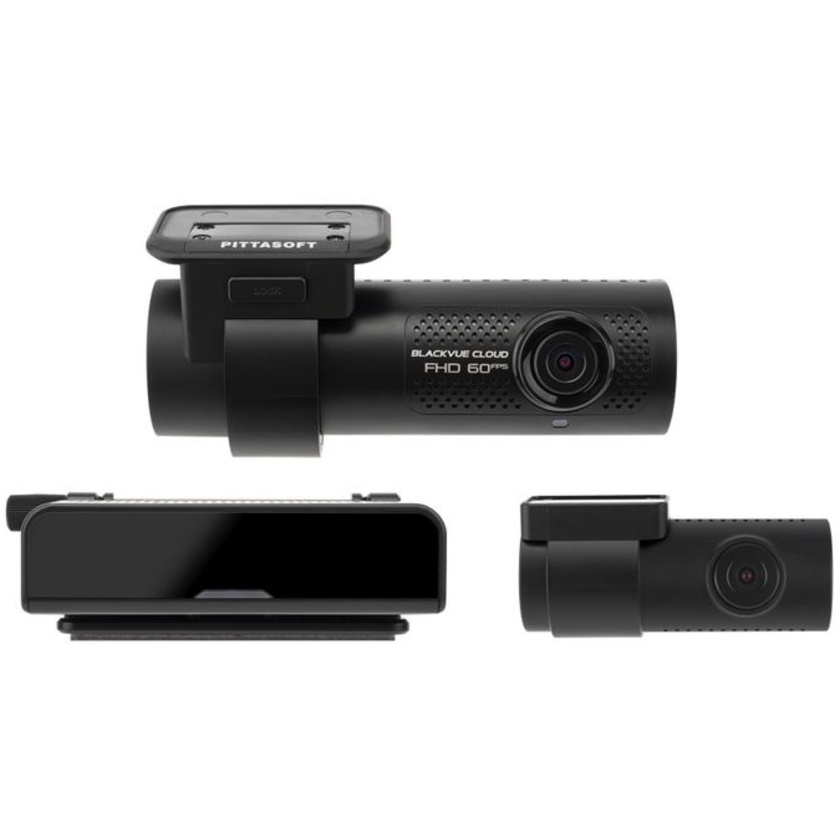

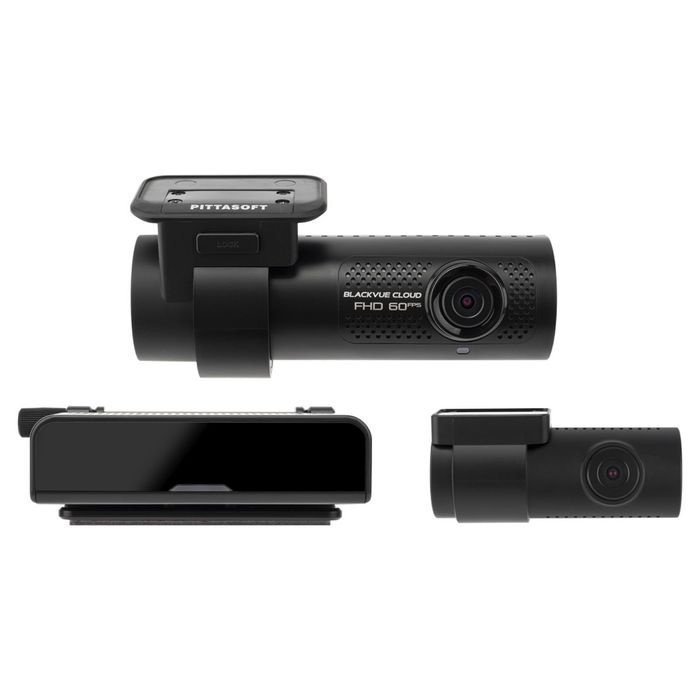

BlackVue DR750X-3CH DMS Plus Full HD Dashcam System with 2 x 32GB Micro SD Card

Product #98690 | SKU DR750X-3CH DMS PLUS | BlackVue
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 3-Channel Dashcam w/ Driver Monitoring Camera
  • Front/Rear Cameras w/ Sony STARVIS Sensors
  • DMS Cam Detects Signs of Drowsiness or Distraction
  • Built-in GPS, Wi-Fi and Parking Mode Support

Description

The BlackVue DR750X-3CH DMS Plus is a triple-channel Cloud dash cam with a special-purpose driver-monitoring camera (DMC100). Both front and rear cameras use back-illuminated Full HD Sony STARVIS image sensors for best image quality under any light. The infrared Driver-Monitoring Camera records and detects signs of drowsiness or inattentive driving and alerts you in real time.

Key Features:

  • Dual STARVIS sensors in Full HD 1080p (front 60 / rear 30 frames per second / 139° view angle). The back-illuminated STARVIS image sensors produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.
  • IR Driver-Monitoring Camera (DMC100) records even in full darkness. With its infrared illumination LEDs, the Driver-Monitoring Camera can monitor the driver day and night and alert of drowsiness or distracted driving.
  • As soon as a potentially dangerous situation is detected, the DMC100 emits a beep to alert the driver and triggers push notifications if connected to the Cloud.
  • Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
  • With the free BlackVue Cloud service, check on your car from anywhere, anytime.
  • Seamless Pairing with the BlackVue App. Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.
  • GPS: visualise the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
  • Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
  • DR750X Plus Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Specifications

Model Name DR750X-3CH DMS Plus
Channel 3CH
Highlights Full HD + Full HD + HD (Front + Rear + Interior), Cloud, Wi-Fi, GPS, Dual Sony Sensors
Product Dimensions Front: Black / W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105 g (3.70 oz)
Rear: Black / W 67.4 mm x H 25 mm / 25 g (0.88 oz)
IDMS : Black / L: 113.5mm x W 66.4 mm x H 38.4mm / 139 g (4.90 oz)
Rear Camera Connection Coaxial cable
Memory Support microSD card up to 256GB (32GB card included)
Recording Modes – Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
Parking Mode YES (with 3-wire hardwiring cable – included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
DMS: CMOS Sensor (Approx. 1M Pixel)
Viewing Angle Front : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear : Diagonal 139°, Horizontal 116°, Vertical 61°
DMS : Diagonal 54°, Horizontal 43°, Vertical 32°
Resolution Frame Rate Front / Rear / Interior
Full HD (1920×1080) @ 60 fps – Full HD @ 30 fps (1920×1080) – HD (1280×720) @ 10 fps*
*Frame rate may vary during Wi-Fi streaming.
Video Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Front / Rear / Interior
Highest (Extreme): 16 + 10 + 8 Mbps
Highest: 12 + 10 + 8 Mbps
High: 10 + 8 + 6 Mbps
Normal: 8 + 6 + 4 Mbps
Format Free YES (Adaptive)
Event File Overwrite Protection YES (up to 51)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS Built-in (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Front: Recording LED, GPS LED, B/W/L LED, Front Security LED
Rear: Rear Security LED
DMS: Status LED
IR Illumination DMS: 940 nm (4 Infrared (IR) LEDs)
Button Button: Wi-Fi ON/OFF (Press)
Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
Operation Temperature ‘-20°C ~ 75°C / -4°F ~ 167°F
Storage Temperature ‘-20°C ~ 80°C / -4°F ~ 176°F
High Temp Cut Off 80°C (176°F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (Wi-Fi On / GPS On / 3CH) : 540mA / hour
Normal Mode (Wi-Fi Off / GPS On / 3CH) : 510mA / hour
Parking Mode (Wi-Fi On / GPS Off / 3CH) : 495mA / hour
Parking Mode (Wi-Fi Off / GPS Off / 3CH) : 465mA / hour
* Actual power consumption may vary depending on use conditions and environment.
* Approximately, 50mA may increase in electric current when IR LED is turned ON.
Software BlackVue Viewer
* Windows 7 or higher and Mac OS X Sierra (10.12) or higher
Application BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher)
Others Adaptive Format-Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)

In The Box

  • Front Camera
  • Rear Camera
  • DMS Camera
  • Quick start guide
  • User guide
  • Pry tool
  • Cable clips (12EA)
  • Allen wrench
  • Screws
  • microSD card (2EA)
  • microSD card reader
  • Spare mount sticky pads
  • Hardwiring power cable
  • Cigarette lighter power adapter
  • Rear camera connection cable (6m / 19.68ft)
  • USB Hub
  • DMS camera connection cable (USB, 3m / 9.84ft)
  • DMS camera hardwiring power cable (2p)

Reviews

0.0 (no ratings yet)

Details

  • Product: BlackVue DR750X-3CH DMS Plus Full HD Dashcam System with 2 x 32GB Micro SD Card
  • Manufacturer: BlackVue
  • Model: DR750X-3CH DMS PLUS
  • SKU: DR750X-3CH DMS PLUS
  • RM Product #: 98690
  • Warranty: 1 year manufacturer warranty
