The BlackVue DR770X-2CH Truck LTE Front & Commercial Rear Camera Full HD Dashcam is the perfect Dashcam for Trucks and Heavy Vehicles: The external waterproof rear cam with embedded IR lights and up to 20m coaxial cable is ideal for most large vehicles.

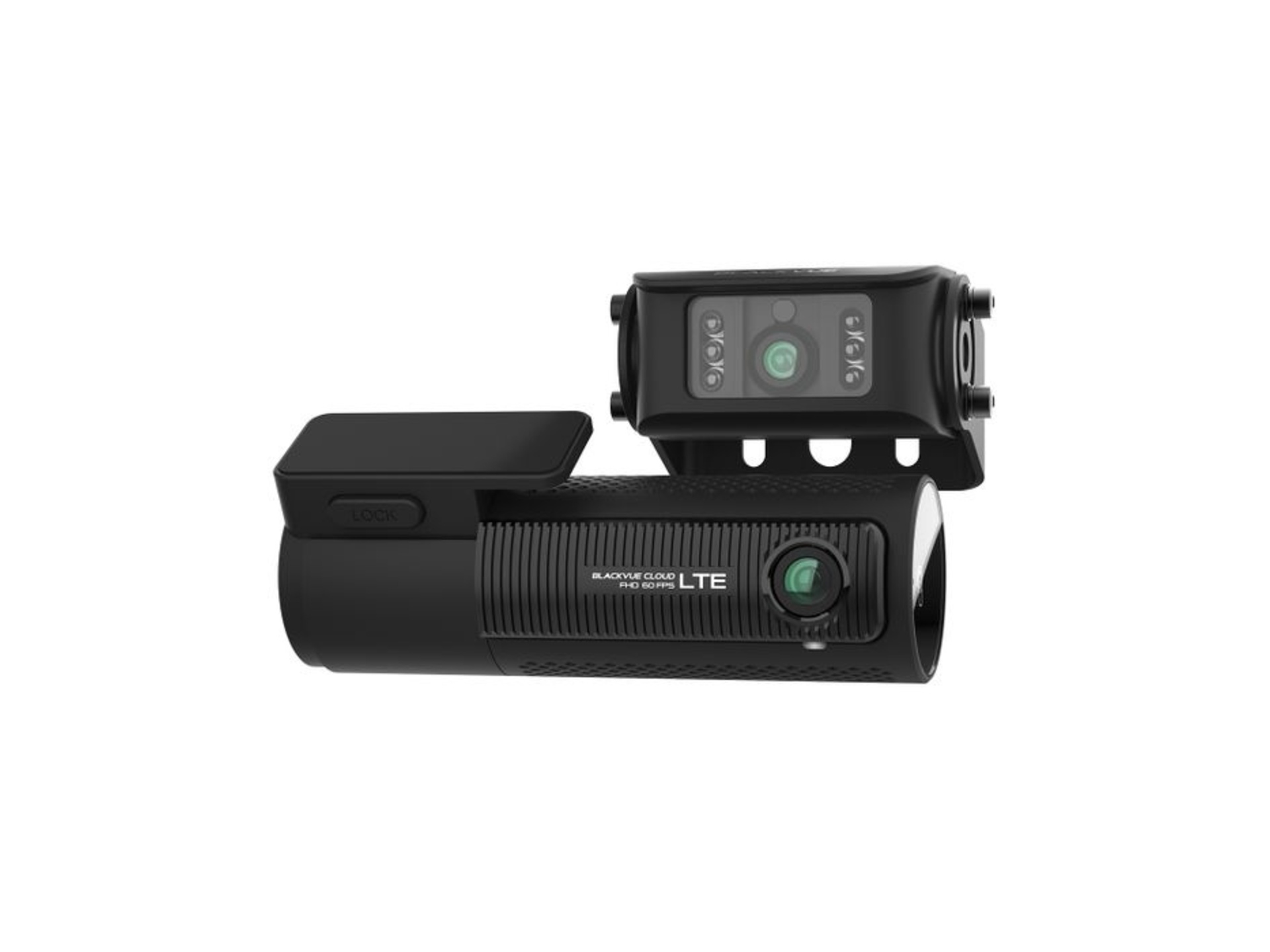

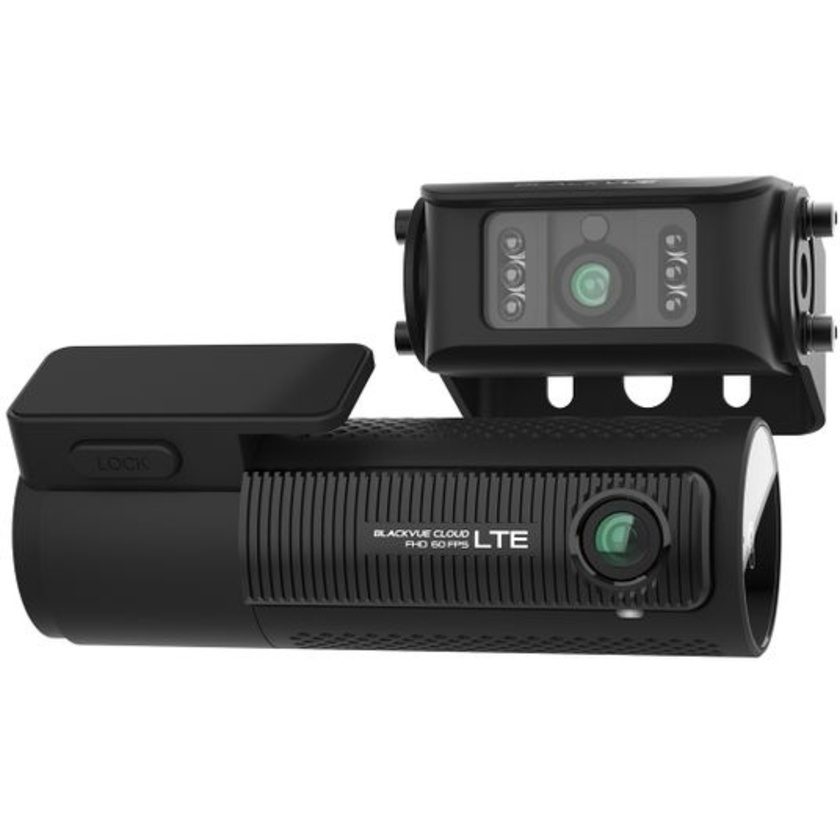

BlackVue DR770X-2CH Truck LTE Front & Commercial Rear Camera Full HD Dashcam (64GB)
This product is no longer available
Features
- Waterproof rear cam
- Embedded IR lights
- 20m coaxial cable
Description
Specifications
| Front Camera | 1080p Full HD at 60FPS with a 139 degree wide angle, |
| Rear Camera | 1080p Full HD @30FPS with a 116 degree angle of view & 2.1mp CMOS sensor |
| Native Parking Mode | Hardwiring cable included Parking Mode accessories support |
| Infrared External Rear Camera | With rugged metal waterproof casing the rear camera is built to withstand most weather conditions. |
| Waterproof Coaxial Cable | The 15m (optional 20m) high-quality waterproof coaxial cable connects the front and rear cameras. |
| Memory Support | microSD card up to 512GB |
| Parking Mode | YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications | YES |
| Imaging Sensor | Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 116°, Horizontal 97°, Vertical 51° |
| Resolution Frame Rate | Front: Full HD (1920×1080) @ 60 fps Rear: Full HD (1920×1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11n (2.4~2.4835 GHz)) |
| Cloud Compatible | YES |
| GPS | Built-in |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| Rear Camera IR Illumination | 940 nm (4 Infrared (IR) LEDs) |
| Operation Temperature | -20? – 70? (-4°F – 158°F) |
| Storage Temperature | -20? – 70? (-4°F – 158°F) |
| High Temp Cut Off | Approx. 80 °C (176 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
In The Box
- BlackVue DR770X-2CH Truck Front & Commercial Rear Camera Full HD Dashcam (64GB)
Reviews
(no ratings yet)Details
- Product: BlackVue DR770X-2CH Truck LTE Front & Commercial Rear Camera Full HD Dashcam (64GB)
- Manufacturer: BlackVue
- Model: DR770X-2CH-TRUCK-LTE
- SKU: DR770X-2CH-TRUCK-LTE
- RM Product #: 118772
- Warranty: 1 year manufacturer warranty
