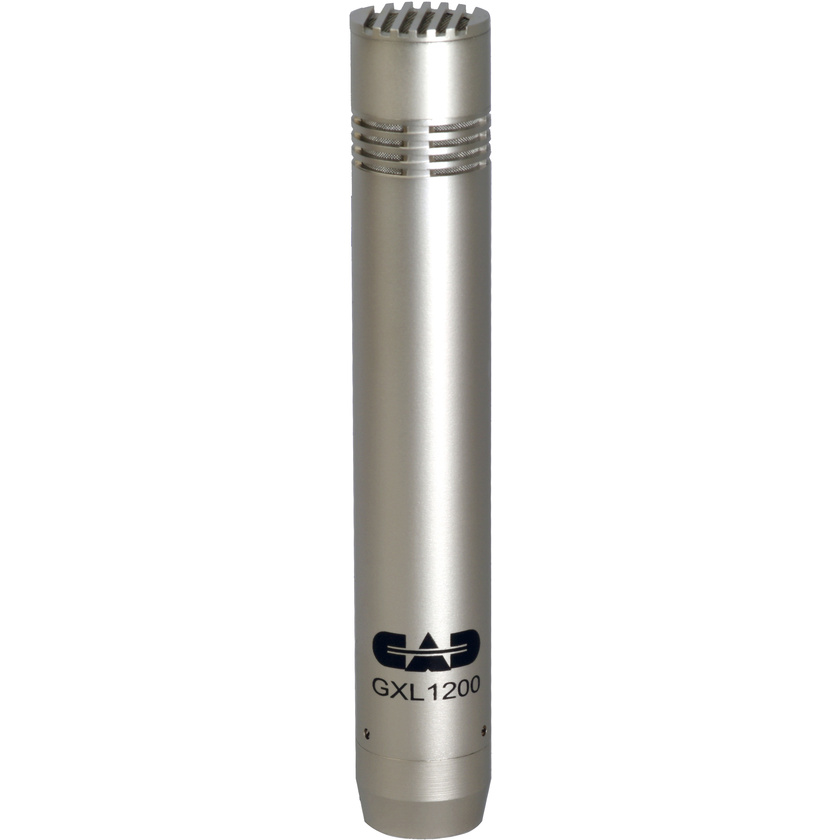

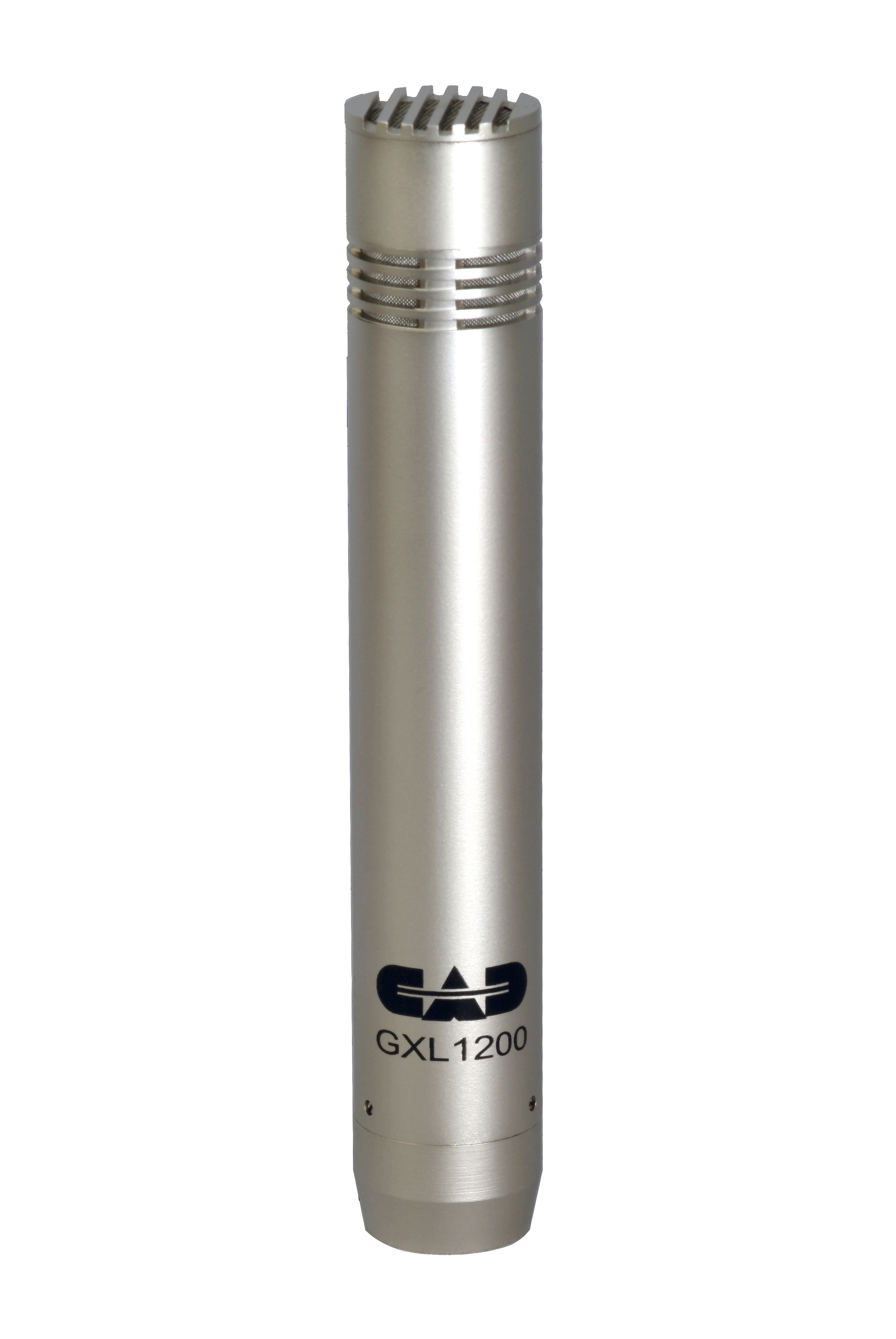

The CAD GXL-1200 is a small diaphragm condenser microphone with a cardioid pattern, also effective in minimizing noise, ambiance and feedback. The GXL-1200 is intended for general instrument pick up, although proven highly effective for vocals. The high SPL handling enables excessively loud audio signals to be reproduced without noise or distortion. The GLX-1200 is housed in a slim profile, rugged enclosure ideal for spot capturing vocals and instruments such as guitar, strings, wood winds, overheads, cymbals, percussion and more.
Key Features
Cardioid Polar Pattern
- The cardioid polar pattern is effective in minimizing noise and ambiance at the off-axis sections of the microphone capsule.
High Sensitivity and SPL Handling
- The high sensitivity, linear frequency response and high SPL handling allows the microphone to be used in any recording or sound reinforcement application.
Specifications
| Transducer |
Externally Biased True Condenser |
| Polar Pattern |
Unidirectional (Cardioid) |
| Frequency Response |
30 Hz - 20 kHz |
| Signal-to-Noise Ratio |
+14dB (A-weighted) |
| Power Requirements |
P24V or P48V Phantom Power |
| Output Impedance |
Less than 200 ohms |
| Output Connectors |
3 pin XLR type |
| Pad |
No |
| Low Frequency Roll-Off |
No |
| Dimensions |
.88 x 5.33" (22.35 x 135.39mm) (Diameter x Length) |
| Weight |
4.44 oz. (126 grams) |
