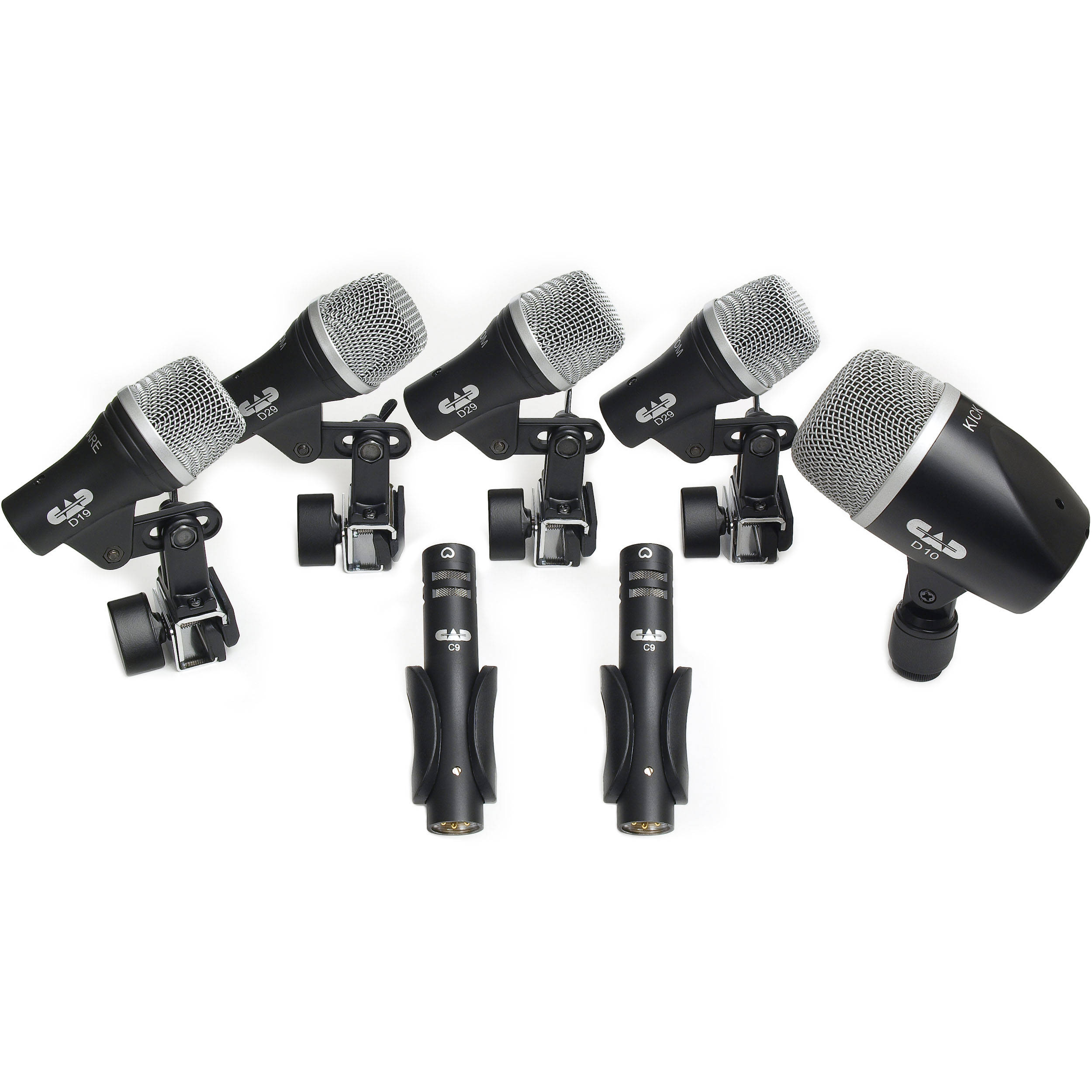

The CAD Stage 7 Drum Microphone Pack is an affordable 7-piece drum microphone package well suited for performing, rehearsing and project recording. The Stage 7 consists of the D10 dynamic kick drum microphone, 3x D29 tom microphones, a D19 snare drum mic and 2x C9 overhead microphones. All the microphones include mounting hardware and are shipped in a hardshell case for transport and storage.
Specifications
| Transducer |
D10, D29 & D19: Moving Coil Dynamic C9: Condenser |
| Polar Pattern |
D10, D29 & C9: Cardioid D19: Supercardioid |
| Frequency Response |
D29: 90Hz to 13kHz D10: 30Hz to 12kHz D19: 90Hz to 14kHz C9: 40Hz to 13kHz |
| Sensitivity |
D29: -53dBV (2.2mV) @ 1 Pa D10: -66dBV (0.5mV) @ 1 Pa D19: -56dBV (1.6mV) @ 1 Pa C9: -41dBV (8.9mV) @ 1 Pa |
| Impedance |
D29: 560 ohms D10: 60 ohms D19: 300 ohms C9: 230 ohms |
| Filter |
C9: Hi-pass 200Hz, 6dB/oct |
| Pad |
C9: 10dB |
| Power |
C9: P12, P24, P48, 11mA(P48) |
