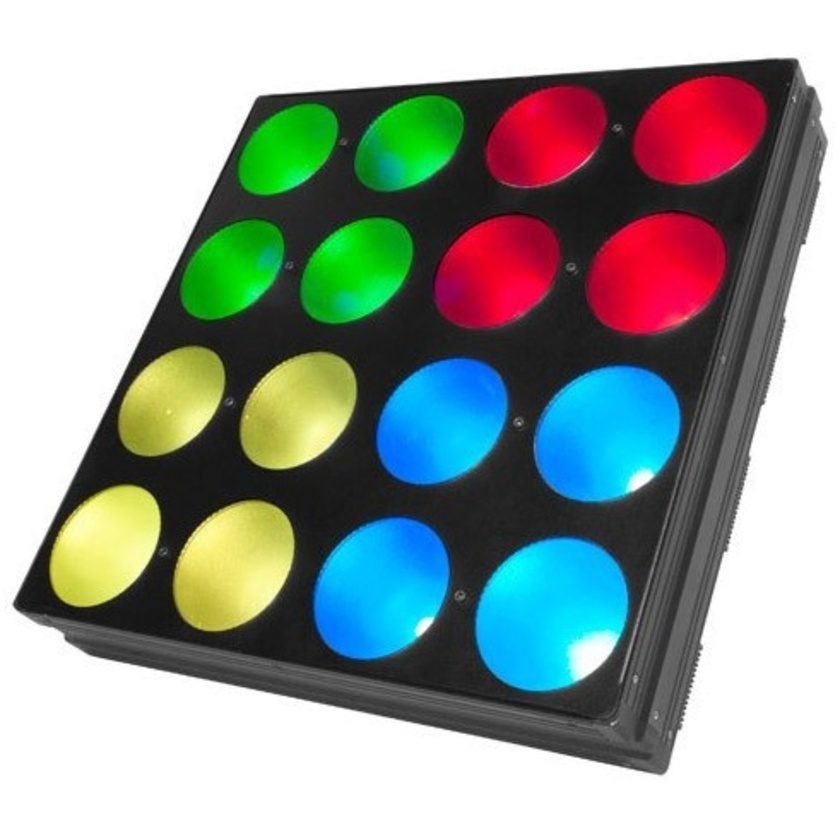

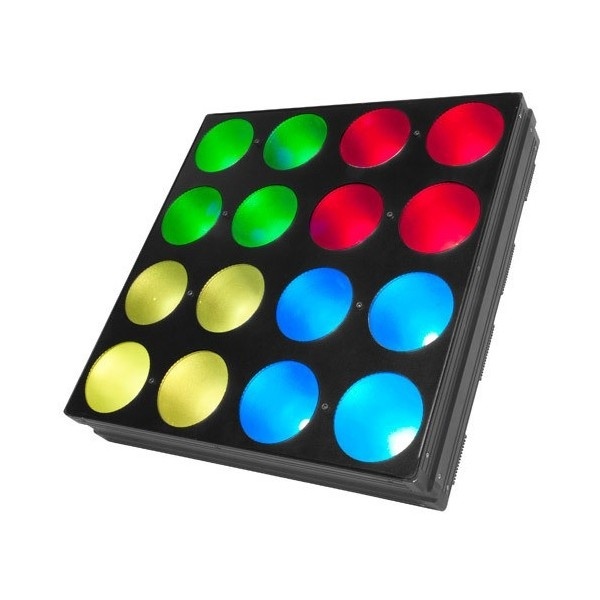

The CHAUVET Nexus™ 4x4 is both a bold eye-candy and a tour-ready wash light capable of delivering at once the sizzle of a pixel mapping display and a robust light output afforded by 16 20-watt RGB COB LEDs. The combination of COB emitters and a clever reflector design yields a striking, diffused light richly drenched in saturated hues. Nexus™ 4x4 is controllable via Art-Net, Kling-Net and DMX protocols and features interlocking hardware to build large arrays. Whether in use for front viewing or as a backdrop, Nexus™ 4x4 promises a hard-to-match visual impact.
CHAUVET Nexus 4x4
This product is no longer available
Features
- Pixel-mapping RGB blinder allows you to achieve vibrant colors with bright COB LEDs
- Increase pixel mapping options by controlling pixels individually
- Build large arrays by linking multiple panels together with integrated locks
Description
Specifications
| OPTICAL | |
| Light Source: | 16 LEDs (tri-color RGB) 27 W, (2 A), 50,000 hours life expectancy |
| Color Temperature (range): | 2,800 to 10,000 K |
| Beam Angle: | 45° |
| Field Angle: | 75° |
| Illuminance (total): | 484 lux @ 5 m |
| Pixels: | 4 x 4 |
| Pixel Pitch: | 115 mm |
| Pixel Density: | 64/m2 |
| DYNAMIC EFFECTS | |
| Dimmer: | Electronic |
| Strobe Rate: | 0 to 20 Hz |
| Standalone Color Mixing: | Yes |
| Built-in Automated Programs: | Yes |
| CONSTRUCTION / PHYSICAL | |
| Dimensions (single unit): | 18.07 x 6.61 x 18.07 in (462 x 168 x 462 mm) |
| Dimensions (roadcase): | 37.99 x 20.67 x 27.56 in (965 x 525 x 700 mm) |
| Weight (single unit): | 28.6 lb (13 kg) |
| Weight (roadcase): | 81.6 lb (37 kg) |
| Exterior Color: | Black |
| Housing Material: | Aluminum alloy and steel |
| CONNECTIONS | |
| Power Connection: | Edison (Local) plug to Neutrik powerCON |
| Power Input: | Neutrik powerCON |
| Power Output: | Neutrik powerCON |
| Data Connectors: | 3- and 5-pin XLR, Neutrik etherCON |
| Cable Length (power): | 5 ft (1.5 m) |
| CONTROL | |
| Control Protocol: | Art-Net, Kling-Net, DMX |
| DMX Channels: | 3, 5, 9, 48 or 53 |
| Art-Net Channels: | 48 |
| ELECTRICAL | |
| Input Voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking: | 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V |
| Power and Current: | 401 W, 3.35 A @ 120 V, 60 Hz |
| Power and Current: | 393 W, 1.90 A @ 208 V, 50 Hz |
| Power and Current: | 394 W, 1.71 A @ 230 V, 50 Hz |
In The Box
- CHAUVET Nexus 4x4
