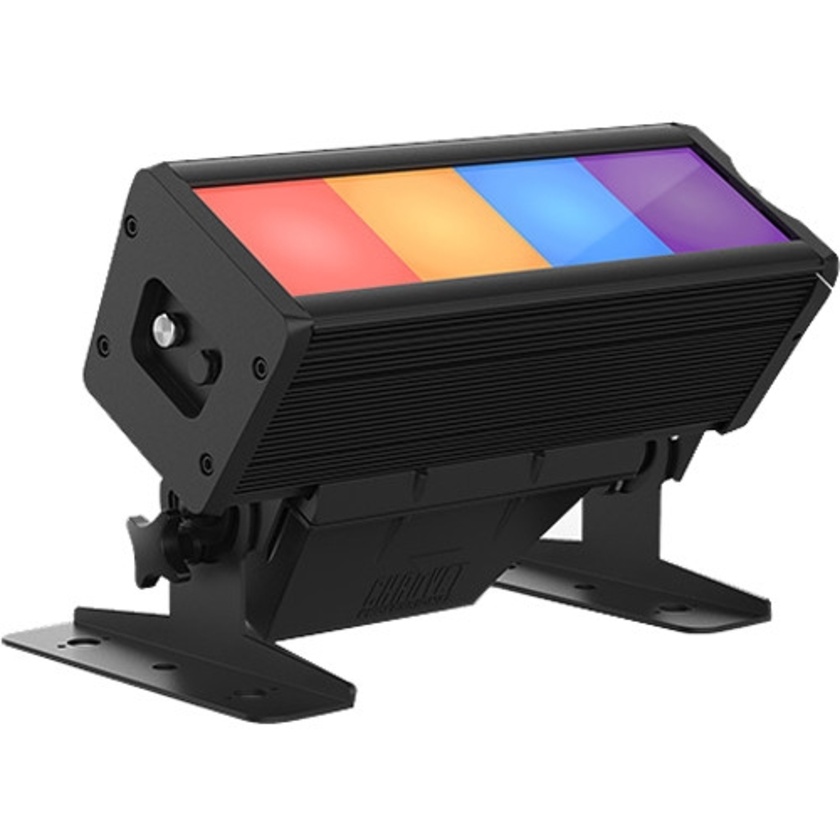

CHAUVET PROFESSIONAL COLORado Solo Batten 4 Light

Product #79775 | SKU COLORado Solo Bat 4 | Chauvet
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • RGBAW 4-Cell LED Batten
  • Four Square Sections
  • Control Seamlessly or Individually
  • 3200 - 10,000K Colour Temperature Presets
  • IP65 Rated

Description

Designed for touring, festivals, installations, and theatrical productions, the COLORado Solo Batten 4 Light from CHAUVET PROFESSIONAL is an RGBAW 4-cell LED batten with seamless end-to-end colour mixing. This fixture is engineered with four homogenised square sections that can be controlled individually. They appear seamlessly together without separation or dimmed lens corners and create an endless variety of colour control and pixel mapping effects. The unit is IP65 rated and equipped with DMX and Ethernet connectivity. An Omega bracket and wall wash filter are included for quick and easy truss/pipe mounting.

Features

  • Completely homogenised colour with no separation or dimmed lens corners
  • IP-rated power, DMX, and Ethernet connections
  • Colour temperature presets from 3200 to 10,000K
  • Selectable smooth dimming curves for programming versatility
  • Built for touring, live event, television, and theatrical productions
  • Large, easy-to-navigate display with password protection
  • Built-in automated programmes
  • Customisable programmes
  • Recall custom programmes

Specifications

Light Source LEDs: 48 (8 Red, 8 Green, 8 Blue, 8 Amber, 16 White), 3 W (612 mA)
Life Expectancy: 50,000 Hours
Colour Temperature 1800 to 8000K
CRI 77.2 (3200K)
Installed Optics 18°
Beam Angle Horizontal: 18°
Horizontal with Filter: 35°
Vertical: 17°
Vertical with Filter: 16°
Field Angle Horizontal: 34°
Horizontal with Filter: 66°
Vertical: 30°
Vertical with Filter: 32°
Lumens 3730
Illuminance 1270 Lux at 16.4' / 5 m
With Filter: 432 Lux at 16.4' / 5 m
PWM Frequency 600, 1200, 2000, 4000, 6000, 25,000 Hz (Selectable)
Dimmer Electronic
Shutter/Strobe Electronic
Strobe Rate 0 to 25 Hz
Standalone Colour Mixing Yes
Colour Temperature Presets Yes
Dimming 5 Modes
Power Connection Type Edison (Local) Plug to Seetronic Powerkon IP65
Power Input Seetronic Powerkon IP65
Power Output Seetronic Powerkon IP65
Data Connectors 5-Pin IP65 XLR, Seetronic etherCON IP65
Power Cable Length 5' / 1.5 m
Control Protocol Art-Nett, DMX, Art-Nett to DMX, RDM, sACN
DMX Channels DMX:
1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56

Art-Nett:
1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
Modes 19 Personalities
Input Voltage 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking 14 Units at 120 V
24 Units at 208 V
26 Units at 230 V
Power and Current 113 W, 0.96 A at 120 V, 60 Hz (4.2 A Inrush)
110 W, 0.57 A at 208 V, 60 Hz (3.60 A Inrush)
111 W, 0.52 A at 230 V, 50 Hz (2.6 A Inrush)

Resting:
11 W, 0.09 at 120 V, 60 Hz
25 W, 0.12 A at 208 V, 60 Hz
27 W, 0.12 A at 230 V, 50 Hz
Certification COE, MET, FCC
IP Rating IP65, Temporary Outdoor/Wet Use
Ambient Temperature -4 to 113 °F / -20 to 45 °C
Exterior Colour Black
Housing Material Die-Cast Aluminium
Dimensions 14.7 x 9.1 x 10" / 37.2 x 23.0 x 25.3 cm
Accessory Holder / Gel Frame Size: 13.5 x 3.8" / 34.3 x 9.7 cm
Weight 17.2 lb / 7.8 kg

In The Box

  • CHAUVET PROFESSIONAL Colourado Solo Batten 4 Light
  • Seetronic Powerkon IP65 Power Cord
  • Wall Wash Filter
  • Omega Bracket Set
