CHAUVET PROFESSIONAL COLORdash Par H7IP RGBWAUV LED Wash Light

Product #63930 | SKU COLORdash-Par-H7IP | Chauvet
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Overview

Features seven hex-colour RGBAW+UV LEDS with a life expectancy of 50,000 hours, offering a maximum illumination of 674 lux.

Description

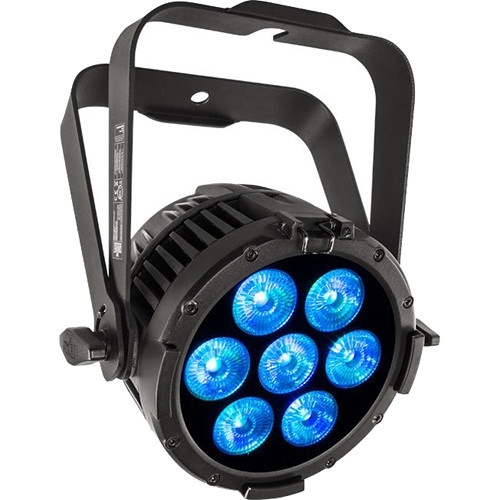

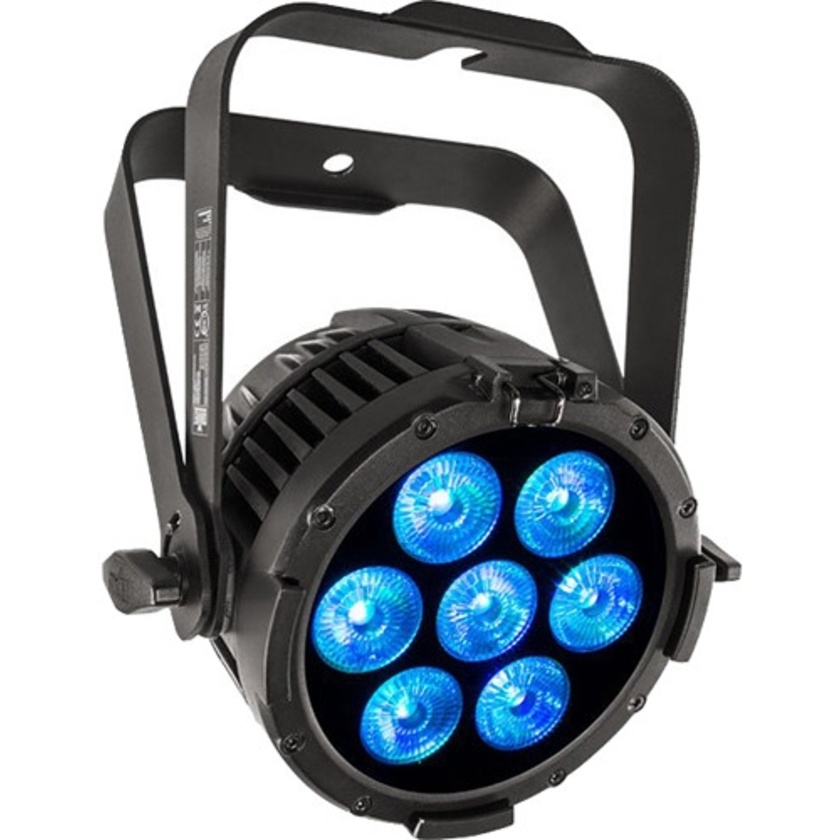

The black CHAUVET PROFESSIONAL COLORdash Par H7IP RGBWAUV LED Wash Ligh features seven hex-colour RGBAW+UV LEDs with a life expectancy of 50,000 hours. It offers a maximum illumination of 674 lux, a beam angle of 21°, and field angle of 47°. The light features a user-friendly OLED full text display and supports DMX and RDM control protocols.

Key Features:

  • Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
  • IP-rated power and DMX connections
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • RDM (Remote Device Management) for added flexibility
  • Selectable, smooth dimming curves for eliminating flicker and choppiness in fades
  • Easy-to-read OLED display with password protection and touchscreen interface
  • Double-bracketed yoke doubles as a floor stand
  • Standalone colour mixing
  • Colour temperature presets
  • Built-in automated programmes

Specifications

Light Source 7 LEDs (hex-colour RGBAW+UV) 10 W, 500 mA
50,000 hours life expectancy
Colour Temperature 2800 to 10,000K
Beam Angle 21°
Field Angle 47°
Illuminance 674 lux at 16.4' (5 m)
PWM Frequency Selectable: 600/1200/2000/4000/6000/25,000 Hz
Dimmer Electronic
Shutter/Strobe Electronic
Strobe Rate 0 to 30 Hz
Dimming Modes: 4
Power Connections Edison (Local plug to Seetronic Powerkon IP65)
Power Input Seetronic Powerkon IP65
Power Output Seetronic Powerkon IP65
Connectors Data: 5-pin IP65 XLR
Cable Length Power: 5' (1.5 m)
Control Protocol DMX, RDM
DMX Channels 6, 8, or 13
DMX Personalities 3 personalities (6, 8, 13)
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking 26 units at 120 V
46 units at 208 V
50 units at 230 V
Power and Current 63 W, 0.52 A at 120 V, 60 Hz
63 W, 0.52 A at 120 V, 60 Hz
66 W, 0.28 A at 230 V, 50 Hz
Certifications COE, MET
IP Rating IP65
Ambient Temperature -4 to 113°F (-20 to 45°C)
Housing Material Aluminium die-cast
Gel Frame Holder 6.5" (165 mm)
Dimensions 11.02 x 9.44 x 6.06" (280 x 240 x 154 mm)
Weight 7.8 lb (3.6 kg)

In The Box

  • CHAUVET PROFESSIONAL COLORdash Par H7IP RGBWAUV LED Wash Light.
  • Seetronic PowerKon IP65 Power Cord.
  • Gel Frame.

Reviews

0.0 (no ratings yet)

Details

  • Product: CHAUVET PROFESSIONAL COLORdash Par H7IP RGBWAUV LED Wash Light
  • Manufacturer: Chauvet
  • Model: COLORdash-Par-H7IP
  • SKU: COLORdash-Par-H7IP
  • RM Product #: 63930
