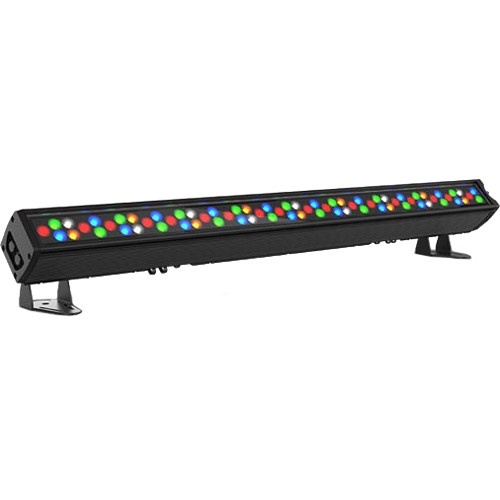

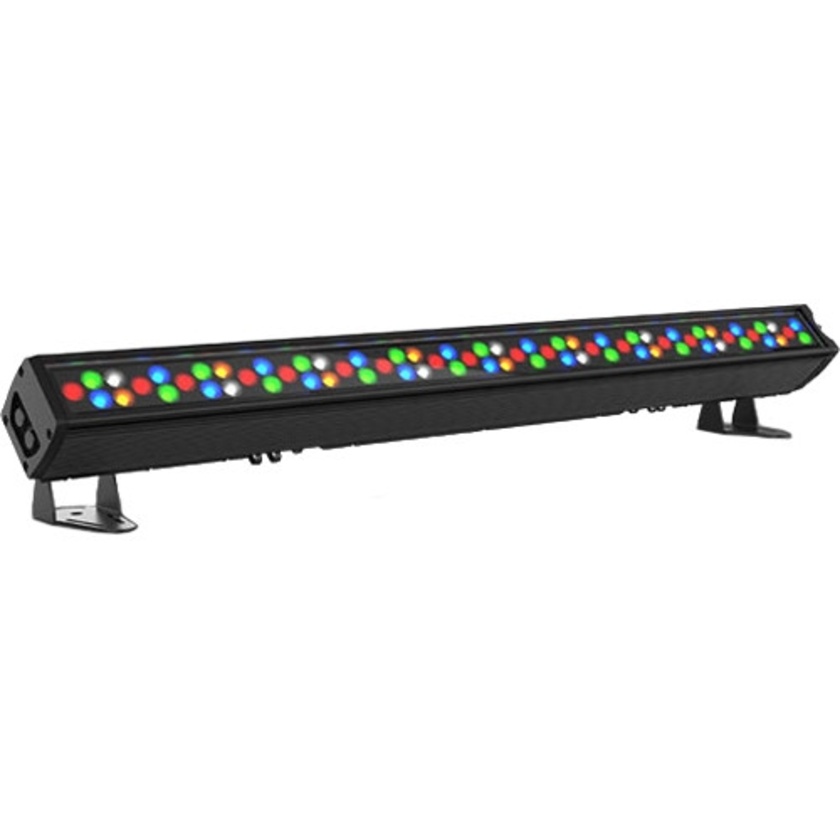

CHAUVET PROFESSIONAL COLOrado Batten 72X IP65 Wash Light

Name: CHAUVET PROFESSIONAL COLOrado Batten 72X IP65 Wash Light
Brand: Chauvet
SKU: 63903
Price: 1389.00 NZD
Availability: Discontinued

Product #63903 | SKU COLORado-Batten-72X | Chauvet

| Write a review

This product is no longer available what does this mean?

CHAUVET PROFESSIONAL COLOrado Batten 72X IP65 Wash Light

Not currently for sale
Contact us for more information

This product is no longer available what does this mean?

Features

72 Calibrated RGBWA LEDs.
Compact, Tour-Ready Unit.
Natural Colour Rendering.
Offers Soft Pastels to Saturated Hues.
16-Bit Dimming Capability.

Description Specifications In The Box

Description

The CHAUVET PROFESSIONAL COLOrado Batten 72X IP65 Wash Light is an IP65 batten-style wash lighting fixture powered by 72 calibrated RGBWA LEDs. It can be used to produce a wide palette of colour renderings ranging from soft pastels to saturated hues for touring, live events, television, and theatrical productions.

The Colourado Batten 72X is equipped with 16-bit dimming capability, as well as five selectable dimming curves. They provide smooth fades and can easily integrate into traditional rigs. In addition, it is built with integrated trunnions to accommodate clamps for vertical or horizontal hanging.

Key Features:

RGBAW LED Batten for touring, rental, and production—indoors or out
All environment operation with IP rated power and DMX connection
Colour temperature presets, from 3200 K to 10000 K
Selectable, smooth dimming curves for programming versatility
Built for touring, live events, television, and theatrical productions
Large, easy to navigate display with password protection

Specifications


Optical	Light Source: 72 LEDs (18 Red, 18 Green, 18 Blue, 9 White, 9 Amber) 3 W, (690 mA), 50,000 Hours Life Expectancy Colour Temperature (Range): 3200 to 10000 CRI (3200 K): 80 Installed Optics: 24° Beam Angle (Horizontal): 22° Beam Angle (Vertical): 18° Field Angle (Horizontal): 39 ° Field Angle (Vertical): 34° Lumens: 3,631 Illuminance (total): 1730 lux @ 5 m Selectable PWM: 600, 1200, 2000, 2400, 4000, 6000, 25000 Hz
Dynamic Effects	Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 25 Hz Standalone Colour Mixing: Yes Colour Temperature Presets: Yes Dim Modes: 5 Built-In Automated Programmes: Yes Customisable Programmes: Yes Recall Custom Programmes: Yes
Connections	Power Connection: Edison (Local) Plug to Seetronic Powerkon IP65 Power Input: Seetronic Powerkon IP65 Power Output: Seetronic Powerkon IP65 Data Connectors: 5-pin IP65 XLR Cable Length (Power): 5' / 1.5 m
Control	Control Protocol: DMX, RDM DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16 3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43 Modes/Personalities: 18 Personalities
Electrical	Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V Power and Current: 161 W, 1.33 A @ 120 V, 60 Hz Power and Current: 164 W, 0.79 A @ 208 V, 60 Hz Power and Current: 163 W, 0.71 A @ 230 V, 50 Hz
Certifications	COE, MET IP Rating: IP65, Temporary Outdoor/Wet Use Temperature (Ambient): -4 to 113°F / -20 to 45°C
Material of Construction	Housing Material: Aluminium Alloy, Aluminium Die-Cast
Dimensions (L x W x H)	39.37 x 6.14 x 2.95" / 100.00 x 15.60 x 7.49 cm
Weight	18.6 lb / 8.4 kg
