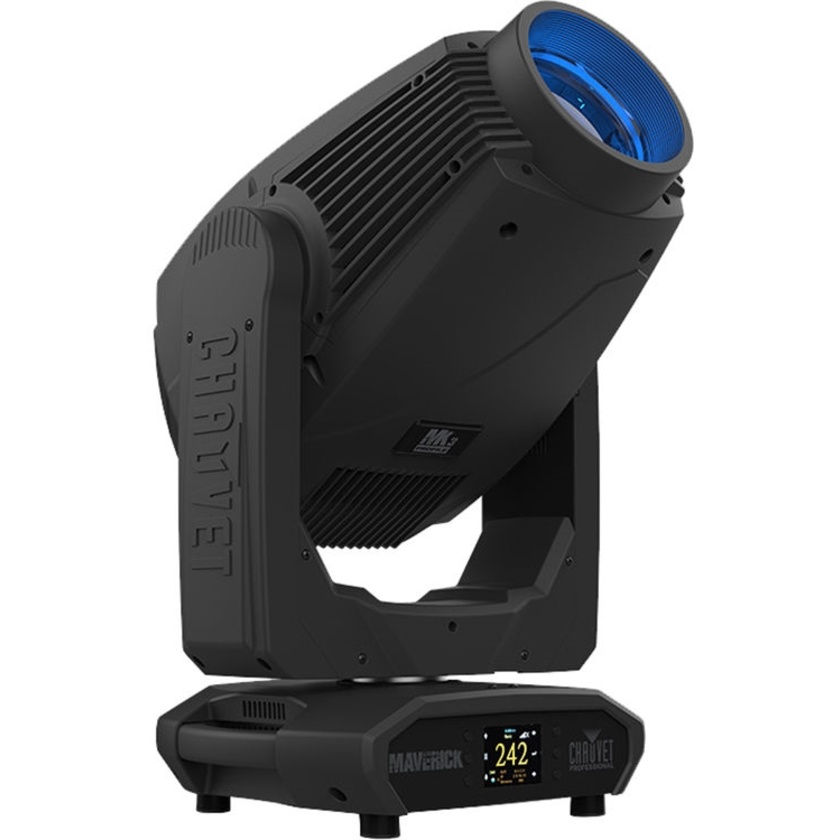

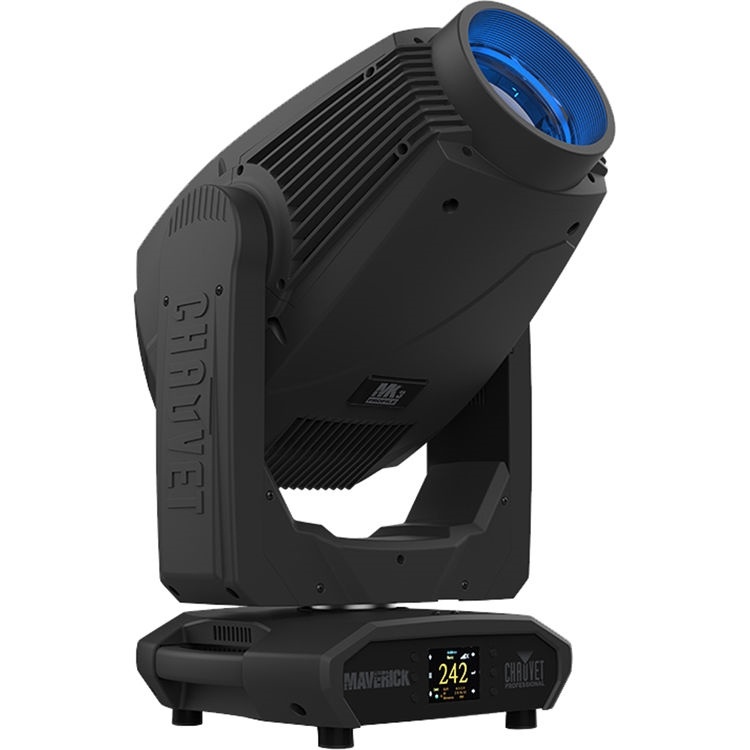

CHAUVET PROFESSIONAL Maverick MK3 Profile 820W LED Light Fixture with Gobos

Product #79895 | SKU MAVERICK MK3 PROFILE | Chauvet
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Bright, 820W Cool-White LED
  • 4-Blade Framing Shutter System
  • Variable CMY + CTO Colour Mixing
  • 9:1 Zoom Ratio & 73 to 93 Adjustable CRI
  • Static and Rotating Gobo Wheels

Description

The Maverick MK3 Profile from CHAUVET PROFESSIONAL is powered by a bright, 820W, cool-white LED with an illuminance of 58,800 lux at 16.4' and motorised zoom angles ranging from 6 to 54°. The fixture features a fast zoom ratio of 9:1 that maintains a flat field of focus even when fully wide. Other features include a four-blade framing shutter system with the ability to fully blackout, and 120° rotation. There are two gobo wheels, one rotating and one static, two independent and overlapping prisms, and light and medium frost options.

The Maverick MK3 Profile provides CMY and CTO colour mixing with a colour temperature of 7441K, a CRI range of 73 to 93, and 16-bit, electronic dimming to create a pallet of vibrant colours with smooth fades. The colour wheel comes with six colours plus white and is capable of continuous or variable-speed scrolling. The unit can be controlled via DMX, W-DMX, sACN, and Art-Nett protocols. It also offers RDM control over DMX for remote addressing and troubleshooting. The Maverick MK3 comes with two Omega brackets with mounting hardware and a power cord.

Key Features:

  • Yoke fixture with 820 W, cool-white LED light engine
  • Colour temperature (full): 7441K
  • 9:1 motorised zoom with 6 to 54° zoom angle, for variable beam sizes
  • 16-bit LED dimming for smooth fade control
  • Variable CMY + CTO colour mixing system to create a wide pallet of colours
  • Independently layerable 5-facet linear and 5-facet round prisms for increased prism options
  • One rotating and one static gobo wheel for dynamic texture possibilities
  • Independent light and medium frosts for beam control
  • Up to 540° pan and 270° tilt
  • 3 menu presets and preset cross load for decreased shop setup time
  • RDM control over DMX for remote addressing and troubleshooting
  • Compatible with DMX, W-DMX, sACN, and Art-Nett protocols for flexible control options
  • Iris for total beam control
  • Animation wheel for enhanced visual effects
  • Compatible with powerCon True 1 power input
  • Battery backup display with auto-rotate depending on fixture orientation

Specifications

Light Source 1 x 820 W CW (Cool-White) LEDs, 24 A, 7450K
Life Expectancy: 50,000 hours
Colour Temperature 7441K at Full
CRI 73
With Filter: 91.2
TLCI 50.9
Beam Angle 6 to 44°
Field Angle 6 to 54°
Zoom Angle 6 to 54°
Illuminance 6°: 58,800 Lux at 16.4' / 5 m
54°: 1770 Lux at 16.4' / 5 m
Illuminance W / CRI Filter 6°: 40,100 Lux at 16.4' / 5 m
54°: 1190 Lux at 16.4' / 5 m
PWM Frequency 600, 1200, 2000, 4000, 6000, and 15,000 Hz (Selectable)
Pan & Tilt 540/270°
Pan & Tilt Range Pan: 540, 360, 180°
Tilt: 270, 180, 90°
Colour Wheel 6 + White, Split Colours, Continuous Scroll at Variable Speeds, CMY Flags, CTO Flag, CRI filter, and Colour Correction Functions
Gobo Wheels Wheel 1: 7 + Open Glass, Rotating, Interchangeable, Indexing, Slot-N-Lock, Continuous Scroll at Variable Speeds
Wheel 2: 9 + Open Glass, Continuous Scroll at Variable Speeds
Effect Wheel 1 x Effect
Framing Shutter Yes
Dimmer Electronic
Shutter/Strobe Electronic
Zoom Motorised
Focus Motorised
Frost Frost 1: Light Frost, Motorised
Frost 2: Medium Frost, Motorised
Iris Motorised
Prism 5 Linear Facets Motorised, Rotating
5 Circular Facets: Motorised, Rotating
Strobe Rate 0 to 25 Hz
Move-In-Black Yes
Dimmer Curves 4
Power Connections Edison Plug to Seetronic Powerkon IP65
Power Input Seetronic Powerkon IP65
Data Data Connectors: 3- and 5-pin XLR, Amphenol XLR Nett RJ45 connectors I/O
Power Cable Length 5' (1.5 m)
Control Protocol Art-Nett, DMX, W-DMX, and sACN
Channels DMX: 38 or 54
Art-Nett: 38 or 54
Modes/Personalities 2 Personalities (38, 54)
Input Voltage 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current 1070 W, 9.04 A at 120 V, 60 Hz
1050 W, 5.13 A at 208 V, 60 Hz
1050 W, 4.56 A at 230 V, 50 Hz
Resting:
112 W, 0.93 A at 120 V, 60 Hz
122 W, 0.53 A at 208 V, 60 Hz
124 W, 0.53 A at 230 V, 50 Hz
Breaker Size F20 A, 250 V
Certifications COE, MET, FCC
IP Rating IP20, Dry Location
Noise Level Ambient: 36.5 dB at 3' / 1 m
Full: 62.1 dB at 3' / 1 m
Eco: 43 dB at 3' / 1 m
Ambient Temperature -4 to 113°F (-20 to 45°C)
Housing Material High-Impact Flame-Retardant Polymer
Dimensions 16.10 x 12.20 x 29.4" / 40.9 x 31.0 x 74.8 cm
Weight 76.4 lb / 34.7 kg

In The Box

  • CHAUVET PROFESSIONAL Maverick MK3 Profile 820W LED Light Fixture with Gobos
  • Seetronic Powerkon IP65 Power Cord
  • Omega Brackets with Mounting Hardware
