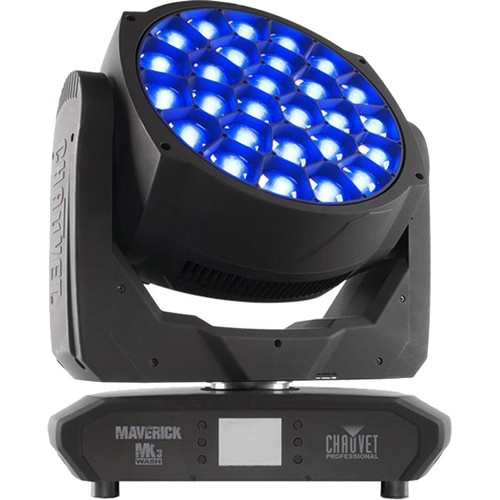

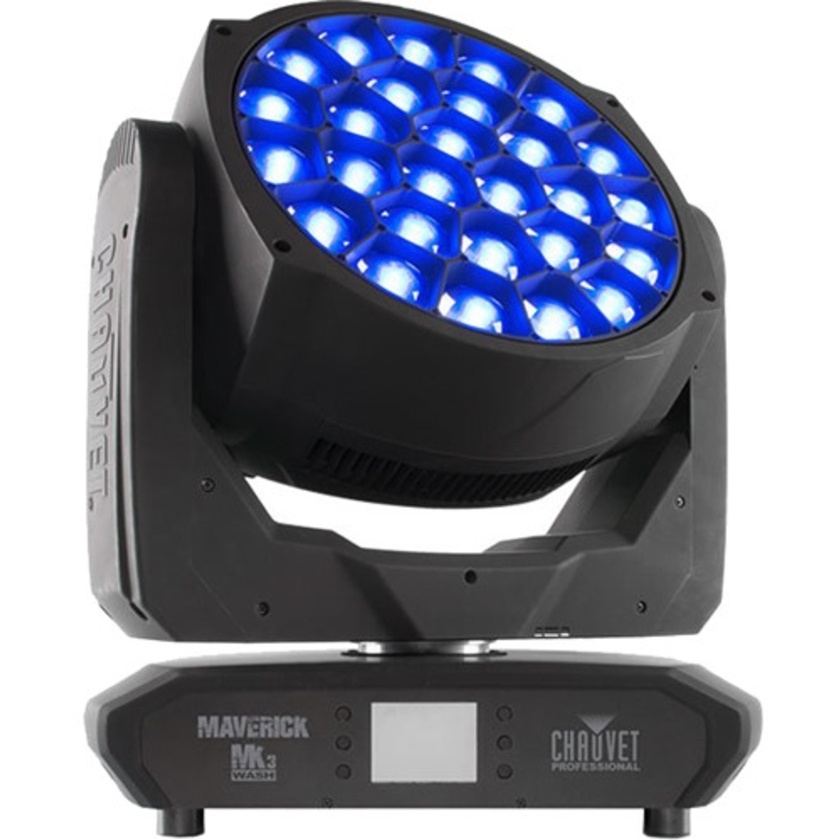

CHAUVET PROFESSIONAL Maverick MK3 Wash RGBW LED Light Fixture

Product #63877 | SKU Maverick-MK3-Wash | Chauvet
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Overview

Powered by 27 (40W) Osram RGBW LEDs, features a built-in virtual gobo wheel with background colours for enhanced atmospheric effects

Description

The CHAUVET PROFESSIONAL Maverick MK3 Wash RGBW LED Light Fixture is powered by 27 (40W) Osram RGBW LEDs and features a built-in virtual gobo wheel with background colours for enhanced atmospheric effects. The fixture features Pixel mapping effects, built-in colour macros and gobos, and CTO colour mixing option. It also comes with control options such as DMX, sACN, Art-Nett, and Kling-Nett or WDMX. The fixture can also receive Art-Nett or sACN in, and send DMX out.

Key Features:

  • Fully featured RGBW LED wash fixture with pixel mapping and zoom
  • 16-bit dimming of master dimmer as well as individual colours for smooth control of fades
  • Built-in colours for quick design possibilities
  • Precise movement of pan, tilt, and zoom
  • DMX, WDMX, sACN, Art-Nett, and Kling-Nett control for full flexibility
  • RDM Enabled for remote addressing and trouble shooting
  • Converts TCP/IP to DMX for shorter data cable runs
  • 7 to 45° zoom range for variable beam sizes
  • True 1 compatible power input
  • Battery backup touchscreen display with auto-rotate feature depending on fixture orientation
  • Standalone colour mixing
  • Colour temperature presets
  • Move-in-Black

Specifications

Optical
Light Source 27 x 40 W LEDs (quad-colour RGBW), 2.6 A
Life Expectancy: 50,000 hours
Colour Temperature 2800 to 10,000K
Beam Angle 5 to 29°
Field Angle 7 to 45°
Zoom Angle 7 to 45°
Illuminance 7°: 89,200 lux at 16.4' / 5 m
45°: 2814 at 16.4' / 5 m
PWM Frequency 600, 1200, 2000, 4000, 6000, and 15,000 Hz
Dynamic Effects
Pan & Tilt 540°/270°
Pan & Tilt Range Pan: 540°, 360°, 180°
Tilt: 270°, 180°, 90°
Dimmer Electronic
Shutter/Strobe Electronic
Zoom Motorised
Strobe Rate 0 to 20 Hz
Dimmer Curves 4
Connections
Power Connections Edison plug to Seetronic Powerkon IP65
Power Input Seetronic Powerkon IP65
Data Data Connectors: 3- and 5-pin XLR
Cable Length 5' (1.5 m)
Control
Control Protocol Art-Nett, Kling-Nett, sACN, DMX, W-DMX
DMX Channels Single Mode: 20, 129, 243, or 297
Dual Mode: 9, 21, 27 (Function), 81, 108, 216 (Pixel)

Channels Art-Nett Single Mode: 21, 129, 243, or 297
Art-Nett Dual Mode: 9, 21, 27 (Function)
Art-Nett Dual Mode : 81, 108, 216 (Pixel)
Electrical
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current 1120 W, 9.51 A at 120 V, 60 Hz
1100 W, 5.35 A at 208 V, 60 Hz
1120 W, 4.84 A at 230 V, 50 Hz
General
Certifications COE, MET
IP Rating IP20, dry location
Temperature -4 to 113°F (-20 to 45°C)
Housing Material High-impact flame-retardant polymer
Dimensions 18.7 x 11.49 x 22.93" (459 x 292 x 583 mm)
Weight 68.2 lb (31 kg)

In The Box

  • CHAUVET PROFESSIONAL Maverick MK3 Wash RGBW LED Light Fixture.
  • Seetronic Powerkon IP65 Power Cord.
  • Omega Bracket with Mounting Hardware.

Reviews

0.0 (no ratings yet)

Details

  • Product: CHAUVET PROFESSIONAL Maverick MK3 Wash RGBW LED Light Fixture
  • Manufacturer: Chauvet
  • Model: Maverick-MK3-Wash
  • SKU: Maverick-MK3-Wash
  • RM Product #: 63877
