CHAUVET PROFESSIONAL Ovation FD-105WW LED Fresnel Wash - Dimmer/DMX (Warm White) has been discontinued, here are some related products you might like:

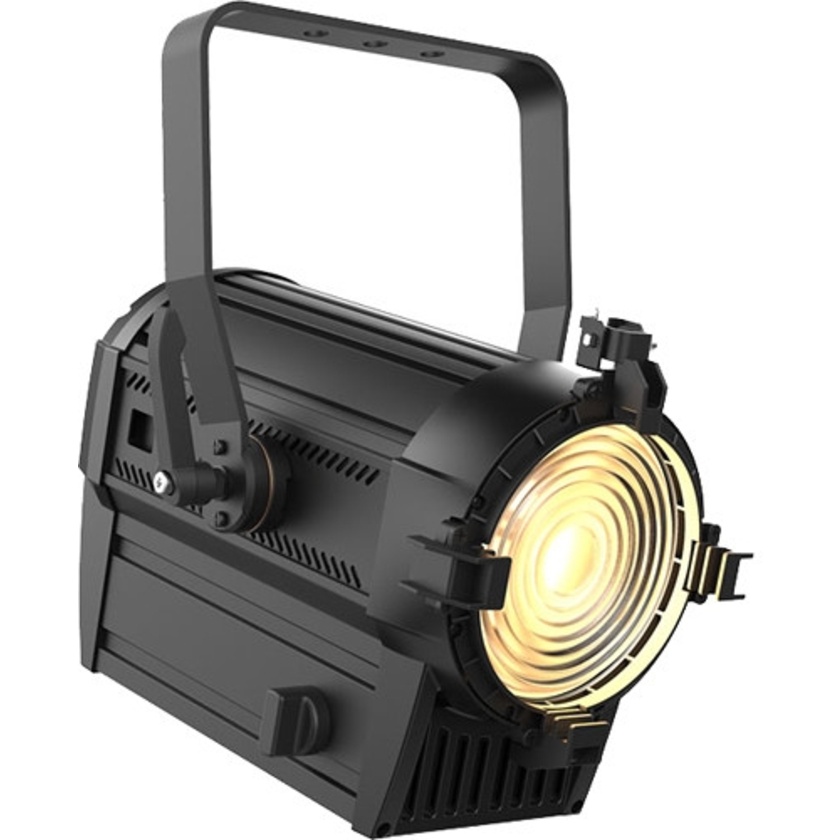

CHAUVET PROFESSIONAL Ovation FD-105WW LED Fresnel Wash - Dimmer/DMX (Warm White)

Product #79970 | SKU OVATION-FD105WW | Chauvet
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 6“ warm white LED Fresnel with class leading output
  • Works perfectly on conventional dimmers or constant power with DMX
  • Auto-senses power/data and responds appropriately
  • Superior low end dimming whether using dimmers or constant power
  • 16-bit dimming resolution (DMX mode) for smooth fades
  • Flat, even field of light, with manual zoom (25-76 deg)

Description

The CHAUVET PROFESSIONAL Ovation FD-105WW is an LED Fresnel wash utilizing data and power sensors that make it possible to run on both dimming power systems and constant power rigs. A massive zoom range of 14° to 63° and a beautifully soft, warm white wash with high CRI make it a worthy LED replacement for aging incandescent six-inch Fresnels. Enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems.

Key Features:

  • 6“ warm white LED Fresnel with class leading output
  • Soft and even field of light
  • Works perfectly on conventional dimmers or constant power with DMX
  • Auto-senses power/data and responds appropriately
  • Superior low end dimming whether using dimmers or constant power
  • Perfect fixture for the retrofit market, utilizes existing dimming infrastructure flawlessly
  • 16-bit dimming resolution (DMX mode) for smooth fades
  • Flat, even field of light, with manual zoom (25-76 deg)
  • Virtually silent operation for use in any situation

Specifications

Light Source 1 LEDs (WW) 80 W, (2.5 A), 3069 K, 50,000 hours life expectancy
Color Temperature (at full) 3,197 K
CRI 91
Beam Angle 8° to 51°
Field Angle 14° to 63°
Zoom Angle 14° to 63°
Illuminance (14°) 6,609 lux @ 5 m
Illuminance (63°) 340 lux @ 5 m
Selectable PWM 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dimmer Electronic
Shutter/Strobe Electronic
Zoom Manual
Strobe Rate 0 to 25 Hz
Dim Modes 5
Dim Curves 4
Dimensions 12.8 x 11 x 16.5 in (325 x 279 x 420 mm)
Weight 13 lb (5.9 kg)
Exterior Color Black
Accessory Holder/Gel Frame Size 6.25 in / 159 mm
Power Connection Local plug to Neutrik powerCON
Power Input Neutrik powerCON
Power Output Neutrik powerCON
Data Connectors 3- and 5-pin XLR
Cable Length (power) 5 ft (1.5 m)
Control Protocol DMX, RDM, Dimmer
DMX Channels 1, 2 or 3
Modes/Personalities 3 personalities (UNO, DOS, STD-P)
Input Voltage 120/230 VAC, 50/60 Hz (switchable)
Power Linking 14 units @ 120 V; 25 units @ 230 V
Power and Current 115 W, 0.951 A @ 120 V, 60 Hz
Power and Current 125 W, 0.541 A @ 230 V, 50 Hz

In The Box

  • Ovation FD-105WW
  • Neutrink powerCon power chord
  • Gel frame (6.25 in / 159 mm accessories)

Reviews

0.0 (no ratings yet)

Details

  • Product: CHAUVET PROFESSIONAL Ovation FD-105WW LED Fresnel Wash - Dimmer/DMX (Warm White)
  • Manufacturer: Chauvet
  • Model: OVATION-FD105WW
  • SKU: OVATION-FD105WW
  • RM Product #: 79970
