The Cerwin Vega CVP2500.5D 5 Channel Bridgeable Class AB Amplifier makes owning a Cerwin-Vega Mobile sound system very affordable for those that are budget-conscious. With a numerous amount of mono and multi-channel amplifiers to select from at a tremendous value for the performance, enjoy the LOUD sound experience with CVP Performance series products. The right price, the right power, the right products. Cerwin-Vega CVP series amplifiers are designed and engineered to reproduce extreme bass output in your vehicle!

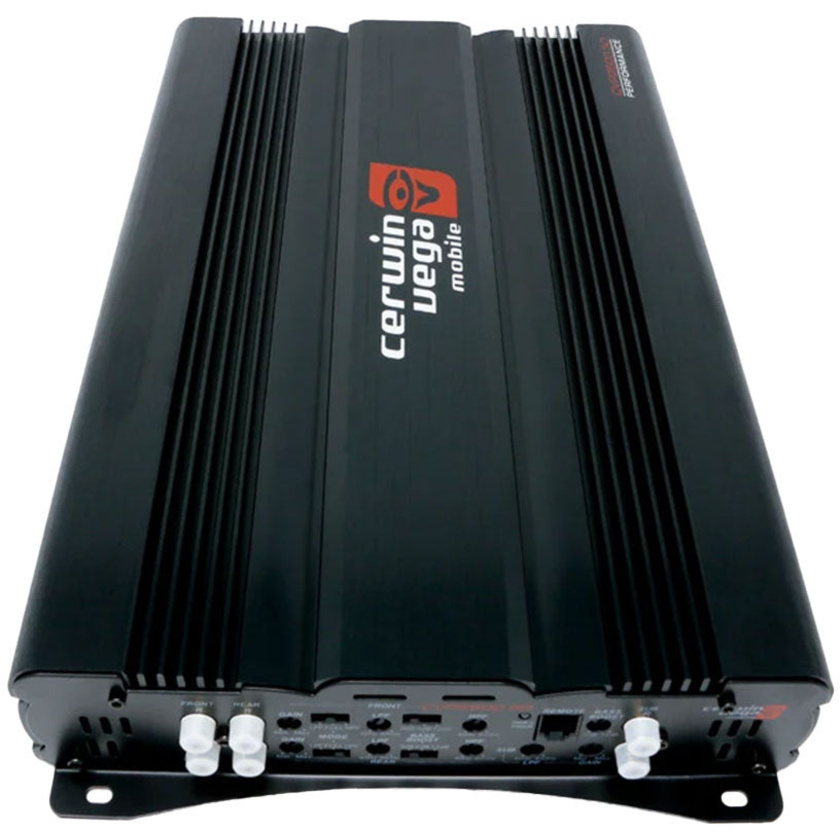

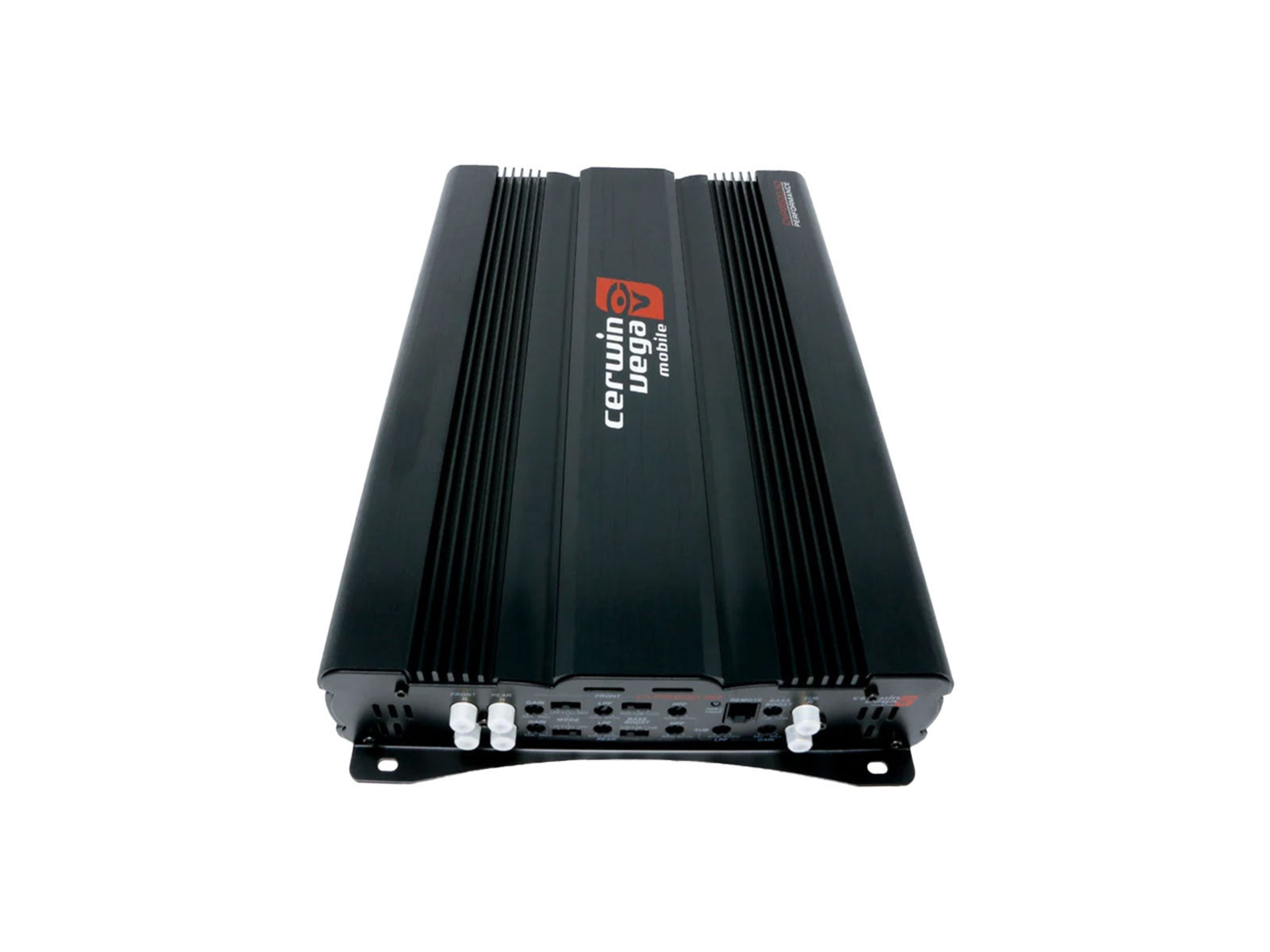

Cerwin Vega CVP2500.5D 5 Channel Bridgeable Class AB Amplifier
In stock
Ships tomorrow
Our Price
$349
In stock
Ships tomorrow
this item may be nonreturnable
Shipping & Availability
Ships tomorrow.
Deliver to
Auckland
for $15
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 4 working days
Click & Collect
Features
- High-efficiency class A/B topology
- Compact size
- RCA "Pass Thru" output
- Fully variable crossovers
- Handles HI and LO level input
- Proprietary Vega Bass Boost EQ
Description
Specifications
| Model | CVP2500.5D |
| RMS Power(2O) | 85Wx4 + 300Wx1 |
| RMS Power (4O) | 65Wx4 + 185Wx1 |
| RMS Bridge (mono 4O) | 180Wx2 +NA |
| Technology | AB class |
| Power Supply | PWM |
| Power Supply (Threshold) | 10-16VDC |
| Idle Current | 1.0A |
| Distortion - THD (1KHz@4O) | ?1% |
| Distortion - S/N Ratio (A weight @ 1W) | >90dB |
| Distortion - S/N Ratio (A weight @ FP) | >105dB |
| Input Sensitivity - Hi/Low Input Level | 200mV-6V |
| Input Impedance - Low Input Level | 20KO |
| Output Impedance | 2/4O |
| Damping Factor (50Hz@4O) | 100 |
| Bandwidth (-3dB) | 10Hz-32KHz /10Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable High-Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | n/a |
| FUSE Ratings - ATC | 40Ax2 |
| Dimension - Length x Width x Height - Inches(mm) | 380 x 238 x 57mm |
In The Box
- Cerwin Vega CVP2500.5D 5 Channel Bridgeable Class AB Amplifier
