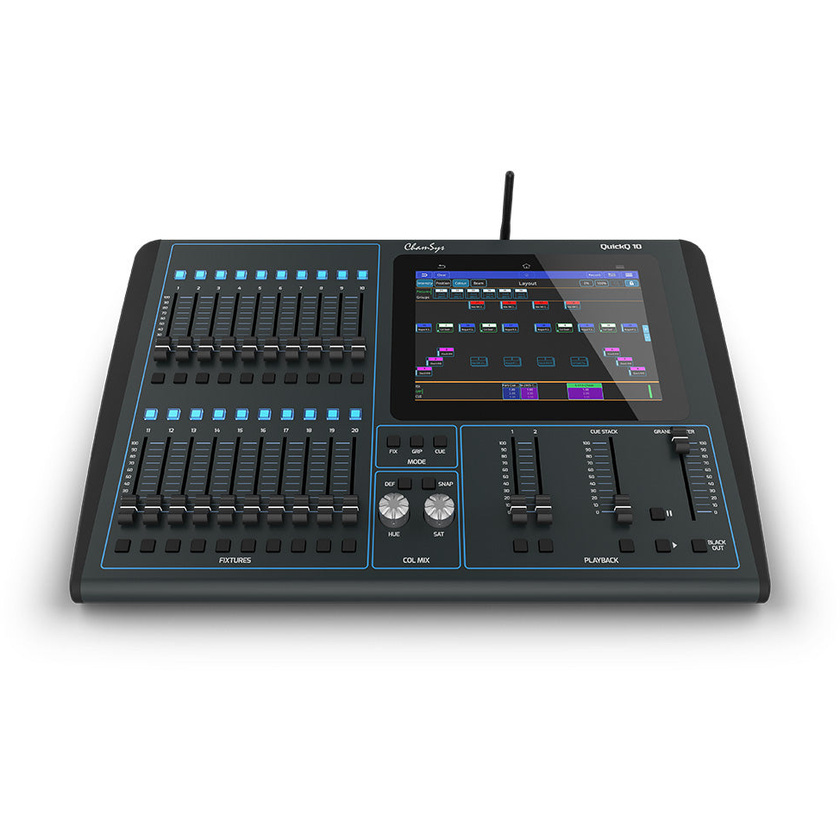

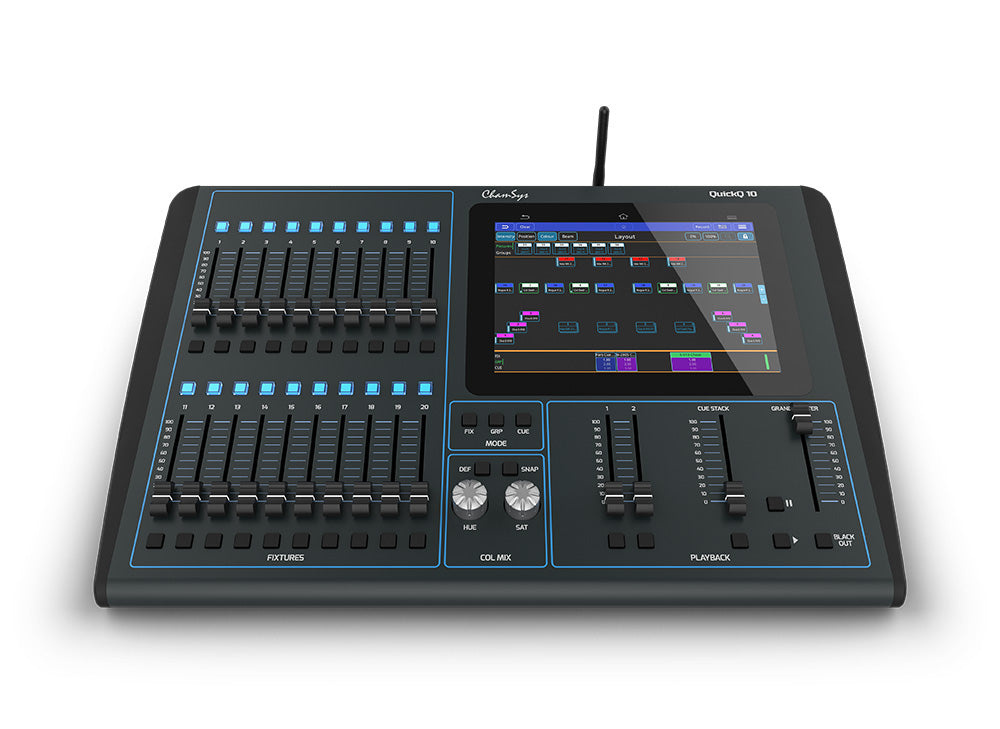

ChamSys QuickQ 10 Console
Features
- Intuitive Lighting Control Console
- Integrated 9.7" Touchscreen Display
- Built-In Wi-Fi for QuickQ App Control
- Programmable Intensity, Colour & Position
- Controls One DMX Universe
- Offline Programming on Mac or Windows
Description
The ChamSys QuickQ 10 Console is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 10 is the perfect choice console for control of dimmer and LED colour mixing fixtures. The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.
The console can automatically detect and patch RDM compliant fixtures and features in-built WIFI enabling remote connection to the free QuickQ app available on iOS, Andoid and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.
The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console.
The console has a free to download offline programming software available for Mac and Windows. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.
QuickQ uses ChamSys extensive and continuously updated personality library with over 45,000 personalities.
QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.
Key Features
- Intuitive Lighting Control Console
- Integrated 9.7" Touchscreen Display
- Built-In Wi-Fi for QuickQ App Control
- Programmable Intensity, Colour & Position
- Controls One DMX Universe
- Offline Programming on Mac or Windows
Specifications
General | |
Hardware Specifications | Universes Supported: 1 Master Playback Faders: 2 x Chase, 1 x Cue Stack Multifunction Fixture Faders: 20 Bump Buttons: Yes Attribute Encoders: None Dedicated Hue/Saturation Encoders: Yes MIDI Ports: None |
Display | Built-In Multi-Touch (9.7" / 24.6 cm) |
Software Specifications | Max Number of DMX Channels: 512 Max Number of Fixtures Supported: 512 Max Number of Cue Stacks: 1 Max Number of Chases: 2 MIDI/MIDI Timecode Support: No OSC Support: Yes RDM Autopatch for Fast Show Patching Fixture Library of Over 30,000 Fixture Files Built-In FX Generator Colour Picker and Built-In Gel Library Offline Designer Software Available for Windows and Mac (Optional) |
Inputs / Outputs | |
USB I/O | 2 x USB-A Female Input/Output |
Video I/O | 1 x HDMI Output |
Audio I/O | 1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Output (* Enabled via Future Software Update) |
Other I/O | 1 x 5-Pin XLR (DMX512) 1 x RJ45 LAN 1 x Antenna Port |
Wireless | |
Wi-Fi | Yes |
Mobile App Compatible | No: Android & iOS App Name: QuickQ Functionality: Remote Control *As of April, 2023: Cheque with manufacturer for the most up-to-date compatibility |
Power | |
Power Source | AC Adapter with Power Brick (Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 VDC at 4 A |
Physical | |
Dimensions | 26.8 x 16.5 x 9.1" / 68 x 42 x 23 cm |
Weight | 17.6 lb / 8 kg |
In The Box
- ChamSys QuickQ 10 Console
