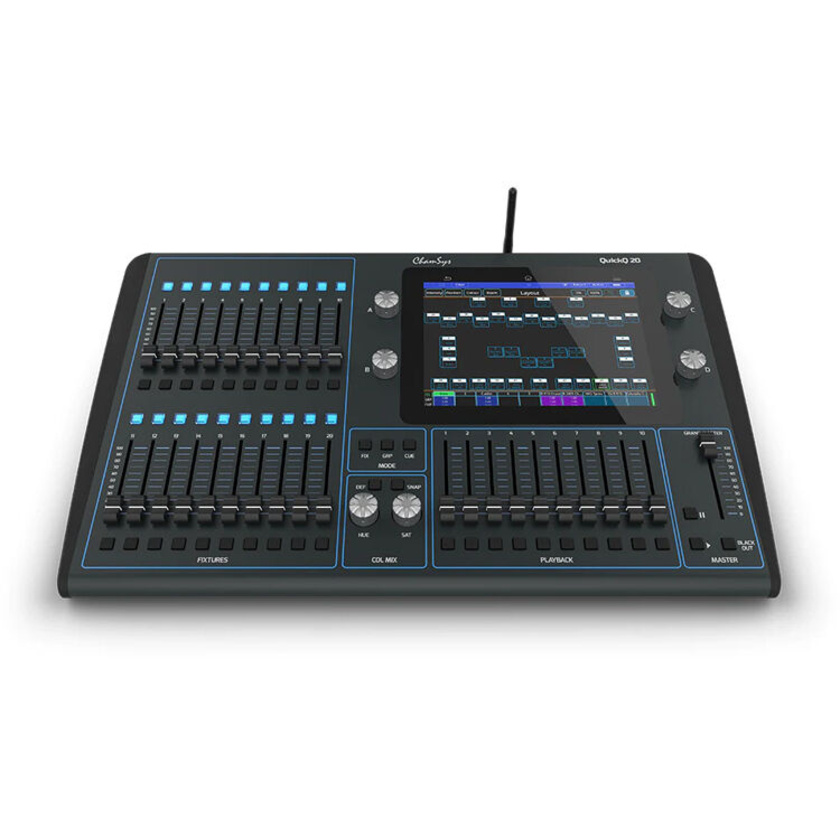

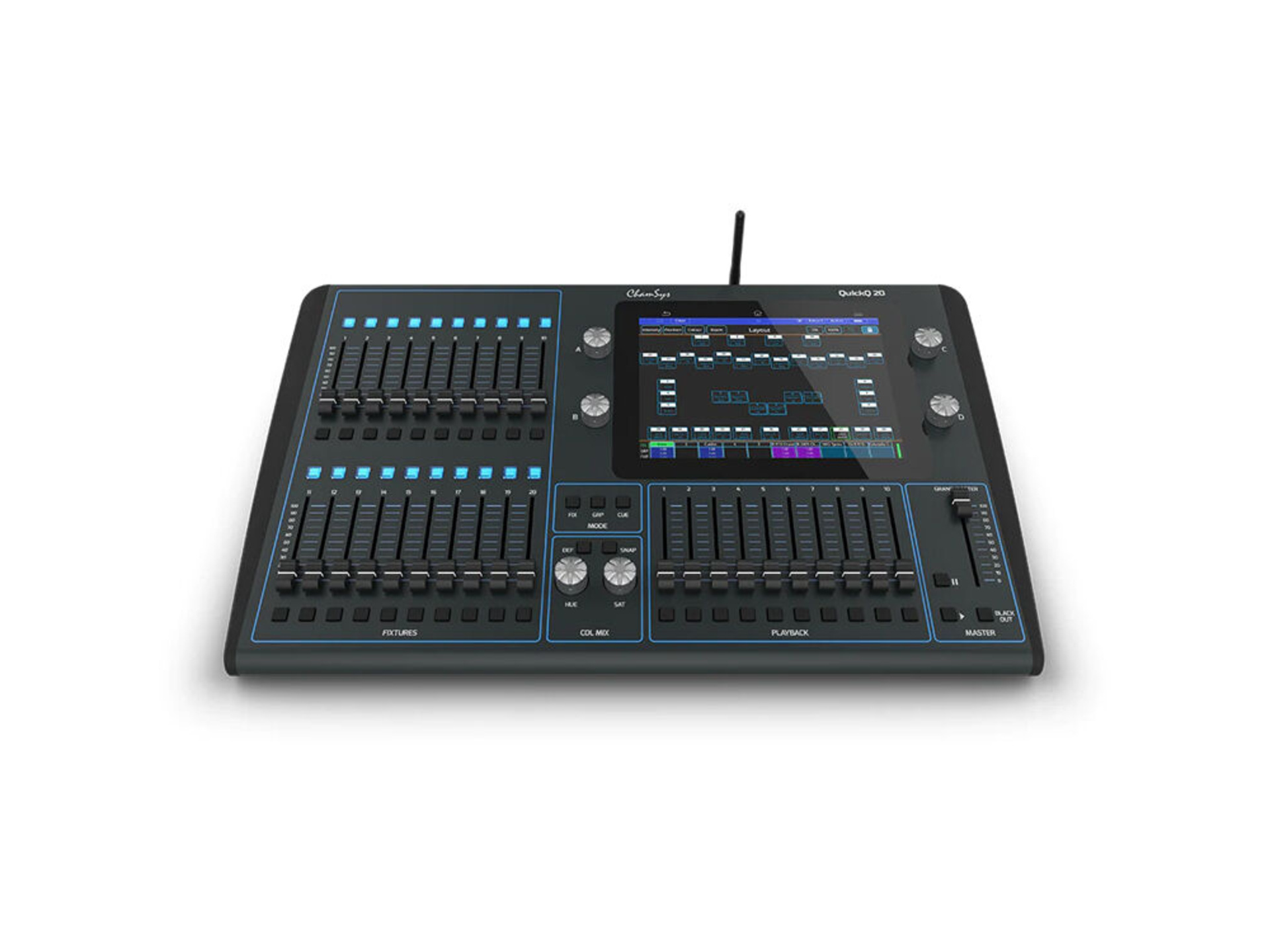

ChamSys QuickQ 20 Lighting Control Console

Product #99357 | SKU CHAMSYS-QUICK Q 20 | ChamSys
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $8,349
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $18 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 6 working days
Click & Collect

Features

  • Intuitive Lighting Control Console
  • Integrated 9.7" Touchscreen Display
  • Built-In Wi-Fi for QuickQ App Control
  • Programmable Intensity, Colour & Position
  • Controls Two DMX Universes
  • Offline Programming on Mac or Windows

Description

The ChamSys QuickQ 20 Lighting Console is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 20 is the perfect choice console for control of dimmer, LED colour mixing and moving light fixtures. The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.

The console can automatically detect and patch RDM compliant fixtures and features in-built WIFI capabilities enabling remote connection to the free QuickQ app available on iOS, Android and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.

The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console.

The console has a free to download offline programming software available for Mac and Windows. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.

QuickQ uses ChamSys extensive and continuously updated personality library with over 30,000 personalities.

QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.

Specifications

General
Hardware Specifications Universes Supported: 2
Master Playback Faders: 10
Multifunction Fixture Faders: 20
Bump Buttons: Yes
Attribute Encoders: 4
Dedicated Hue/Saturation Encoders: Yes
MIDI Ports: Yes
Software Specifications Max Number of DMX512 Channels: 1024
Max Number of Fixtures Supported: 1024
Max Number of Cue Stacks: 10
Max Number of Chases: 10
MIDI/MIDI Timecode Support: Yes
OSC Support: Yes
RDM Autopatch for Fast Show Patching
Fixture Library of ver 30,000 Fixture Files
Built-In FX Generator
Colour Picker and Built-In Gel Library
Offline Designer Software Available for Windows and Mac (Optional)
Display
Panel Type Not Specified by Manufacturer
Display Size 9.7"
Touchscreen Yes
Inputs / Outputs
USB I/O 2 x USB-A Female Input/Output
Video I/O 1x HDMI Output
Audio I/O 1x 1/8" / 3.5 mm Input
1x 1/8" / 3.5 mm Output (* Enabled via Future Software Update)
Other I/O 2 x 5-Pin XLR (DMX512)
1 x RJ45 LAN
1 x Antenna Port
Wireless
Wi-Fi Yes
Mobile App Compatible Yes: Android & iOS
App Name: QuickQ
Functionality: Remote Control
*As of April, 2023: Cheque with manufacturer for the most up-to-date compatibility
Power
Power Source AC Adapter with Power Brick (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC at 4 A
Physical
Dimensions 22.2 x 13.8 x 4.2" / 56.5 x 35 x 10.6 cm
Weight 11.5 lb / 5.2 kg

In The Box

  • ChamSys QuickQ 20 Lighting Console
  • USB Desk light
  • Dust Cover
  • Tablet Stand
  • Wi-Fi Antenna
  • IEC Power cable

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: ChamSys QuickQ 20 Lighting Control Console
  • Manufacturer: ChamSys
  • Model: CHAMSYS-QUICK Q 20
  • SKU: CHAMSYS-QUICK Q 20
  • RM Product #: 99357
