The Chauvet COLORband Q3BT ILS RGBA LED Linear Wash Light is a compact linear wash light with built-in Bluetooth® wireless technology. With the BTAir app, COLORband T3 BT can be controlled remotely from any smart phone or tablet without any additional hardware. Download BTAir™ for free from your favorite online app store. COLORband T3 BT has 12 tri-colored (RGB) LEDs and 3 zones of control to create amazing automated effects. Access built-in automated programs via optional IRC-6 remote, Master/Slave or DMX. Compatible with BTAir.
Specifications
Key Specs
Fixture Type
Linear/Bar Light
Light Source
12x Colour LED - 4 W / 1 A
Colours
Amber, Blue, Green, Red
Pixel Configuration
3x Zone
Beam Angle
50°
Control Protocols
DMX512, RDM
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 54 W / 0.8 A 230 VAC, 50 Hz: 52 W / 0.4 A
Mounting
Dual/Scissor Yoke
Light
Fixture Type
Linear/Bar Light
Light Source
12x Colour LED - 4 W / 1 A
Expected Lamp Life
50,000 Hours
Colours
Amber, Blue, Green, Red
Pixel Configuration
3x Zone
Photometrics
47 fc / 509 Lux at 6.6' / 2 m
Beam Angle
50°
Field Angle
80°
Shutter / Strobe
Electronic
Iris
No
Zoom Adjustment
No
Dimming
Electronic
Performance
Operating Modes
DMX, Primary/Secondary
Macros / Programmes
Auto-Programme
Effects
Strobe
Strobe Rate
0 to 20 Hz
Gobos
No
Control
Control Protocols
DMX512, RDM
DMX Channel Modes
3 Mode(s):4 / 6 / 16-Channel
Remote Control
D-Fi USB (with Optional Equipment) IR Remote (with Optional Equipment)
Mobile App Compatible
Yes
Connectivity
Inputs/Outputs
1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output
Wireless
Bluetooth 4.2 / IR *Built-In Wi-Fi *Via Optional Adapter
Wireless Range
150' / 45.7 m
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Not Specified by Manufacturer
Fuse
No
Power / Current Consumption
120 VAC, 60 Hz: 54 W / 0.8 A 230 VAC, 50 Hz: 52 W / 0.4 A
Power Linking
10 Units at 120 VAC 19 Units at 230 VAC
Environmental
Environmental Protection
No
Physical
Mounting
Dual/Scissor Yoke
Included Accessories
1x Power Cable
Duty Cycle
No
Exterior Colour
Black
Certifications
COE, RoHS, UKCA, FCC
Dimensions
39.3 x 5.5 x 3.8" / 99.8 x 14 x 9.7 cm
Weight
6.6 lb / 3 kg
In The Box
2x Chauvet DJ COLORband T3BT battens
1x CHS-60 VIP Gear Bag
Reviews
(no ratings yet)
Details

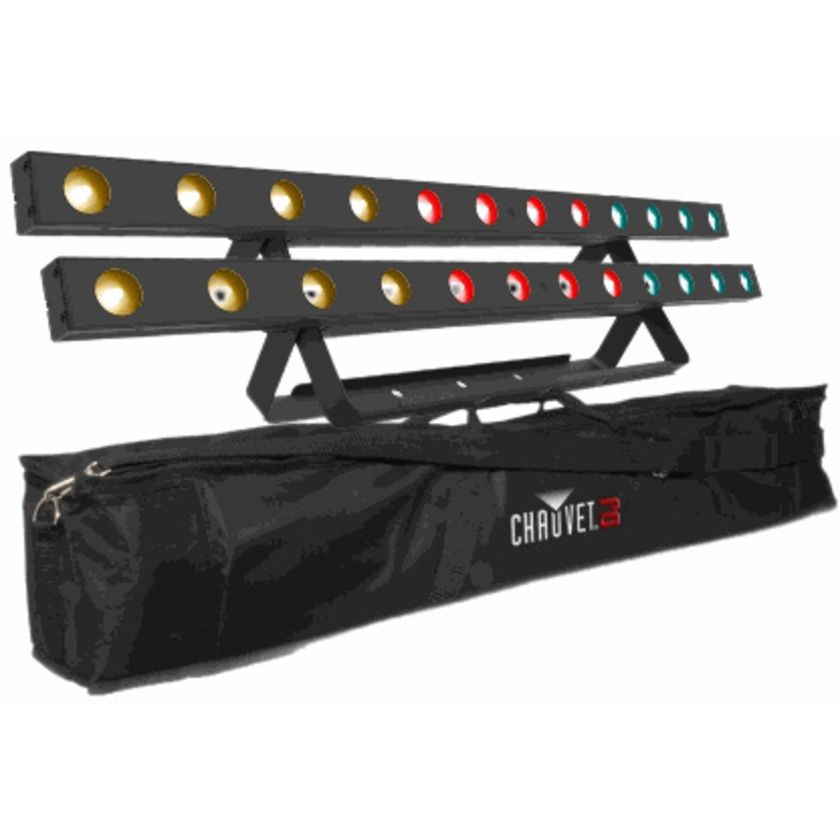

Product:Chauvet COLORband Q3BT ILS RGBA LED Linear 2 Light Bundle
