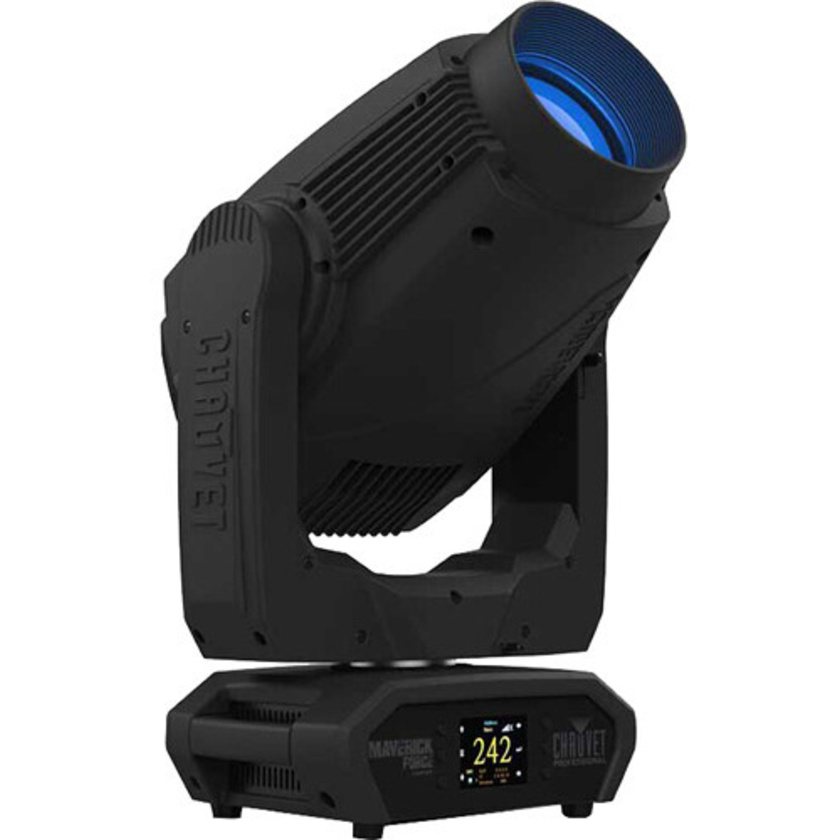

Chauvet Professional Maverick Force 1 Spot 470W LED Moving Head Light Fixture with Gobos

Product #104581 | SKU MAVERICK FORCE1 SPOT | Chauvet
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Bright, 470W Cool-White LED
  • Variable CMY+CTO Colour Mixing
  • Two Gobo Wheels
  • Colour Wheel with 7 Colours, Split Colours
  • 6.3 to 54.4° Beam Angle
  • 5-Facet Prism

Description

The Chauvet Professional Maverick Force 1 Spot 470W LED Moving Head Light Fixture with Gobos is a lightweight moving head with a big presence. The tour-ready unit features an output of 20,000 lumens and an artillery of speedy effects in a deceptively compact frame, just under 50lbs.

Maverick Force 1 Spot features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees that maintains a flat field of focus even when fully wide. Motorised iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping as well. Custom glass gobos created in collaboration with leading designers, and a continuous animation wheel can all be stacked on top of each other. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

Key Features
  • Fully featured, compact and lightweight 470 W LED yoke spot fixture including CMY + CTO color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static, and an animation wheel
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • CRI and CTB filters on color wheel for added flexibility
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM enabled for remote addressing and trouble shooting
  • 6.3° to 54.4° zoom range for variable beam sizes
  • Iris, 5-facet prism, and frost for beam control
  • True 1 compatible power input
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation

Specifications

Light
Fixture Type Moving Head / Spotlight
Light Source 1 x White LED - 470 W / 4 A
Light Source Life Expectancy 50,000 Hours
Colours Red, Orange, Green, Magenta, Ultraviolet, Indigo, CTB (Colour Temperature Blue)
Photometrics 7°:
4039.8 fc / 43,485 Lux at 16.4' / 5 m
54°:
166.6 fc / 1793 Lux at 16.4' / 5 m
Colour Temperature 7099K
Lumen Output 35,000 Lumens (Source)
21,172 Lumens (Output)
Beam Angle 6.3 to 45.7°
Field Angle 7.3 to 53°
Shutter / Strobe Electronic
Iris No
Zoom Adjustment Motorised, 6 to 54°
Dimming 16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Prism 5-Facet Linear (Rotating)
Performance
Operating Modes Automatic, Colour Change, Colour Dimmer, DMX, Primary/Secondary, Programme
Macros / Programmes 10 x Auto-Programme
Effects Colour Scroll (Variable Speed)
Colour Strobe (Variable Speed)
Strobe Rate 0 to 20 Hz
Gobos 7 x Removable Glass Spot/Open
9 x Fixed Glass Spot/Open
1 x Animation Wheel
Gobo Size Outer Diameter: 1" / 25 mm
Max Image Size: 0.8" / 20.3 mm
Max Thickness: 0" / 1.1 mm
Movement
Tilt Ranges 270° / 180° / 90°
Pan Ranges 540° / 360° / 180°
Pan/Tilt Inversion Yes
Control
Control Protocols DMX512, Art-Nett, sACN
DMX Channel Modes 2 Mode(s):
25 / 32-Channel
Display / Controls LCD / 6-Button
Remote Control None
Connectivity
Inputs/Outputs 2 x XLR 5-Pin DMX Input/Output
2 x XLR 3-Pin DMX Input/Output
2 x etherCON/RJ45 Data Input/Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON TRUE1
Output: 1 x powerCON TRUE1
Power / Current Consumption 100 VAC, 60 Hz: 670 W / 6.7 A
120 VAC, 60 Hz: 660 W / 5.45 A
208 VAC, 60 Hz: 637 W / 3.1 A
230 VAC, 50 Hz: 632 W / 2.79 A
240 VAC, 50 Hz: 630 W / 2.7 A
Power Linking 2 Units at 100 VAC
2 Units at 120 VAC
4 Units at 208 VAC
4 Units at 230 VAC
5 Units at 240 VAC
Total Current: 13.6 A
Environmental
IP Rating IP20
Environmental Protection Advertised as Dust Resistant
*Manufacturer Testing: IP20
Operating Temperature -22 to 113°F / -30 to 45°C
Physical
Mounting Omega Bracket
Duty Cycle None
Exterior Colour Black
Certifications COE, FCC
*as per Manufacturer
Dimensions 25 x 15.5 x 9.8" / 63.5 x 39.4 x 24.9 cm
Weight 48 lb / 21.8 kg

In The Box

  • CHAUVET PROFESSIONAL Maverick Force 1 Spot 470W LED Moving Head Light Fixture with Gobos
  • Seetronic Powerkon IP65 Power Cord
  • Omega Brackets with Mounting Hardware
