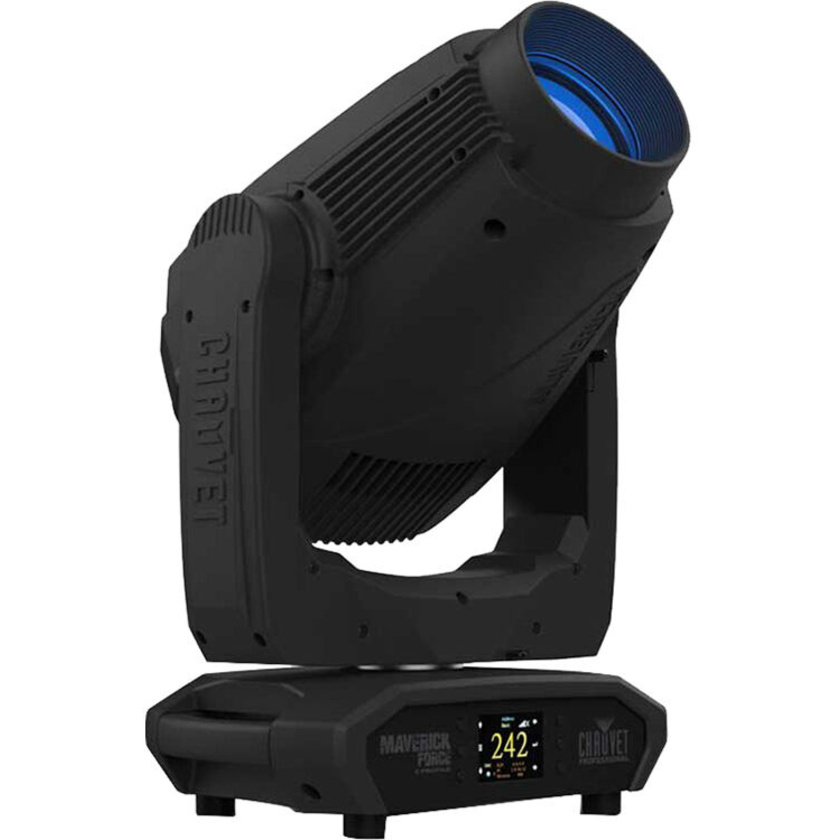

Chauvet Professional Maverick Force 2 Profile 580W LED Moving Head Light Fixture with Gobos

Product #104582 | SKU MAVERICK FORCE2 PFL | Chauvet
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Bright, 580W Cool-White LED
  • Four-Blade Framing Shutter System
  • Variable CMY+CTO Colour Mixing
  • Two, 7-Position Rotating Gobo Wheels
  • Colour Wheel with 7 Colours, Split Colours
  • 6.8 to 48.1° Beam Angle

Description

The Chauvet Professional Maverick Force 2 Profile 580W LED Moving Head Light Fixture with Gobos is a lightweight, tour-grade moving head with a big presence. The powerful unit features an output of over 20,000 lumens and an artillery of speedy effects housed in a deceptively compact frame, under 60lbs.

Maverick Force 2 Profile features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees that maintains a flat field of focus even when fully wide. A custom-built framing system containing 4 dual axis shutters with a 120-degree field of rotation, motorised iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping. Two rotating glass gobo wheels featuring gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

Key Features
  • Fully featured, compact and lightweight 580 W LED yoke profile fixture including CMY + CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, 8:1 zoom, a 5 facet prism wheel, and two rotating gobo wheels
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • CRI and CTB filters on color wheel for added flexibility
  • Two rotating, indexing and interchangeable slot and lock gobo wheels
  • DMX , WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM control over DMX for fixture reporting
  • 6.8° to 55.9° zoom range for variable beam sizes
  • Iris, 5-facet prism and frost for beam control
  • True 1 compatible power input
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation

Specifications

Light
Fixture Type Moving Head
Light Source 1 x White LED - 580 W / 4.2 A
Light Source Life Expectancy 50,000 Hours
Colours Red, Orange, Green, Magenta, Ultraviolet, Indigo, CTB (Colour Temperature Blue)
Photometrics 7°:
4818.3 fc / 51,865 Lux at 16.4' / 5 m
54°:
153.1 fc / 1648 Lux at 16.4' / 5 m
Colour Temperature 7055K
Lumen Output 39,000 Lumens (Source)
20,856 Lumens (Output)
Beam Angle 6.8 to 48.1°
Field Angle 7.6 to 54.9°
Shutter / Strobe Electronic
Iris No
Zoom Adjustment Motorised, 6 to 56°
Dimming 16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Prism 5-Facet Linear (Rotating)
Performance
Operating Modes Automatic, Colour Change, Colour Dimmer, DMX, Primary/Secondary, Programme
Macros / Programmes 10 x Auto-Programme
Effects Colour Scroll (Variable Speed)
Colour Strobe (Variable Speed)
Strobe Rate 0 to 20 Hz
Gobos 7 x Removable Glass Spot/Open
7 x Fixed Glass Spot/Open
Gobo Size Glass Gobo:
Outer Diameter: 1" / 25.5 mm
Max Image Size: 0.8" / 20.3 mm
Max Thickness: 0" / 1.1 mm
Glass Gobo:
Outer Diameter: 0.9" / 22.5 mm
Max Image Size: 0.8" / 20.3 mm
Max Thickness: 0" / 1.1 mm
Movement
Tilt Ranges 270° / 180° / 90°
Pan Ranges 540° / 360° / 180°
Pan/Tilt Inversion Yes
Control
Control Protocols DMX512, W-DMX, Art-Nett, sACN
DMX Channel Modes 2 Mode(s):
33 / 50-Channel
Display / Controls LCD / 6-Button
Remote Control None
Connectivity
Inputs/Outputs 2 x XLR 5-Pin DMX Input/Output
2 x XLR 3-Pin DMX Input/Output
2 x etherCON/RJ45 Data Input/Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON TRUE1
Output: 1 x None
Power / Current Consumption 100 VAC, 60 Hz: 800 W / 8.01 A
120 VAC, 60 Hz: 780 W / 6.41 A
208 VAC, 60 Hz: 764 W / 3.68 A
230 VAC, 50 Hz: 754 W / 3.31 A
240 VAC, 50 Hz: 762 W / 3.19 A
Environmental
IP Rating IP20
Environmental Protection Advertised as Dust Resistant
*Manufacturer Testing: IP20
Operating Temperature -22 to 113°F / -30 to 45°C
Physical
Mounting Omega Bracket
Duty Cycle None
Exterior Colour Black
Certifications COE, FCC
*as per Manufacturer
Dimensions 26.38 x 15.51 x 10.71" / 67.01 x 39.4 x 27.2 cm
Weight 57.3 lb / 26 kg

In The Box

  • CHAUVET PROFESSIONAL Maverick Force 2 Profile 580W LED Moving Head Light Fixture with Gobos
  • Seetronic Powerkon IP65 Power Cord
  • Omega Brackets with Mounting Hardware

Reviews

0.0 (no ratings yet)

Details

  • Product: Chauvet Professional Maverick Force 2 Profile 580W LED Moving Head Light Fixture with Gobos
  • Manufacturer: Chauvet
  • Model: MAVERICK FORCE2 PFL
  • SKU: MAVERICK FORCE2 PFL
  • RM Product #: 104582
