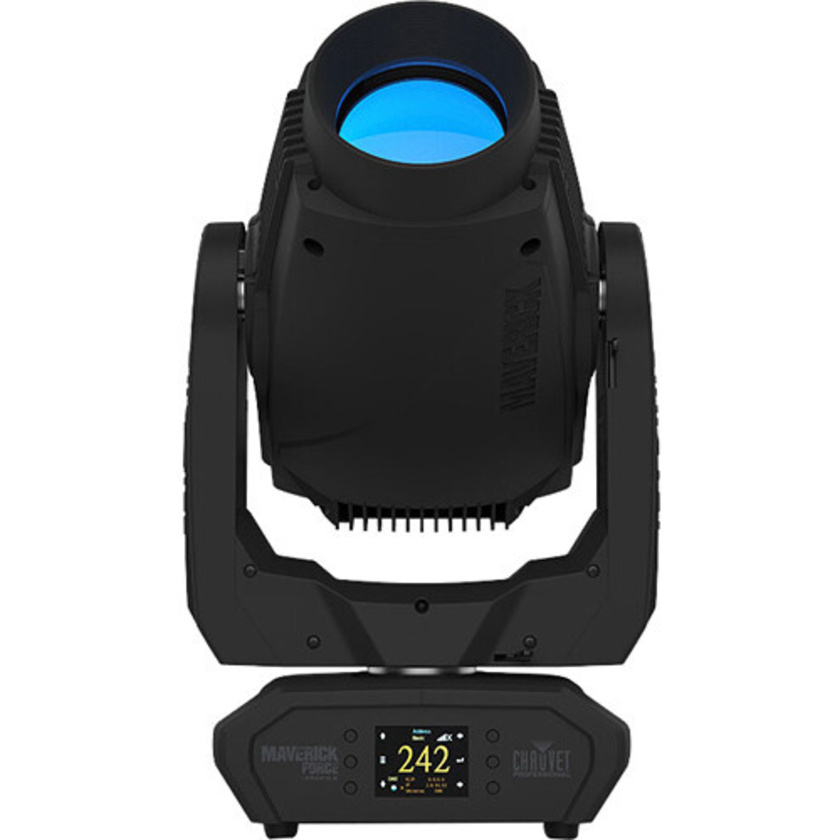

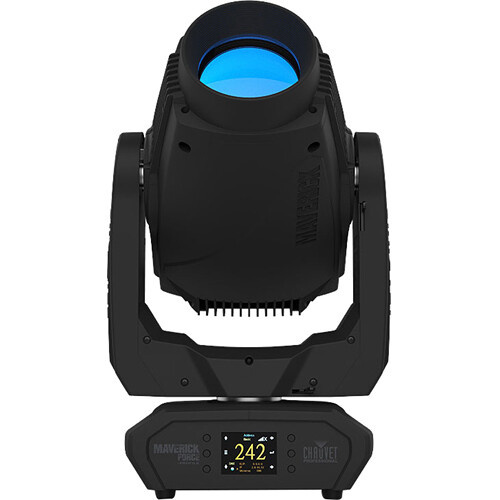

Chauvet Professional Maverick Force S Profile 350W LED Moving Head Fixture (Black)

Product #104583 | SKU MAVERICK FORCE-S PF | Chauvet
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Clubs, Mobile DJs, Small/Medium Venues
  • Compact/Lightweight 350W LED Moving Head
  • CMY+CTB Colour Mixing, 16-Bit Dimming
  • 8-Slot Colour Wheel, Split/Scroll
  • 2 Gobo Wheels (Static/Rotating)
  • 4.5 to 41.6° Motorised Zoom

Description

The Chauvet Professional Maverick Force S Profile 350W LED Moving Head Fixture is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, framing shutters, and control options in a lightweight frame. Just over 50 lbs, this compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color mixing with a CTB filter.

An 8-slot color wheel is also added with split-color combinations in mind. Maverick Force S Profile includes a custom framing system equipped with dual axis movement and a 120° complete module rotation for fast beam shaping. A speedy effects artillery includes motorised iris, frost, focus, a 5-facet prism and wide zoom ranging from 4.5° to 41.6°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

Key Features
  • Fully featured, compact and lightweight 350 W LED yoke profile fixture including CMY color mixing, a color wheel, zoom optics, framing shutters with rotation, and two gobo wheels, one rotating, and one static
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY color mixing system to create a wide pallet of colors
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM Enabled for remote addressing and trouble shooting
  • 4.5° to 41.6° zoom range for variable beam sizes
  • Iris, 5-facet prism, and frost for beam control
  • 4 blade framing shutters with dual axis movement, full wipe, and 120 degree total module rotation
  • True 1 compatible power input
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation

Specifications

Light
Fixture Type Moving Head
Light Source 1 x White LED - 350 W / 2.7 A
Light Source Life Expectancy 50,000 Hours
Colours Cyan, Magenta, Yellow
Photometrics 7°:
4818.3 fc / 51,865 Lux at 16.4' / 5 m
56°:
153.1 fc / 1648 Lux at 16.4' / 5 m
Colour Temperature 6937K
Lumen Output 14,669 Lumens
Beam Angle 4.5 to 35.9°
Field Angle 45.2 to 40.5°
Shutter / Strobe Electronic
Iris Yes, Mechanical
Focus Motorised
Zoom Adjustment Motorised, 4 to 41°
Dimming 16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Prism 5-Facet Circular (Rotating)
Performance
Operating Modes Colour Dimmer, DMX, Display Inversion
Macros / Programmes Chase Macro
Movement Macro
Effects Colour Scroll
Colour Split
Colour Strobe
Gobo Scroll
Gobo Shake
Move-in-Black
Strobe Rate 0 to 20 Hz
Gobos 7 x Removable Glass Gobo
9 x Fixed Metal Gobo
Gobo Size Glass Gobo:
Outer Diameter: 1" / 25.5 mm
Max Image Size: 0.67" / 17.02 mm
Movement
Tilt Ranges 270° / 180° / 90°
Pan Ranges 540° / 360° / 180°
Pan/Tilt Inversion Yes
Movement Resolution 16-Bit
Control
Control Protocols DMX512, W-DMX, RDM, Art-Nett, sACN
DMX Channel Modes 2 Mode(s):
31 / 47-Channel
Remote Control Yes
Connectivity
Inputs/Outputs 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
2 x etherCON/RJ45 DMX/Network Input/Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x Seetronic IP-Rated
Output: 1 x Seetronic IP-Rated
Cord Length: 5' / 1.5 m
Fuse F 10 A 250 V
Power / Current Consumption 100 VAC, 60 Hz: 580 W
120 VAC, 60 Hz: 563 W
208 VAC, 60 Hz: 547 W
230 VAC, 50 Hz: 546 W
240 VAC, 50 Hz: 543 W
Power Linking 2 Units at 100 VAC
2 Units at 120 VAC
5 Units at 208 VAC
4 Units at 230 VAC
5 Units at 240 VAC
Environmental
IP Rating IP20
Environmental Protection Advertised as Dust Resistant
*Manufacturer Testing: IP20
Operating Temperature -22 to 113°F / -30 to 45°C
Physical
Mounting Omega Bracket
Exterior Colour Black
Cooling Convection, Fan
Certifications COE, FCC, MET
*as per Manufacturer
Dimensions 63.9 x 36.1 x 23.8 cm
Weight 24 kg

In The Box

  • CHAUVET PROFESSIONAL Maverick Force S Profile 350W LED Moving Head Fixture (Black)
  • Seetronic Powerkon IP65 Power Cord
  • Omega Brackets with Mounting Hardware
