Chauvet Professional Rogue Outcast 1 Hybrid Outdoor-Ready IP65 Spot/Beam/Wash Moving Head has been discontinued, here are some related products you might like:

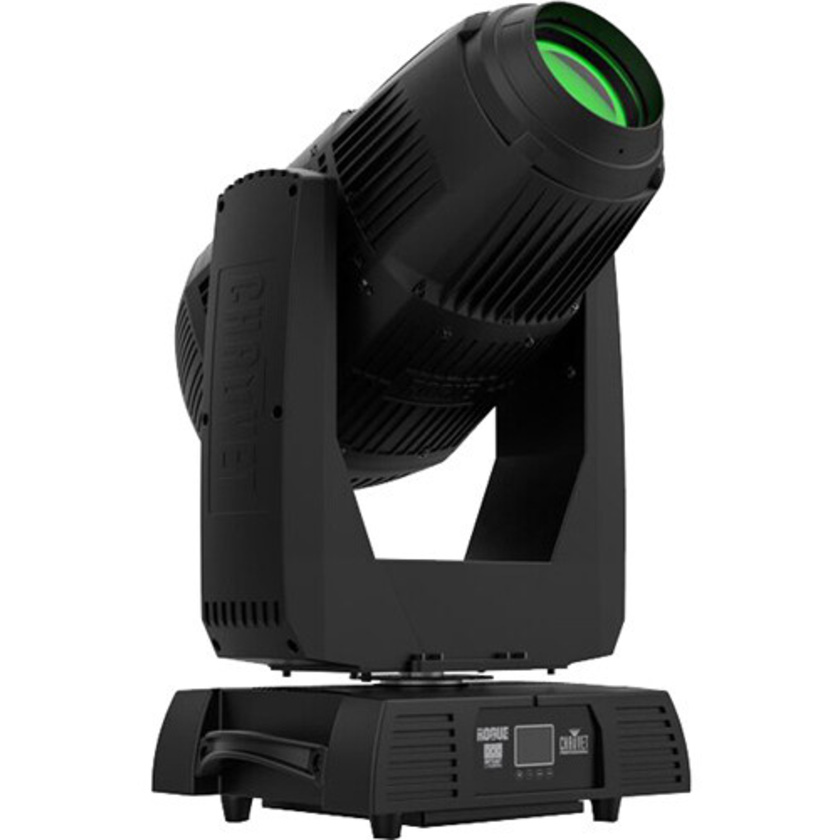

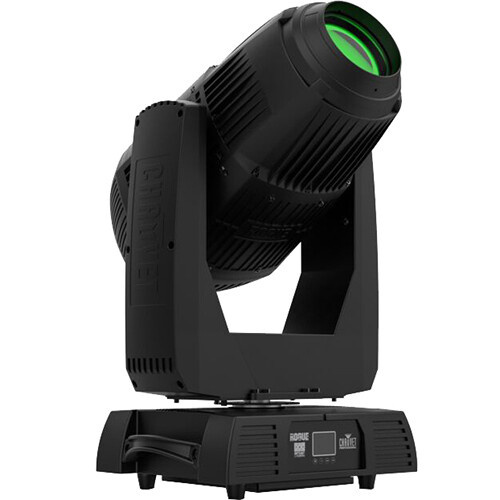

Chauvet Professional Rogue Outcast 1 Hybrid Outdoor-Ready IP65 Spot/Beam/Wash Moving Head

Product #104523 | SKU ROGUE OUTCAST 1 HYB | Chauvet
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Bright, USHIO NSL-400 W Lamp
  • Spot Mode Beam Angle: 2.2 to 12.4°
  • Beam Mode Beam Angle: 1 to 5.2°
  • Wash Mode Beam Angle: 4.9 to 18°
  • Colour Wheel with 13 Colours, Split Colours
  • Glass and Metal Gobo Wheels

Description

The Chauvet Professional Rogue Outcast 1 Hybrid Outdoor-Ready IP65 Spot/Beam/Wash Moving Head is an outdoor-ready, IP65 spot/beam/wash moving head ideal for small to medium festivals and events. Powered by an intense 400W lamp, Rogue Outcast 1 Hybrid delivers a 6500 K output with tight beam angles of 1° to 5° in Beam Mode and a zoom range of 2.2° to 29.1° in Spot Mode and 4.9° to 28.3° in Wash Mode for maximum visual impact. This feature-packed unit offers 1 rotating and 1 static gobo wheel, 2 individually controllable 8 and 5-facet layerable prisms, and a 14-hue color wheel for solid and split colours. Control is over DMX and RDM.

Key Features
  • Fully featured, IP 65 rated, high powered Spot/Beam/Wash combination fixture with an USHIO 400W, 6500K with 6000 hour life expectancy lamp, 2 gobo wheels, 2 layerable prisms, and linear zoom
  • Rugged housing designed to withstand the elements in a temporary outdoor setting
  • Individually controllable and layerable 6 facet linear and 8 facet round prisms for maximizing visual impact
  • Frost and beam flattening options for even light distribution
  • Tight 2° narrow beam angle for focused air effects
  • Linear zoom of 1 ° to 15.3° in beam mode, 2.2° to 29.1° in spot mode and 4.9° to 28.3° in wash mode for coverage in any application
  • 9 rotating and 13 static gobos for massive visual effect
  • DMX and RDM protocol control
  • True 1 compatible power input

Specifications

Light
Fixture Type Moving Head / Spotlight
Light Source Life Expectancy 6000 Hours
Photometrics 4°:
19,446.4 fc / 209,326 Lux at 16.4' / 5 m
24°:
533.4 fc / 5742 Lux at 16.4' / 5 m
2°:
11,438.2 fc / 123,124 Lux at 16.4' / 5 m
13°:
326.7 fc / 3517 Lux at 16.4' / 5 m
9°:
1590.3 fc / 17,118 Lux at 16.4' / 5 m
26°:
145.9 fc / 1570 Lux at 16.4' / 5 m
Colour Temperature 6483K
Lumen Output 14,575 Lumens (Source)
9263 Lumens (Output)
Shutter / Strobe Electronic
Iris Yes, Electronic
Focus Motorised
Zoom Adjustment Motorised, 1 to 29°
Dimming 16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Prism 5-Facet Linear (Rotating)
Performance
Operating Modes Automatic, Colour Change, Colour Dimmer, DMX, Primary/Secondary, Programme
Macros / Programmes 31 x Movement Macro
Effects Strobe
Gobos 9 x Removable Glass Spot/Open
13 x Fixed Metal Spot/Open
Gobo Size Glass Gobo:
Outer Diameter: 1" / 25.5 mm
Max Image Size: 0.8" / 20.3 mm
Max Thickness: 0" / 1.1 mm
Glass Gobo:
Outer Diameter: 0.6" / 15.9 mm
Max Image Size: 0.5" / 12 mm
Max Thickness: 0" / 1.1 mm
Movement
Tilt Ranges 255° / 180° / 90°
Pan Ranges 540° / 360° / 180°
Pan/Tilt Inversion Yes
Control
Control Protocols DMX512, RDM
DMX Channel Modes 2 Mode(s):
20 / 25-Channel
Display / Controls LCD / 4-Button
Remote Control None
Mobile App Compatible No
*As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Connectivity
Inputs/Outputs 2 x XLR 5-Pin DMX Input/Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON
Output: 1 x powerCON
Power / Current Consumption 120 VAC, 60 Hz: 514 W / 4.32 A
208 VAC, 60 Hz: 513 W / 2.5 A
230 VAC, 50 Hz: 520 W / 2.26 A
Environmental
IP Rating IP65
Physical
Mounting Omega Bracket
Included Accessories 1 x Power Cable
Duty Cycle None
Exterior Colour Black
Dimensions 30.16 x 15.91 x 12.2" / 76.61 x 40.41 x 30.99 cm
Weight 83.8 lb / 38 kg

In The Box

  • CHAUVET PROFESSIONAL Rogue Outcast 1 Hybrid Outdoor-Ready IP65 Spot/Beam/Wash Moving Head
  • Seetronic Powerkon IP65 Power Cord
  • Omega Bracket with Mounting Hardware
