The Chauvet SlimPAR H6 ILS is a low-profile LED PAR with 6-in-1 LED technology (RGBAW+UV) that lets you generate a broad spectrum of colors and achieve natural-looking color temperatures. SlimPAR H6 ILS features ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. This powerful par lets you create customized colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves. SlimPAR H6 ILS is flicker-free which makes it great for on-camera use. Other control options include D-Fi USB compatibility for wireless Master/Slave or DMX control and DMX, Master/Slave and Sound-Active modes as well as point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote.

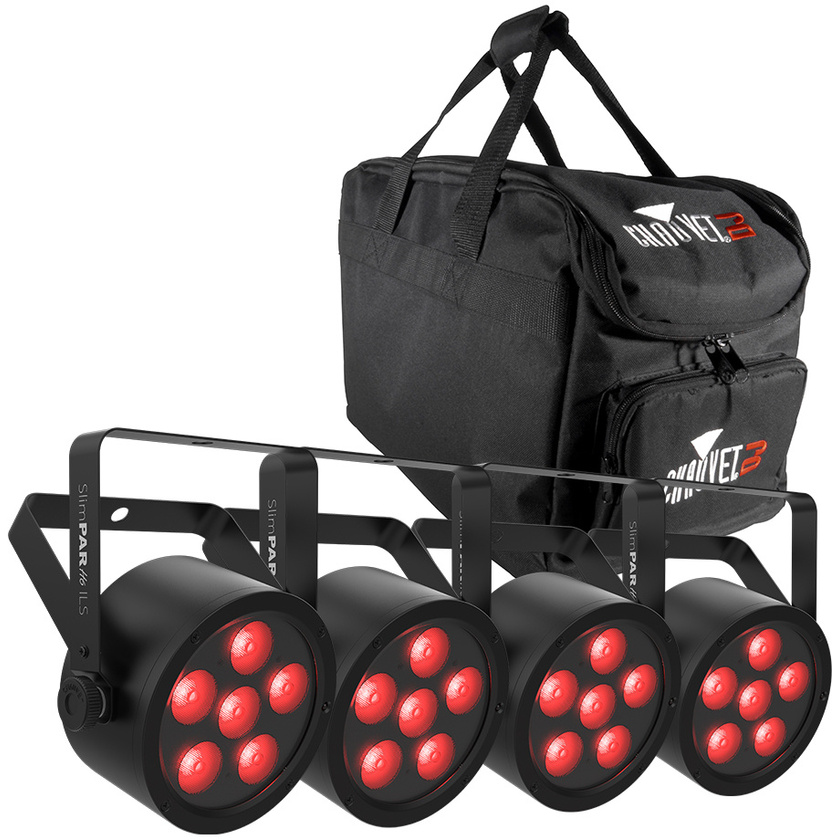

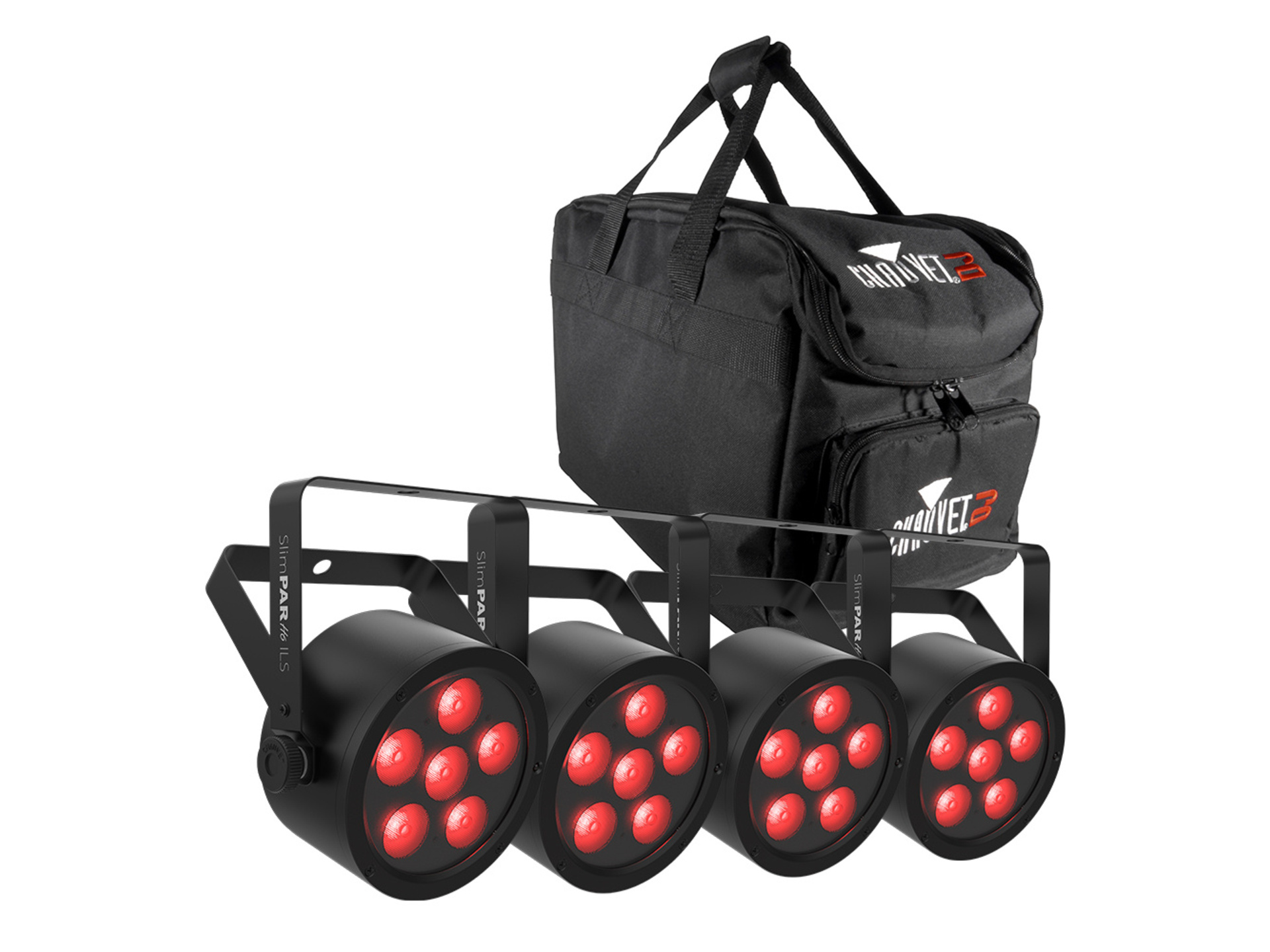

Chauvet SlimPAR H6 ILS 4 Light Bundle
This product is no longer available
Features
- Integrated Lighting System (ILS)
- Generate a Broad Spectrum of Colours
- Natural Looking Colour Temperatures
- D-Fi USB Compatibility for Wireless DMX
- Static Colour Mixing + Auto Programmes
- DMX and Power Linking Capable
Description
Specifications
| Key Specs | |
| Fixture Type | PAR |
| Light Source | 6x Colour LED - 8 W / 1.1 A |
| Colours | Red, Green, Blue, Amber, White, Ultraviolet |
| Beam Angle | 25° |
| Control Protocols | DMX512 |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Power / Current Consumption | 120 VAC, 60 Hz: 41 W / 0.6 A 230 VAC, 50 Hz: 41 W / 0.3 A |
| Mounting | Dual/Scissor Yoke |
| Light | |
| Fixture Type | PAR |
| Light Source | 6x Colour LED - 8 W / 1.1 A |
| Expected Lamp Life | 50,000 Hours |
| Colours | Red, Green, Blue, Amber, White, Ultraviolet |
| Photometrics | 176 fc / 1891 Lux at 6.6' / 2 m |
| Beam Angle | 25° |
| Field Angle | 43° |
| Iris | No |
| Focus | Manual |
| Zoom Adjustment | No |
| Dimming | Electronic, 0 to 100% |
| Performance | |
| Operating Modes | DMX, Primary/Secondary, Standalone |
| Macros / Programmes | Auto-Programme Sound-Active Colour Macro |
| Effects | Strobe (Variable Speed) |
| Strobe Rate | 0 to 30 Hz |
| Gobos | No |
| Control | |
| Control Protocols | DMX512 |
| DMX Channel Modes | 3 Mode(s):6 / 8 / 12-Channel |
| Remote Control | IR Remote (with Optional Equipment) D-Fi USB (with Optional Equipment) |
| Connectivity | |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| Power | |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1x IEC Output: 1x Edison Plug Type: NEMA 5-15 |
| Power / Current Consumption | 120 VAC, 60 Hz: 41 W / 0.6 A 230 VAC, 50 Hz: 41 W / 0.3 A |
| Power Linking | 14 Units at 120 VAC 24 Units at 230 VAC |
| Environmental | |
| Environmental Protection | No |
| Physical | |
| Mounting | Dual/Scissor Yoke |
| Included Accessories | 1x Power Cable |
| Exterior Colour | Black |
| Cooling | Convection |
| Certifications | COE, RoHS, |
| Dimensions | 8.8 x 7.5 x 3.3" / 22.4 x 19.1 x 8.4 cm |
| Weight | 2.6 lb / 1.2 kg |
In The Box
- 4 x Chauvet DJ SlimPAR H6 ILS Wash Lights
- 1 x CHS VIP Gear Bag
