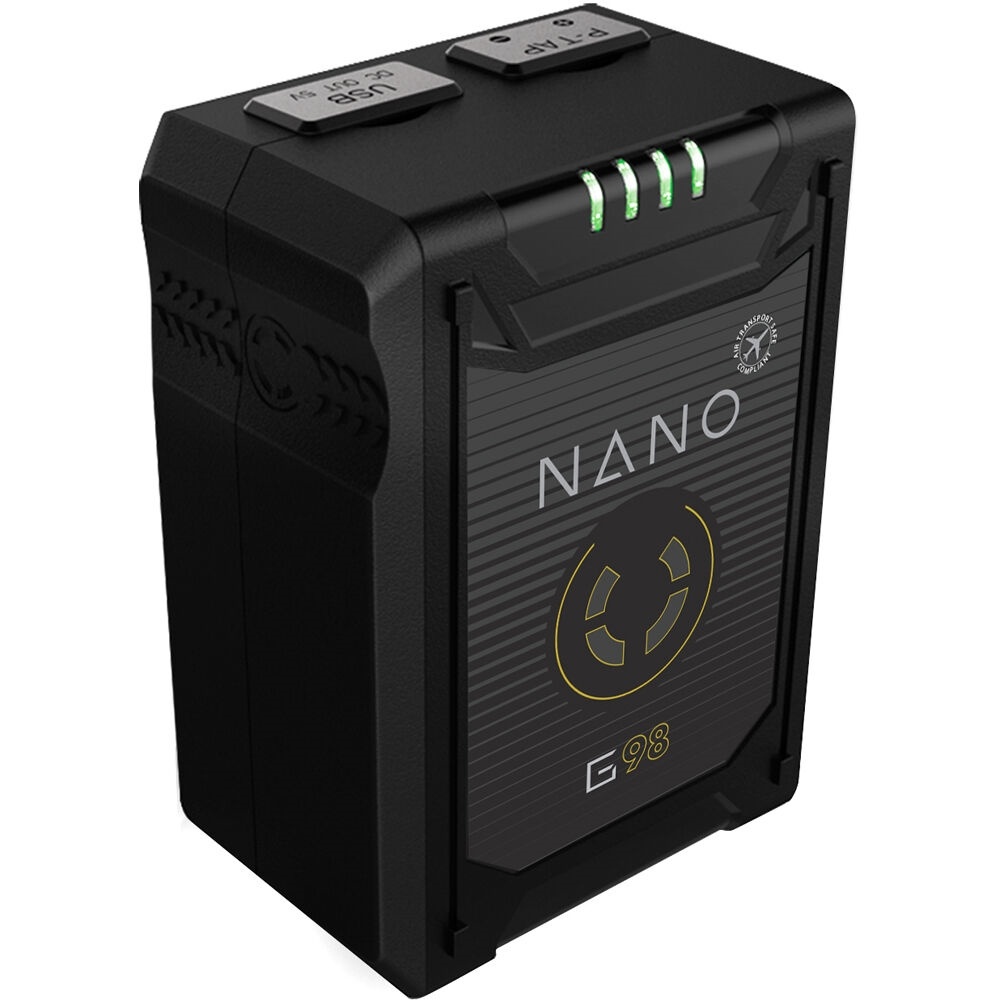

Core SWX NANO Micro 98Wh Lithium-Ion Battery (Gold Mount)
Features
- 98Wh Lithium-Ion Gold Mount Battery
- Supports up to 10A Continuous Draw
- 12V D-Tap & 5V USB Type-A Outputs
- Can Charge Battery Using D-Tap
- 4-Stage LED Status Gauge
Description
The Nano-Micro is quite possibly the smallest style pack on the market today. Measuring in at less than 4″ in height and 2″ in depth, while weighing a feathery 1.2 lbs., the NANO-G98 is the perfect “grab and go” pack for the majority of powering applications. Capable of handling up to a 10A load, consider these packs for lighter camera powering applications, onboard monitors, recorders, wireless TX/RX, etc.
The 14.8v, 98wh capacity allows for the packs to be transported carry-on without restrictions under IATA, ICAO, and UN regulations. The packs have been UN tested and certified, passing UN38.3 certification.
The Core NANO packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-stage LED gauge to view remaining power.
Specifications
| Mount / Series Type | Gold Mount |
| Chemistry | Lithium-Ion |
| Capacity (Wh) | 98 Wh |
| Amp-Hours | 6.6 Ah |
| Output Voltage | 14.8 VDC |
| Maximum Load | 10 A |
| Accessory Port | 1 x D-Tap Input/Output 1 x USB Type-A Output |
| USB Output | 5 V, 3 A |
| Dimensions (W x H x D) | 3.93 x 2.82 x 1.94" / 99.82 x 71.63 x 49.28 mm |
| Weight | 1.2 lb / 544 g |
In The Box
- Core SWX NANO Micro 98Wh Lithium-Ion Battery (Gold Mount)
Reviews
(no ratings yet)Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Core SWX NANO Micro 98Wh Lithium-Ion Battery (Gold Mount)
- Manufacturer: Core SWX
- Model: 52.NANO-G98
- SKU: 52.NANO-G98
- RM Product #: 80180
- Battery Mount / Series: Gold Mount
- Wattage / mAh: 98Wh
- Battery: Lithium-Ion
- Batteries / Chargers: Batteries Only
- Warranty: 1 year manufacturer warranty
