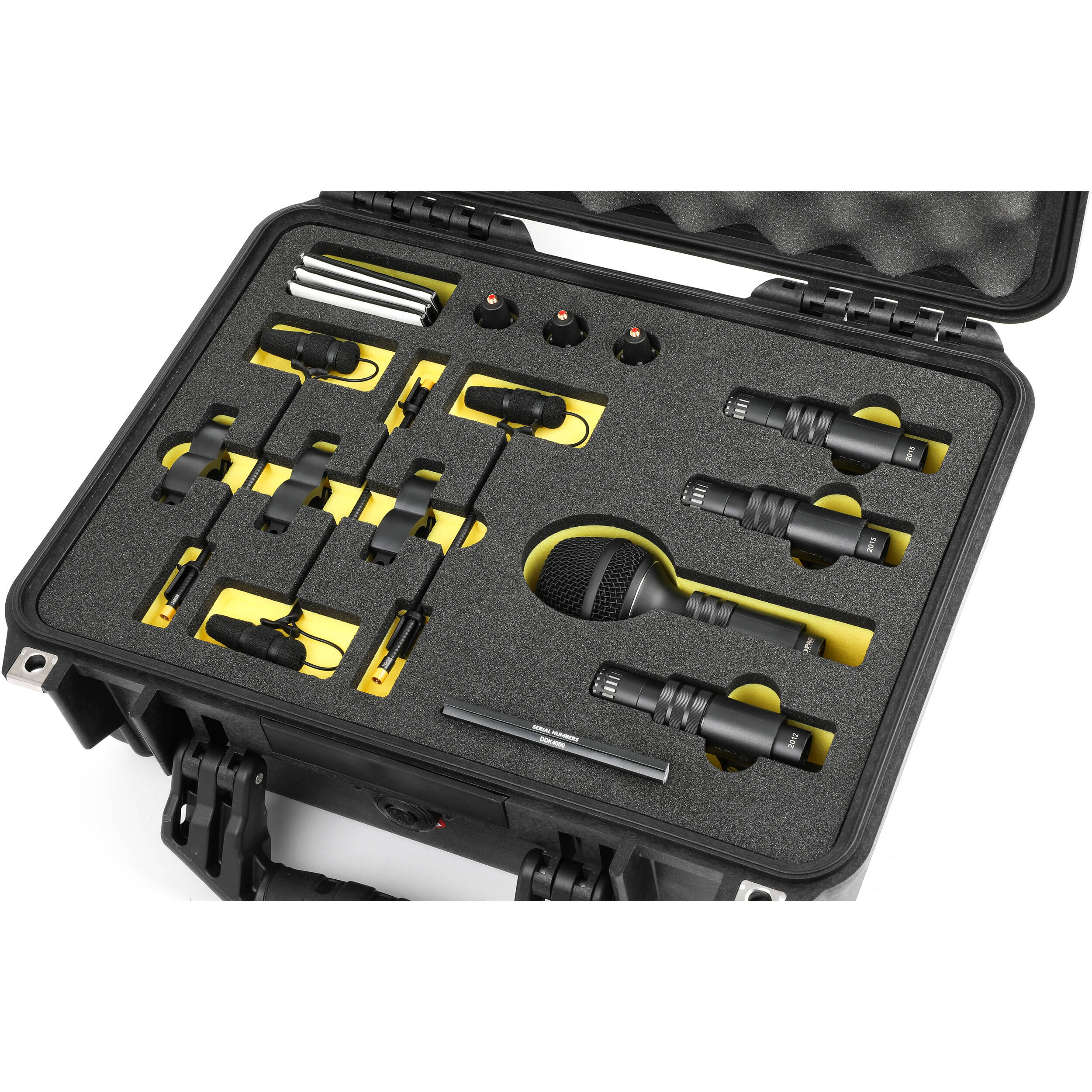

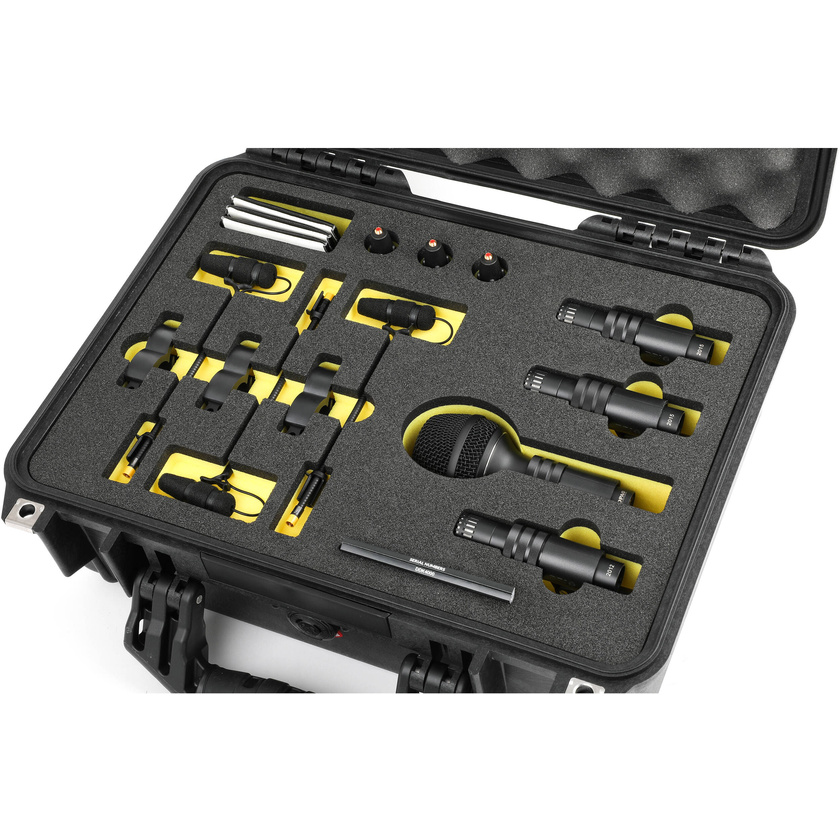

DPA Microphones DDK4000 Drum Microphone Kit

Product #109437 | SKU DDK4000 | DPA Microphones
Usually ships in 4 - 6 weeks what does this mean?
Our Price $8,099
Usually ships in 4 - 6 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • Complete Microphone Set for Drums
  • One 2012 Cardioid Condenser
  • 2015 Wide-Cardioid Condenser Stereo Pair
  • One 4055 Kick Drum Microphone
  • Three 4099 Extreme SPL Mics + Drum Clips
  • Includes XLR Adapters for 4099 Mics

Description

DPA’s selection of mics for the DPA Microphones DDK4000 Drum Microphone Kit is designed specifically to put the sound engineer in control of the sound. By starting with the clear, true sound of the entire kit, the engineer has the best starting point to shape the sound wanted for the situation. These mics guarantee a natural and precise sound reproduction of the entire kit. The specific mic placements prevent artefacts, bleed and other shadowing effects.

The 2012 can be used as an all-around microphone in applications where dynamic microphones are typically used. In fact, as a condenser mic, it has several advantages over its dynamic counterparts:

A wide cardioid overhead microphone for ambient pick up of a drum kit or other instrument groups. The 2015 can be positioned close to the drum kit (i.e., over the cymbals) and still capture sound evenly across the entire drum kit. This closer position results in stronger signal from the drum kit and therefore less bleed from the stage.

A flexible, professional mic that captures the power and true sound of the kick drum, when placed inside or outside the drum. The 4055 is one of the only kick drum mics that is not sonically pre-tailored to fit a traditional sound in a specific genre. Its low frequency response and dynamics are superb and result in a tight, natural, well-defined sound - the best low-end with detailed mids and highs.

The 4099 perfectly captures the booming sounds of drums and percussion instruments. The mic can be easily positioned to fit diverse types of drums and excel on the snare, toms and hi-hats. The flexible gooseneck can be positioned at different angles to allow a variety of sound nuances. The mic is elegant, lightweight, unobtrusive and designed to stay out of the way during performance.

Specifications

DPA Microphones 2012 Compact Cardioid Condenser Microphone
Microphone
Primary Applications Live Sound, Studio Recording
Form Factor Stand/Boom Mount
Intended Sound Sources Acoustic Guitar, Electric Guitar, Drums, Percussion, Snare, Cymbals, Instrument, Horns
Sound Field Mono
Operating Principle Pressure Gradient
Element Type 1 x Electret Condenser
Diaphragm 0.7" / 17 mm
Polar Pattern Cardioid
Windscreen Foam (Included)
Performance
Frequency Range 40 Hz to 20 kHz (at 11.8" / 30 cm)
Maximum SPL 148 dB SPL RMS (1% THD)
151 dB SPL Peak (1% THD)
153 dB SPL RMS (10% THD)
156 dB SPL Peak (10% THD)
Impedance 60 Ohms
Load Impedance 2 Kilohms
Sensitivity -42 dB (1 kHz)
Output Level 21 dBu (Max)
Dynamic Range 131 dB (Typical)
Equivalent Noise Level 20 dB A-Weighted
CMRR 60 dB
Connectivity
Output Connector 1 x XLR 3-Pin Male (on Mic)
Power
Operating Voltage 48 V
Operating Current Consumption 0.7 mA
Physical
Colour Black
Mounting Mic Clip/Stand Adapter (Included)
Included Case Zipper Pouch
Included Filters None
Operating Temperature -40 to 113°F / -40 to 45°C
Operating Humidity 90%
Dimensions ø: 0.7 x L: 3.7" / ø: 19 x L: 94 mm
Weight 2.9 oz / 83 g
DPA Microphones ST2015 Compact Wide-Cardioid Condenser Microphone (Stereo Pair)
Microphone
Primary Applications Live Sound, Studio Recording
Form Factor Stand/Boom Mount
Intended Sound Sources Piano, Drums, Percussion, Overhead, Instrument, Horns, Brass, Room Ambiance
Sound Field Mono
Operating Principle Pressure Gradient
Element Type 1 x Electret Condenser
Diaphragm 0.7" / 17 mm
Polar Pattern Subcardioid/Wide Cardioid
Windscreen Foam (Included)
Performance
Frequency Range 40 Hz to 18 kHz (at 11.8" / 30 cm)
Maximum SPL 147 dB SPL RMS (1% THD)
150 dB SPL Peak (1% THD)
150 dB SPL RMS (10% THD)
153 dB SPL Peak (10% THD)
Impedance 60 Ohms
Load Impedance 2 Kilohms
Sensitivity -37 dB (1 kHz)
Output Level 21 dBu (Max)
Dynamic Range 132 dB (Typical)
Equivalent Noise Level 18 dB A-Weighted
CMRR 60 dB
Connectivity
Output Connector 1 x XLR 3-Pin Male (on Mic)
Power
Operating Voltage 48 V
Operating Current Consumption 0.7 mA
Physical
Colour Black
Mounting Mic Clip/Stand Adapter (Included)
Included Case Zipper Pouch
Included Filters None
Operating Temperature -40 to 113°F / -40 to 45°C
Operating Humidity 90%
Dimensions ø: 0.7 x L: 3.7" / ø: 19 x L: 94 mm
Weight 2.9 oz / 83 g
DPA Microphones 4055 Kick Drum Microphone With Holder
Microphone
Primary Applications Live Sound, Studio Recording
Form Factor Stand/Boom Mount
Intended Sound Sources Kick Drum
Sound Field Mono
Operating Principle Pressure Gradient
Element Type 1 x Electret Condenser
Polar Pattern Open Cardioid
Windscreen Built-In, Foam
Performance
Frequency Range 40 Hz to 18 kHz
Maximum SPL 164 dB SPL
Impedance 380 Ohms
Load Impedance 2 Kilohms
Sensitivity -54 dB
Dynamic Range 132 dB (Typical)
Equivalent Noise Level 39 dB (Typical)
THD < 1%
CMRR 55 dB
Connectivity
Output Connector 1 x XLR 3-Pin Female (on Mic)
Power
Operating Voltage 48 V (Phantom Power)
Operating Current Consumption 2 mA
Physical
Colour Black
Mounting Mic Clip/Stand Adapter (Included)
Included Case Zipper Pouch
Included Filters None
Operating Temperature -40 to 113°F / -40 to 45°C
Operating Humidity 90%
Dimensions ø: 2.2 x L: 5.2" / ø: 57 x L: 132 mm
Weight 8.5 oz / 241 g
DPA Microphones Core 4099 Instrument Microphone, Extreme SPL, With Clip For Drum
Microphone
Form Factor Gooseneck
Operating Principle Pressure Gradient
Element Type Electret Condenser
Polar Pattern Supercardioid
Performance
Frequency Range 20 Hz to 20 kHz ±2 dB (at 7.9" / 20 cm)
Maximum SPL 152 dB SPL
Impedance 35 Ohms ± 14%
Sensitivity 2 mV/Pa
-54 dBV/Pa
Dynamic Range 109 dB
Signal-to-Noise Ratio 66 dB A-Weighted (1 kHz, at 1 Pa/94 dB SPL)
Equivalent Noise Level 28 dB A-Weighted (20 μPa, Typical)
31 dB A-Weighted (20 μPa, Max)
THD < 1%
CMRR 60 dB
Connectivity
Output Connector 1 x Microdot
Cable Length 5.9' / 1.8 m
Power
Operating Voltage 5 to 50 V
Operating Current Consumption 1.5 mA
Physical
Operating Temperature -40 to 113°F / -40 to 45°C
Operating Humidity 0 to 90%
Dimensions ø: 0.21 x L: 1.8" / ø: 5.4 x L: 45 mm (Microphone)
L: 5.5" / L: 140 mm (Gooseneck)
Weight 0.95 oz / 27 g

In The Box

  • DPA Microphones 2012 Compact Cardioid Condenser Microphone
  • DPA Microphones ST2015 Compact Wide-Cardioid Condenser Microphone (Stereo Pair)
  • DPA Microphones 4055 Kick Drum Microphone with Holder
  • DPA Microphones Core 4099 Instrument Microphone, Extreme SPL, with Clip for Drum
