DYNAMIX 305m Cat6A Blue S/FTP Cable Roll, 500MHz, 23AWGx4P PVC Jacket, Supplied on Plastic Reel, Box
DYNAMIX Cat6A FTP Shielded Solid Cable Roll (Blue, 305 m) has been discontinued, here are some related products you might like:

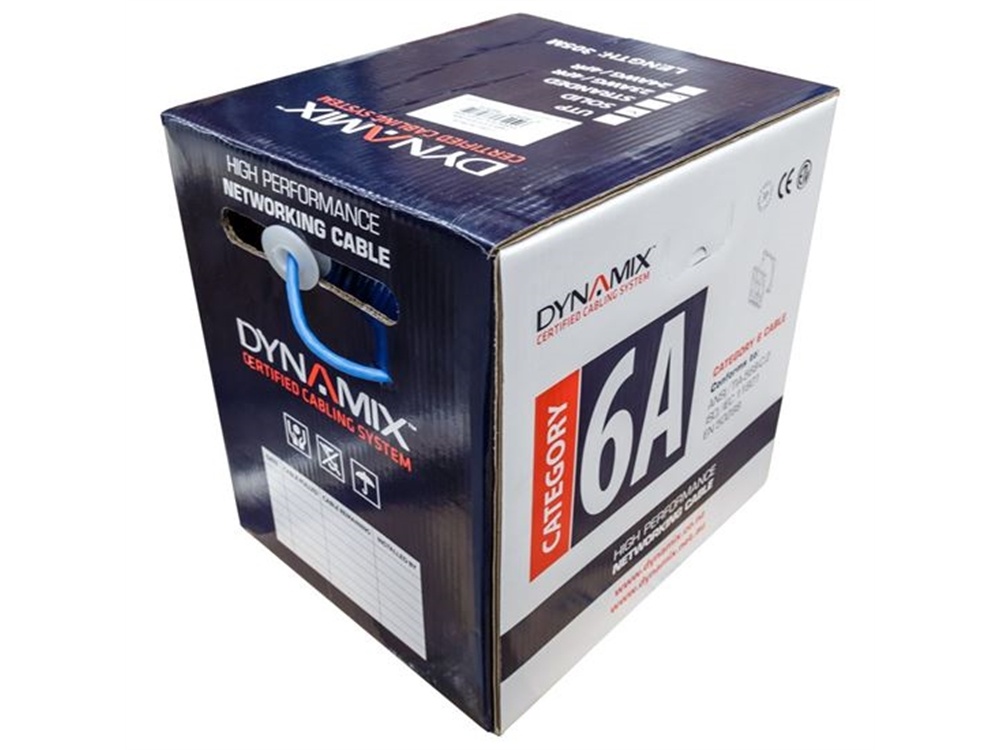

DYNAMIX Cat6A FTP Shielded Solid Cable Roll (Blue, 305 m)
This product is no longer available
Overview
305m Cat6A Blue S/FTP Cable Roll, 500MHz, 23AWGx4P PVC Jacket, Supplied on Plastic Reel Box
Description
Specifications
| Conductor | Material | SOLID-Bare Copper | |
| Nom. O.D. (mm) | 0.560 | Up Down |
+0.005 -0.005 |
| Insulation | Material | Skin-Foam-Skin PE | |
| Diameter | 1.330 0.05mm | ||
| Colour | A. White, Blue | B. White, Orange | |
| C. White, Green | D. White, Brown | ||
| Rip-cord | Yes | Drain Wire | Yes |
| Sheath | Thickness | 0.55 +- 0.05mm | |
| External O.D. | 7.5+- 0.5mm | ||
| Surface | Clean | ||
| Material | PVC (Complies RoHS) | ||
| Colour | Blue | ||
| Sheath Physical Properties | Before Aging | Tensile Strength(Mpa) 13.5 / Elongation(%) 150 | |
| Aging Period (C x hrs) | 100 x 24h x 7d | ||
| After Aging | Tensile Strength(Mpa) >=12.5 / Elongation(%) >=125 | ||
| Cold Blend (-20 +- 2 C x4h) | No visible cracks | ||
| Electrical Characteristics (20 C) | Velocity of Propagation (%) | 74 | |
| 1.0-250.0MHz, Delay Shew (ns/100m) | <=45 | ||
| Unbalanced-to-Ground Capacitance (pf/100m) max | 330 | ||
| DC Resistance (ohm /100m) max | 9.38 | ||
| DC Conductor Resistance Unbalance (%)max | 2.0 |
In The Box
- DYNAMIX Cat6A FTP Shielded Solid Cable Roll (Blue, 305 m)
Reviews
(no ratings yet)Details
- Product: DYNAMIX Cat6A FTP Shielded Solid Cable Roll (Blue, 305 m)
- Manufacturer: Dynamix
- Model: C-C6A1-SLDBLUE
- SKU: C-C6A1-SLDBLUE
- RM Product #: 54552
- Colour: Blue
- Length Meters: 305 m
- Cable Type: Cat6A
- Warranty: Click here for warranty terms view terms
