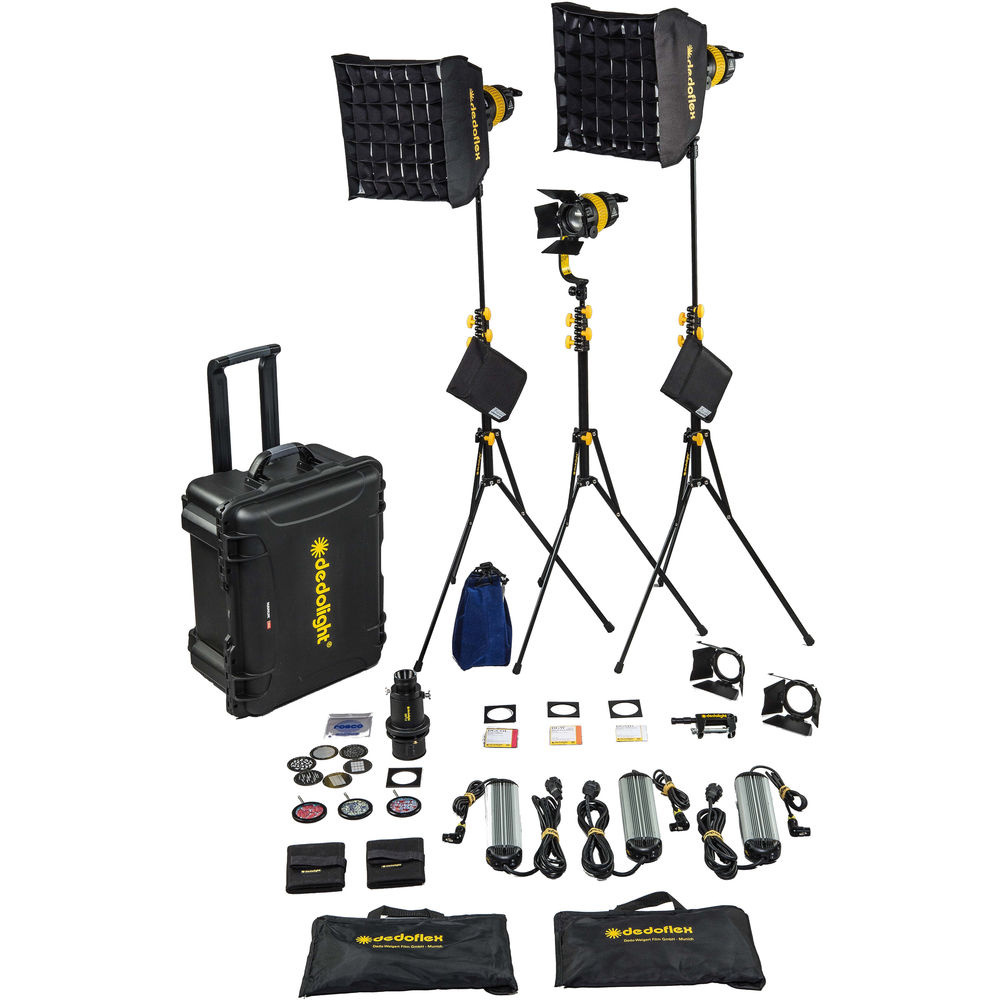

Dedolight DLED7 Turbo LED 3-Light Bi-Colour Kit

Product #104511 | SKU KLT7-3-BI | Dedolight
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 3 x DLED7 Turbo Bi-Colour LED Lights
  • 3 x AC Dimmable Ballasts
  • 3 x 8-Leaf Barndoors
  • 2 x Speed Rings and Softboxes with Grids
  • Projection Attachment with Gobo Set
  • Gel Filter Holder and Gel Filter Set

Description

The most versatile three light head kit on the market, the Dedolight DLED7 Turbo LED 3-Light Bi-Colour Kit covers any three-point lighting setup you can throw at it. Along with the three light heads, their ballasts, and standard accessories like barn doors and light shield rings, this is a great starter kit for anyone who doesn't own a DP1.1 (now the DP1.2) imaging projector. Any dedo user will tell you that having at least one projector for their dedos is a must, and this set up comes with the gobos, color filters and gel sets and their holders needed to make the it shine out of the box. You'll want to build on this set with other optional accessories, but this is a masterful starting point!

Key Features
  • 3 x DLED7 Turbo Bi-Colour LED Lights
  • 3 x AC Dimmable Ballasts
  • 3 x 8-Leaf Barndoors
  • 2 x Speed Rings and Softboxes with Grids
  • Projection Attachment with Gobo Set
  • Gel Filter Holder and Gel Filter Set

Specifications

Light Fixture
Item Type 1 x LED Focusing Flood Light
Photometrics 60° at 5600K
242 fc / 2600 Lux at 3.3' / 1 m*
60 fc / 650 Lux at 6.6' / 2 m
27 fc / 289 Lux at 9.8' / 3 m
15 fc / 163 Lux at 13.1' / 4 m
10 fc / 104 Lux at 16.4' / 5 m
6° at 5600K
1951 fc / 21,000 Lux at 3.3' / 1 m*
488 fc / 5250 Lux at 6.6' / 2 m
217 fc / 2333 Lux at 9.8' / 3 m
122 fc / 1313 Lux at 13.1' / 4 m
78 fc / 840 Lux at 16.4' / 5 m

*Standardised Measurement Supplied by the Manufacturer
Colour Temperature 2700 to 6500K
Colour Accuracy Standard CRI 97
Cooling System Fan
Beam Angle 6 to 60°
Front Accessory Mount 3"
Power & I/O
Power Source AC to DC Adapter (Not Included)
Battery (Not Included)
Inline Switch No
Power Pass-Thru No
Power Consumption 90 W
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting 1 x 5/8" Receiver (Via Yoke Mount)
Environmental
IP Rating IP20
General
Display None
Protection Class III
Dimensions 6.3 x 5.4" / 16 x 14 cm (Fixture)
Weight 2.9 lb / 1.3 kg
Electrical
AC Input Power 90 to 264 VAC, 50 / 60 Hz
Physical
Dimensions 10.4 x 2.8 x 2" / 26.3 x 7.2 x 5 cm
Weight 3.1 lb / 1.4 kg
Mounting
Item Type 8-Leaf Barndoors
Light Compatibility Proprietary Mount: For Dedolight Classic 150 (DLH4) / Dedolight DLHM4-300 / Dedolight DHL200 / Dedolight DLED4 / Dedolight DLED7 / Dedolight "M" Size Light Heads
Materials Metal
Mounting
Compatible Lighting Dedolight
Number of Mounting Holes 4
Mounting
Item Type 12 x 12" Softbox (Square Shape)
Interior Colour Silver
Light Compatibility Direct Attachment (Requires No Bracket/Speed Ring): For Dedolight DLH1x150S
Requires Bracket/Speed Ring (Not Included): For Dedolight DLED4 / Dedolight DLED7 / Dedolight DLH4 / Dedolight DLHM4-300 / Dedolight DLED2 / Dedolight DLED3
Quick Open Type No
Accepts Grids No
Removable Front Face Yes
Interior Baffle Yes
Dimensions 12 x 12" / 30 x 30 cm
General
Colour/Effect Warming
Filter Number None
Physical
Shape Square
Dimensions W: 3 x H: 3" / W: 76.2 x H: 76.2 mm
General
Size 3 x 3" / 7.6 x 7.6 cm
Mounting
Mounting Not Specified by Manufacturer
Clamping Range 1.88" / 4.8 cm
Physical
Clamp Type Pipe
Stand Type 1 x General Purpose Stand
Maximum Working Height 7' / 2.1 m
Minimum Working Height 21" / 53.3 cm
Load Capacity 3 lb / 1.4 kg
Closed Length 19" / 48.3 cm
Mounting
Stand/Column Top Mount 5/8" Stud
Features
Accepts Second Riser No
Wheels Not Compatible
Air Cushioned No
Detachable Base No
Levelling Leg No
Reverse Legs Yes
General
Finish Black
Weight 2.1 lb / 0.9 kg

In The Box

  • Dedolight DLED7 Turbo Bi-Colour Focusing LED Light Head
  • Dedolight DT7-BI AC Ballast
  • Dedolight Dedo Light Shield Ring
  • Dedolight 8-Leaf Barndoor Set with Gel Clips (5.5")
  • Dedolight Mini Speed Ring Adapter for DLH4, 4P, DLH4M-300
  • Dedolight Dedoflex Mini Softbox (Silver, 12 x 12")
  • Dedolight 40° Fabric Grid for DSBSXS Mini Softbox
  • Dedolight Projection Attachment with 85mm f/2.8 Lens
  • Dedolight Dedo Gobo Holder for DP-1, Holds "M" Size Gobos
  • Dedolight Gel Filter Holder 3x3"
  • Dedolight 24-Piece 3 x 3" Warm Tone Filter Set
  • Dedolight 20-Piece 3x3" Filter Set
  • Dedolight Filter Set 3x3" - Colour Effect (36)
  • Dedolight Accessory Pouch - for Dedolight DP-1 Projection Attachment with 85mm f/2.8 Lens (Replacement)
  • Dedolight Light Clamp
  • Dedolight Compact Light Stand (7')
  • Set of 6x Steel Gobos (Size M)
  • DFX Glass Filters with Holders (DFXT6-R, DFXT10-B, DFXT11-P)
  • Hard Case with Handle and Wheels

Reviews

0.0 (no ratings yet)

Details

  • Product: Dedolight DLED7 Turbo LED 3-Light Bi-Colour Kit
  • Manufacturer: Dedolight
  • Model: DLED7 Bi-Color
  • SKU: KLT7-3-BI
  • RM Product #: 104511
  • Colour Temperature: 2700 - 6500K
