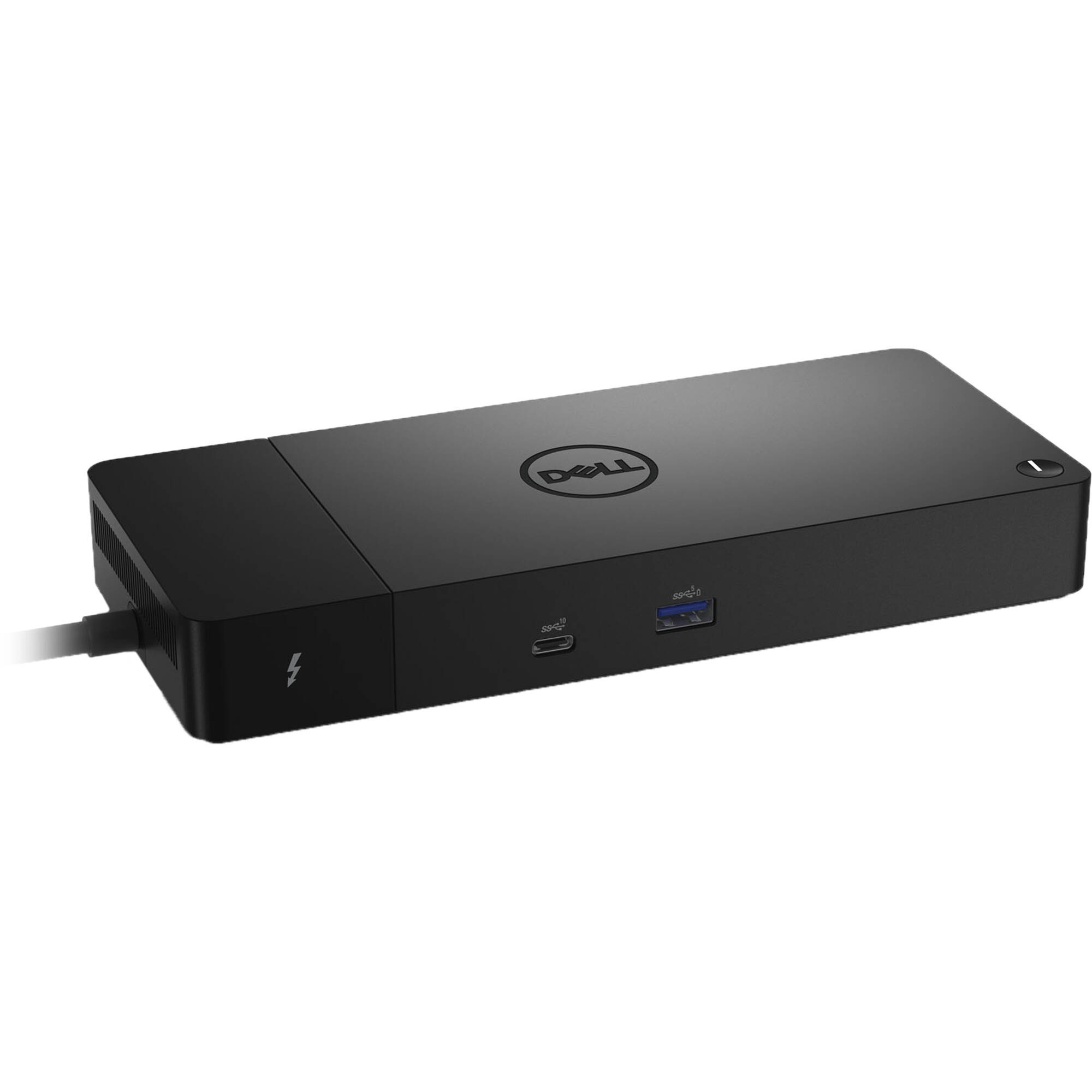

Dell WD22TB4 Thunderbolt Dock

Product #112311 | SKU 210-BEKX | Dell
In stock Ships today
Our Price $399
In stock Ships today
- +

this item may be nonreturnable
Shipping & Availability
Ships today. Deliver to Auckland for $9.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • Provides up to 130W of Power Delivery
  • 2 x Thunderbolt 4 Port
  • 2 x DisplayPort 1.4 Port
  • 1 x HDMI 2.0 Port
  • 1 x USB 3.2 Gen 2 Type-C Port
  • 1 x USB Type-C Multifunction DisplayPort

Description

Enhance your computer's connectivity with the Dell WD22TB4 Thunderbolt Dock. This dock offers a seamless connection to your computer through a male Thunderbolt 4 connector. Once connected, you'll gain access to an array of ports including two Thunderbolt 4, one USB 3.2 Gen 2 Type-C, one USB Type-C multifunction DisplayPort, three USB 3.2 Gen 1 Type-A, two DisplayPort 1.4, one HDMI 2.0, and one Gigabit Ethernet RJ45 LAN. The dock is capable of delivering up to 130W of Power Delivery for Dell systems and up to 90W for non-Dell systems. Its modular design provides easy upgrade options by allowing you to swap modules.

Kindly ensure that you update your system's BIOS, graphics drivers, and Dell Thunderbolt Dock drivers to the latest versions before utilizing the docking station. Using outdated BIOS versions and drivers may prevent your system from recognizing the docking station or hinder its optimal functionality. Always remember to check Dell's official website for any recommended firmware updates available for your docking station.

Specifications

Key Specs
USB I/O 1x USB-C 3.1/3.2 Gen 2
1x USB-C (Unspecified Interface) / Supports Video Alt Mode
3x USB-A 3.0 / 3.1/3.2 Gen 1
2x USB-C (Thunderbolt 4)
Network I/O 1x RJ45 (10/100/1000 Mb/s)
Video I/O 2x DisplayPort 1.4
1x HDMI 2.0
Audio I/O No
Media Card Reader No
System Connection USB-C (Thunderbolt 4)
Ports
USB I/O 1x USB-C 3.1/3.2 Gen 2
1x USB-C (Unspecified Interface) / Supports Video Alt Mode
3x USB-A 3.0 / 3.1/3.2 Gen 1
2x USB-C (Thunderbolt 4)
Network I/O 1x RJ45 (10/100/1000 Mb/s)
Video I/O 2x DisplayPort 1.4
1x HDMI 2.0
Audio I/O No
Media Card Reader No
Host Connections
System Connection USB-C (Thunderbolt 4)
Connection Type Integrated Cable
Powered Connection 130 W
General
Number of Displays Supported 4
Maximum Resolution Supported 5120 x 2880 at 60 Hz
OS Compatibility Windows
Linux
UASP Support No
Power
Power Source AC Adapter
Power I/O Barrel Connector (Unspecified Diameter)
Maximum Power Consumption 180 W (AC Adapter)
AC Input Power 120 to 230 VAC, 50 / 60 Hz
Physical
LED Indicator Power
Lock Slot Yes, Kensington, Noble
Dimensions 8.1 x 3.5 x 1.1" / 20.6 x 8.9 x 2.8 cm
Weight 15.87 oz / 0.45 kg

In The Box

  • Dell Thunderbolt Dock WD22TB4
  • Power Adapter and Cord
