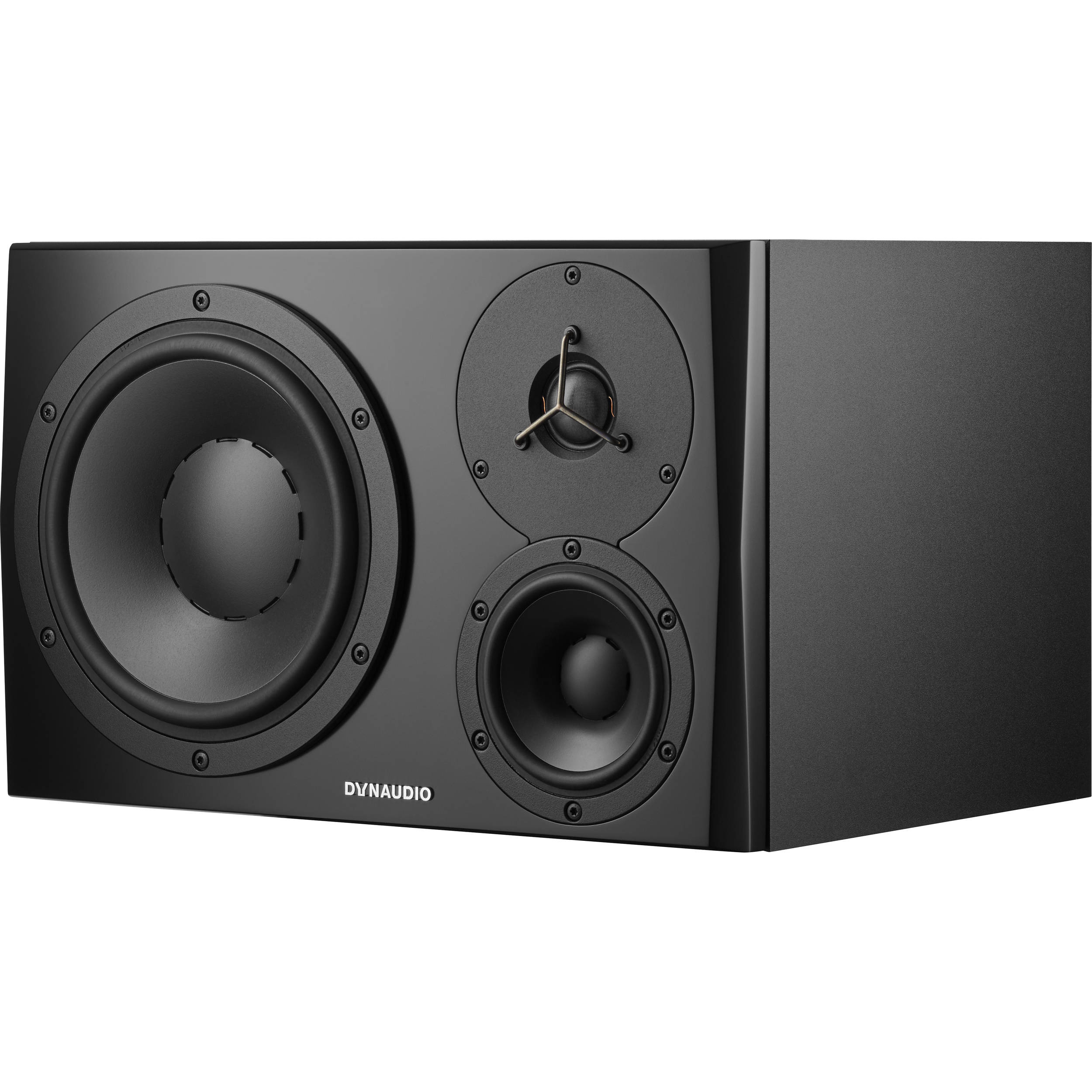

Dynaudio Acoustics LYD 48 3-Way Nearfield Speaker Monitor (Right, Black)

Product #106222 | SKU DY-LYD-48B-R | Dynaudio
Usually ships in 2 - 3 weeks what does this mean?
Our Price $2,549.00
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $31.00 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 8" Woofer
  • 4" Mid-Woofer
  • 1" Soft Dome Tweeter
  • Tri-Amped: 50W / 50W / 80W Class-D
  • 24-Bit / 96 kHz Signal Path and DSP
  • Frequency Response: 40 Hz to 21 kHz

Description

The latest addition to the LYD series: the Dynaudio Acoustics LYD 48 3-Way Nearfield Speaker Monitor. With its newest addition to the LYD personal reference monitor series, Dynaudio is bringing a new perspective to power and precision for producers and musicians everywhere – with unmatched accuracy at any volume level.

This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low frequency response, position and sound-balance using cutting-edge DSP.

Key Features
  • 8" Woofer
  • 4" Mid-Woofer
  • 1" Soft Dome Tweeter
  • Tri-Amped: 50W / 50W / 80W Class-D
  • 24-Bit / 96 kHz Signal Path and DSP
  • Frequency Response: 40 Hz to 21 kHz

Specifications

Monitor Type & Configuration Active 3-Way
Number of Included Monitors Single Monitor (Right Side)
Enclosure Bass-Reflex/Ported, Shielded
Total Power Output 180 W
Drivers
Tweeter 1 x 1" / 25.4 mm Soft Dome
Midrange 1 x 4" / 10.1 cm Cone
Woofer 1 x 8" / 20.3 cm Cone
Amplifiers HF: 50 W Class-D
MF: 50 W Class-D
LF: 80 W Class-D
Performance
Frequency Range 40 Hz to 21 kHz
Frequency Response 50 Hz to 19 kHz
Maximum Sound Pressure Level (SPL) 112 dB
Analogue Input Sensitivity/Gain +6 to -6 dB (Incrementally Variable)
Signal Processing
Crossover Frequency Low-Pass: 460 Hz
High-Pass: 5.5 kHz
Connectivity
Audio I/O 1 x XLR 3-Pin Balanced Input
1 x RCA Unbalanced Input
Network I/O None
USB None
Wireless None
Power
AC Input Power 90 to 264 VAC, 50/60 Hz
Power Consumption 0.5 W (Standby)
100 W (Maximum)
Colour Black
Dimensions (W x H x D) 14.5 x 9.2 x 12.9" / 369 x 234 x 328 mm
Weight 26.5 lb / 12.0 kg

In The Box

  • Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor (Right, Black)
  • Power Cord

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Dynaudio Acoustics LYD 48 3-Way Nearfield Speaker Monitor (Right, Black)
  • Manufacturer: Dynaudio
  • Model: LYD 48
  • SKU: DY-LYD-48B-R
  • RM Product #: 106222
