The Edimax 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch is designed to upgrade or expand the network with high-speed, enhanced performance while maintaining a compact form factor. It boasts outstanding performance and high efficiency, while its store and forward packet switching technology and standard IEEE 802.11p QoS feature offer improved traffic and reliable data transfer with priority of video and voice. It is ideal for network connectivity in the home, small office, small-and-Medium business and enterprise environments.

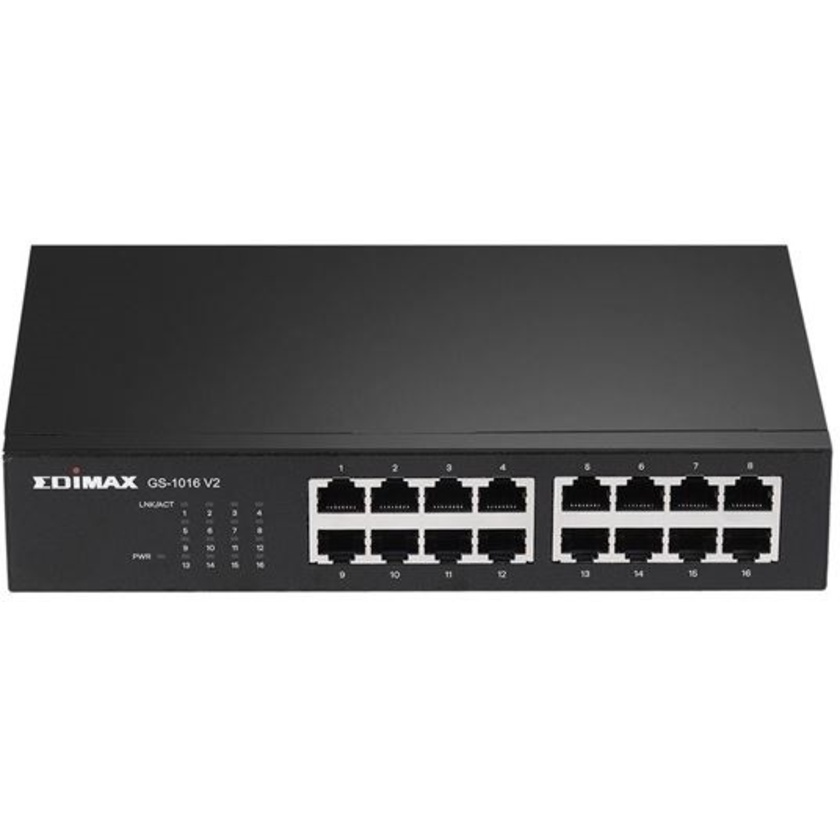

Edimax 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch
In Stock Ships in 3 - 5 working days
Our Price
$153.94
In Stock Ships in 3 - 5 working days
this item may be nonreturnable
Shipping & Availability
Ships in 3 - 5 working days.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 5 working days
Click & Collect
Features
- Equipped 16 Gigabit Ethernet ports
- Supports IEEE802.1p QoS
- Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed
- Complies with IEEE 802.3az Energy Efficient Ethernet
- No software or configuration required
Description
Specifications
| Ports | 16 x RJ-45 10/100/1000Base-T ports |
| Transmission Method | Store and forward |
| LED Indicator | Per-port: Link/Act Per unit: Power |
| Power Input | 100V240V AC, 5060Hz, internal power supply |
| Mounting | Desktop / wall-mount / rack-mount (rack-mount kit included) |
| Housing | Metal |
| Fan | Fanless |
| Dimension | 215(W) x 42(H) x 133(D) mm |
| Weight | 0.85kg |
| PERFORMANCE | |
| Switching Capacity | 32Gbps |
| MAC Address | 8K |
| Buffer Memory | 4.1Mb |
| Jumbo Frame | 10K (Bytes) |
| Filtering / Forwarding Rates | Max. 23.8Mpps 1000Mbps port – 1,488,000pps 100Mbps port – 148,800pps 10Mbps port - 14,880pps |
| OTHERS | |
| Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3p QoS (Quality of Service) IEEE 802.3x Full-duplex and flow control IEEE 802.3az Energy-efficient Ethernet |
| Environmental Condition | Operating Temperature: 32104°F (040°C) Storage Temperature: -40158°F (-4070°C) Operating Humidity: 1090% (NonCondensing) Storage Humidity: 590% (NonCondensing) |
| Certification | CE, FCC |
In The Box
- Edimax 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Edimax 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch
- Manufacturer: Edimax
- Model: GS-1016V2
- SKU: GS-1016V2
- RM Product #: 99059
