The Edimax 8 Port 10/100 Fast Ethernet PoE+ Switch with DIP Switch is designed for use in home, small or medium-sized network environments. With eight DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.

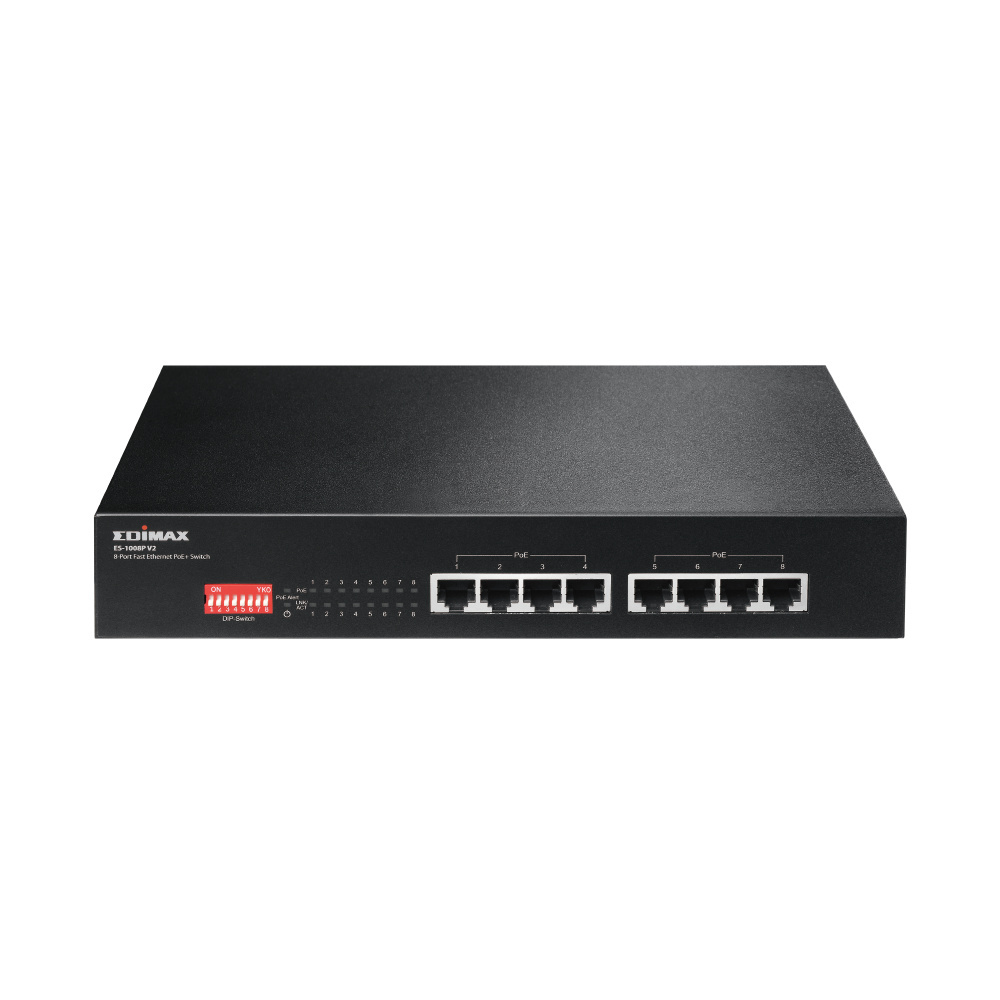

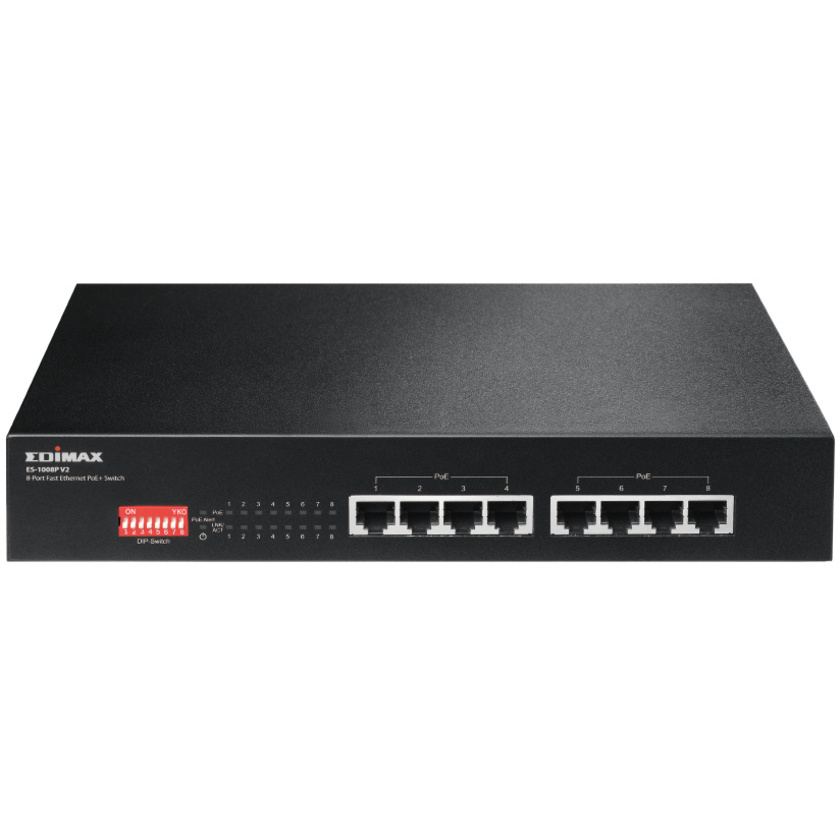

Edimax 8 Port 10/100 Fast Ethernet PoE+ Switch with DIP Switch
In stock
Ships today
Our Price
$213
In stock
Ships today
this item may be nonreturnable
Shipping & Availability
Ships today.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 4 working days
Click & Collect
Features
- Eight 10/100Mbps Fast Ethernet PoE+ ports
- IEEE 802.3af/at PoE compliant
- Up to 30W per PoE port
- Auto-detection of powered devices (PD)
- Hardware DIP switch for “Standard” and “Extend”
- Port-based VLAN and Loop Protection features
Description
Specifications
| Hardware | |
| Ports | 8x RJ45 10/100Base-T PoE+ ports |
| Transmission Method | Store and forward |
| LED Indicators | Power: Green LED LNK/ACT: Green LED (Port 1 – Port 8) PoE: Green LED (Port 1 – Port 8) PoE Alert: Green LED (PoE overload alarm) |
| Fan | Fanless |
| DIP Switch | PoE Extend, VLAN, QoS |
| Power Requirements | Input: 100V-240V AC Power Supply: 160W |
| Power Consumption | 5W |
| Dimensions (L x W x H) | 215.5mm x133mm x 42mm |
| Weight | 1605g |
| Performance | |
| Switching Capacity | 1.6G |
| MAC Address | 1K |
| Buffer Memory | 56Kb |
| Filtering/Forwarding Rates | 100Mbps port - 148,800pps 10Mbps port - 14,880pps |
| Power over Ethernet | |
| Standard | IEEE 802.3af, IEEE 802.3at |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 130W |
| Environment | |
| Temperature | Operating: 0°C ~ 40°C Storage: -40°C ~ 70°C |
| Humidity (Non-condensing) | Operating: 10% ~ 90% Storage: 5% ~ 90% |
| Standards Compliance | |
| Standards | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3x Full-duplex and flow control IEEE 802.3az Energy efficient Ethernet |
In The Box
- Edimax 8 Port 10/100 Fast Ethernet PoE+ Switch with DIP Switch
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Edimax 8 Port 10/100 Fast Ethernet PoE+ Switch with DIP Switch
- Manufacturer: Edimax
- Model: ES-1008PV2
- SKU: ES-1008PV2
- RM Product #: 99060
- Warranty: Click here for warranty terms view terms
