The Edimax GS-1008P V2 is an Eight PoE+ Port Gigabit switch designed for use in home, small or medium sized network environments. With eight DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.

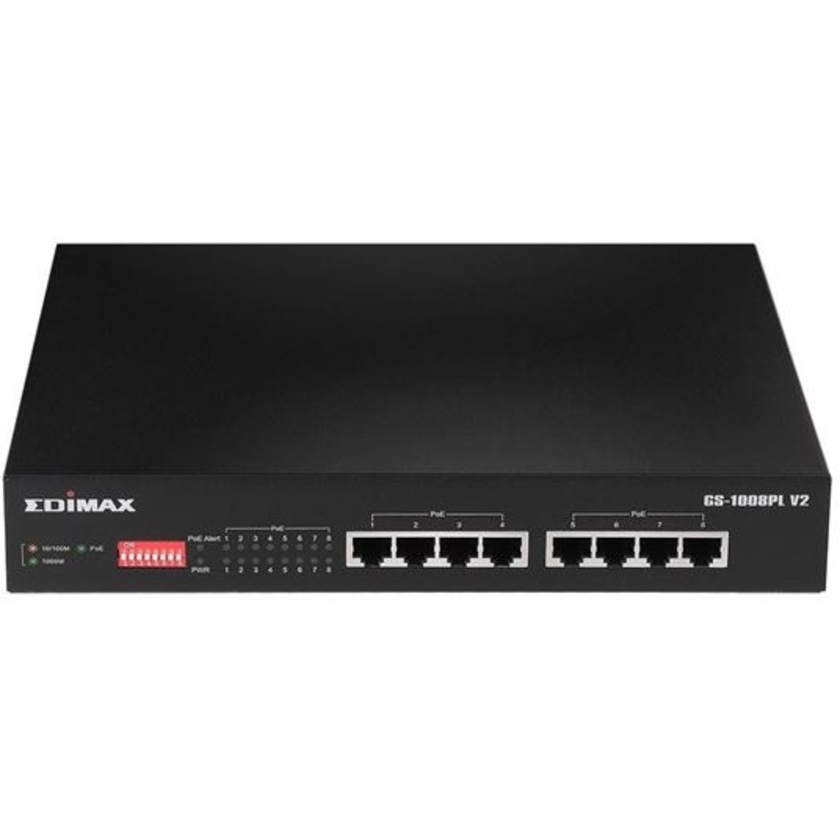

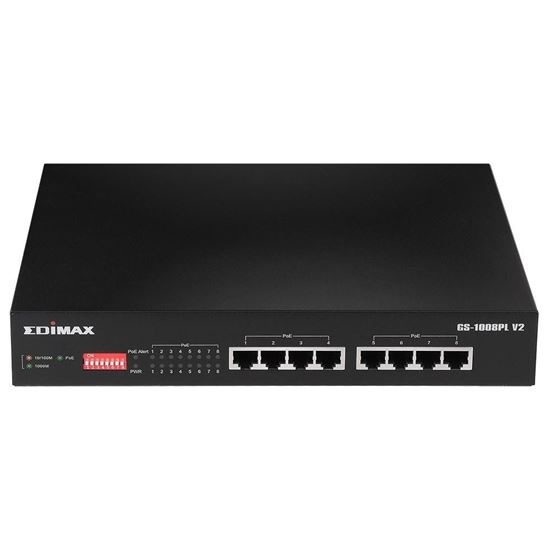

Edimax 8 Port Gigabit PoE+ Long Range Unmanaged Switch
In Stock Ships in 3 - 5 working days
Our Price
$181
In Stock Ships in 3 - 5 working days
this item may be nonreturnable
Shipping & Availability
Ships in 3 - 5 working days.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 5 working days
Click & Collect
Features
- Gigabit High-Speed PoE+
- PoE Long Range Extension
- Port-based VLAN
- Hardware QoS
- PoE Auto Detection
- Power Backfeed Protection
Description
Specifications
| Hardware | |
| Ports | 8x RJ-45 10/100/1000Base-T PoE+ ports |
| Transmission Method | Store and forward |
| LED Indicators | Power: Green LED LNK/ACT: Green LED (Port 1 – Port 8) PoE: Green LED (Port 1 – Port 8) PoE Alert: Green LED (PoE overload alarm) |
| DIP Switch | PoE Extend, VLAN, QoS |
| Power Input | 100V-240V AC, 50-60Hz, internal power supply |
| Total Power Supply | 80W |
| Mounting | Desktop / Rack-mount |
| Housing | Metal |
| Fan | Fanless |
| Dimensions | 265 (W) x 184 (D) x 44 (H) mm |
| Weight | 1609g |
| Performance | |
| Switching Capacity | 16Gbps |
| MAC Address | 4K |
| Buffer Memory | 1.5Mb |
| Jumbo Frames | 9K (Bytes) |
| Filtering / Forwarding Rates | 1000Mbps port - 1488,000pps 100Mbps port - 148,800pps 10Mbps port - 14,880pps |
| Power Over Ethernet | |
| Standard | IEEE 802.3af IEEE 802.3at |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 70W |
| Long Range | DIP switch ON to support PoE with long-range to 200 meters at 10Mbps |
| Backfeed Protection | Built-in per port |
| Others | |
| Standards | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE802.3ab 1000BASE-T IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3x Full-duplex and flow control IEEE 802.3az Energy-efficient Ethernet |
| Environmental Condition | Temperature Operating: 0°C-40°C Storage: -40°C-70°C Humidity: (Non-condensing) Operating: 10% - 90% Storage: 5°C - 90% |
| Certifications | FCC, CE, LVD |
In The Box
- Edimax 8 Port Gigabit PoE+ Long Range Unmanaged Switch
