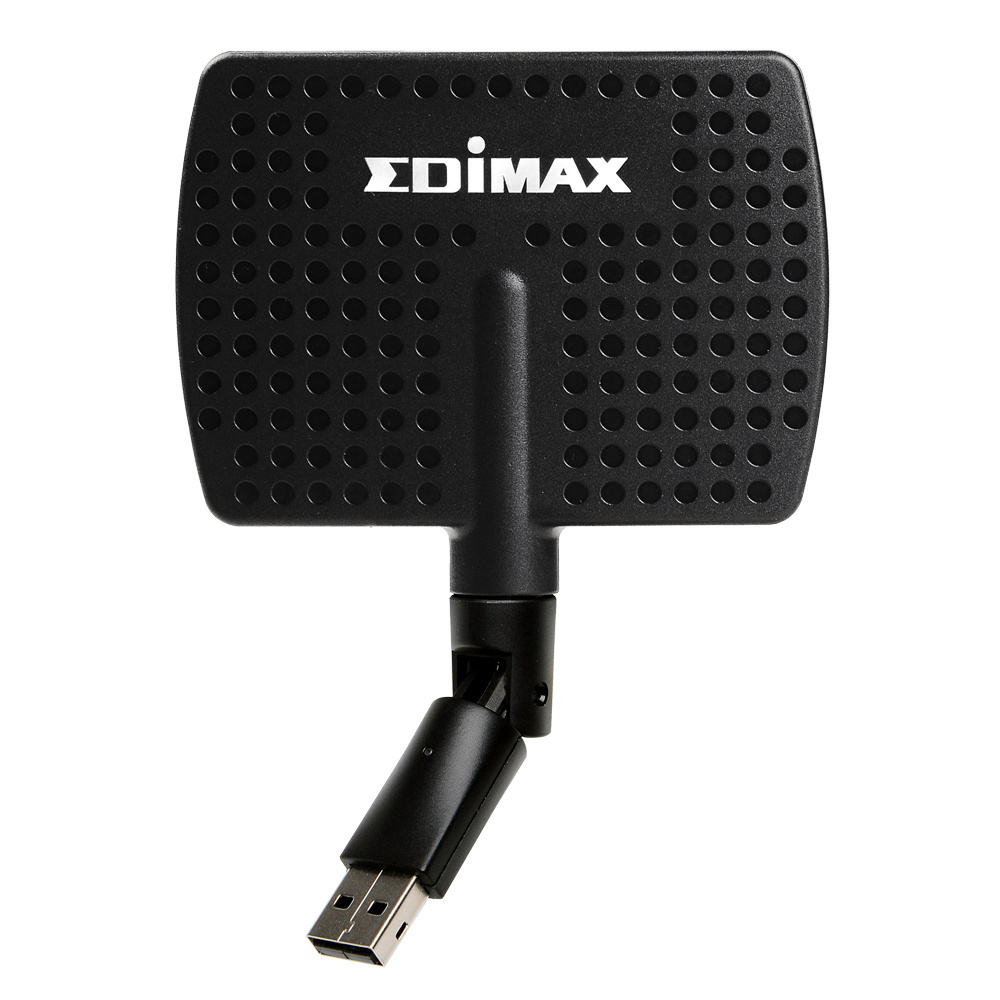

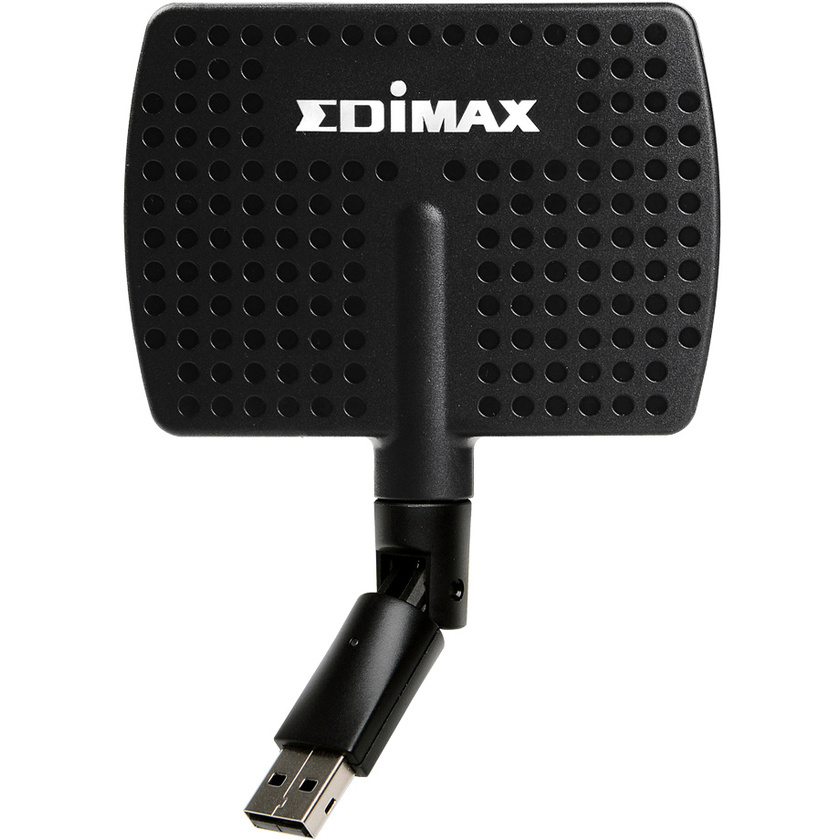

Edimax AC600 WiFi Dual-Band Directional High Gain USB Adapter

Product #99074 | SKU EW-7811DAC | Edimax
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $79.95
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • Complies with IEEE 802.11ac standard
  • Dual-band wireless connectivity for 2.4GHz or 5GHz
  • Max. Wi-Fi speeds of 150Mbps (2.4GHz) or 433Mbps (5GHz)
  • Features a hardware WPS (Wi-Fi Protected Setup) button
  • Features easy setup wizard
  • Supports Windows XP/Vista/7/8/8.1, Linux and Mac OS X drivers
  • Directional high gain antenna, 5dBi (2.4GHz) and 7dBi(5GHz)

Description

Next Generation WiFi Standard

The Edimax AC600 WiFi Dual-Band Directional High Gain USB Adapter is the next generation of WiFi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 433Mbps at 5GHz - almost three times as fast as 802.11n. Upgrade PC’s and notebooks to super high-speed 802.11ac WiFi and enjoy streaming video and data.

Dual-Band Connectivity

Enjoy better performance and greater flexibility for your WiFi devices, using dual-band connectivity. The EW-7811DAC provides connectivity for the 2.4GHz band at speeds of 150Mbps or 5Ghz band at speeds of 433Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

5dBi/7dBi Directional High Gain Antenna

The EW-7811UAC Directional High Gain Antenna, 5dBi (2.4GHz) and 7dBi(5GHz), provides high performance and long-distance connections to your wireless network.

Specifications

Specifications
Hardware * 1x USB 2.0 Type A
* 1x Hardware WPS Button
* 1x Link/Activity LED
Standards * 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
* 5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n
Frequency Band * 2.4000 - 2.4835GHz (subject to local regulations)
* 5.150 - 5.825GHz (subject to local regulations)
Output Power * 2.4GHz
11b (11Mbps): 17dBm±1.5dBm
11g (54Mbps): 15dBm±1.5dBm
11n (20MHz, MCS7): 14dBm±1.5dBm
11n (40MHz, MCS7): 14dBm±1.5dBm
* 5GHz
11a (54Mbps): 14dBm±1.5dBm
11n (20MHz, MCS7): 13dBm±1.5dBm
11n (40MHz, MCS7): 13dBm±1.5dBm
11ac (80MHz, MCS9): 12dBm±1.5dBm
Installation * Multi-Language easy setup wizard
* Hardware WPS Button for Easy Wireless Connections
Operating Range * 11a: 6/9/12/24/36/48/54Mbps
* 11b: 1/2/5.5/11Mbps
* 11g: 6/9/12/24/36/48/54Mbps
* 11n (20MHz): MCS0-07 (up to 72Mbps)
* 11n (40MHz): MCS0-07 (up to 144Mbps)
* 11ac (80MHz): MCS0-09 (up to 433Mbps)
LED Link/Activity
Security * WEP 64/128-bit, WPA, WPA2, 802.1x
* Hardware & Software WPS Configuration
Temperature & Humidity * Max. 95% (non-condensing)
* 32°F ~ 104°F (0°C ~ 40°C)
Dimensions & Weight * 132(H) x 90(W) x 15(D)mm
* 36g
Certifications CE/FCC
Accessories 1x USB Cradle with 1.2m cable

In The Box

  • Edimax AC600 WiFi Dual-Band Directional High Gain USB Adapter
